SP-5004Q

1x4 HDMI 2.1 Splitter with Built-in& User Adjustable EDID Management and Audio Extractor

INPUTS

1⨯ HDMI 2.1

OUTPUTS

4⨯ HDMI 2.1
1⨯ Stereo (audio extraction)
1⨯ micro USB-B (fw update)

FEATURES

Distributes 4K HDMI signals from one HDMI source to four displays
Supports HDR, HDMI 2.1, HDCP 2.3, 4K2K@60Hz (4:4:4) and 7.1ch audio
Auto downscaling from 8K to 4K or 4K to 1080P
Supports audio extraction via 3.5mm Stereo
Built-in EDID management and F/W update

EX-57CLZ-E

4K-HDR HDMI 2.0 Extender over Single CAT6 with Bi-directional IR, PoC & eARC

INPUTS

⎖ TX
1⨯ HDMI 2.0 (source)
1⨯ IR Receiver (3.5mm jack)
1⨯ USB-C (fw update)
⎖ RX
1⨯ IR Receiver (3.5mm jack)
1⨯ RJ45
1⨯ USB-C (fw update)

OUTPUTS

⎖ TX
1⨯ HDMI 2.0 (loopout)
1⨯ IR Blaster (3.5mm jack)
1⨯ RJ45
⎖ RX
1⨯ HDMI 2.0 (sink)
1⨯ IR Blaster (3.5mm jack)

FEATURES

HDMI 2.0
HDCP 2.2 & 1.4
Up to 18Gbps Bandwidth
Up to 110m 4K@60 4:4:4
Bi-directional IR & pass-through

SP-5004CLZ

2x4 4K-HDR HDMI 2.0 Switch Splitter over Single CAT6 with Bi-directional IR & PoC

INPUTS

2⨯ HDMI 2.0
5⨯ Stereo (3.5mm jack)
1⨯ Toslink
1⨯ RJ45
5⨯ IR (3.5mm jack)
1⨯ USB-C (console)

OUTPUTS

4⨯ HDMI 2.0
4⨯ RJ45
1⨯ Toslink
1⨯ IR (3.5mm jack)

SW-5004CZ

4x1 HDMI 2.0a & USB-C Switch with IR & 10W Power Delivery

INPUTS

3⨯ HDMI 2.0
1⨯ USB-C (DP Alt. Mode)

OUTPUTS

1⨯ HDMI 2.0

FEATURES

Route 3 HDMI + 1 USB-C (DP Alt. Mode)sources to One Display
Intelligent Auto-Switching
Supports IR & Push-buttons control. Clear Illuminate LED digit-numbering
Latest HDMI 2.0 Switch

SW-5004Q

4x1 HDMI 2.1 Switch

INPUTS

4⨯ HDMI 2.1
1⨯ micro USB-B (power)

OUTPUTS

1⨯ HDMI 2.1

FEATURES

Route 4 HDMI 2.1 + 1 HDMI 2.1 sources to One Display
Intelligent Auto-Switching
Supports IR & Touch control. Clear Illuminate LED digit-numbering
Latest HDMI 2.1 Switch

EX-57CLZ

4K-HDR HDMI 2.0 Extender over Single CAT6 with Bi-directional IR & PoC

INPUTS

⎖ TX
1⨯ HDMI 2.0 (source)
1⨯ IR Receiver (3.5mm jack)
1⨯ USB-C (fw update)
⎖ RX
1⨯ IR Receiver (3.5mm jack)
1⨯ RJ45
1⨯ USB-C (fw update)

OUTPUTS

⎖ TX
1⨯ HDMI 2.0 (loopout)
1⨯ IR Blaster (3.5mm jack)
1⨯ RJ45
⎖ RX
1⨯ HDMI 2.0 (sink)
1⨯ IR Blaster (3.5mm jack)

FEATURES

〉HDMI 2.0
〉HDCP 2.2 & 1.4
〉Up to 18Gbps Bandwidth
〉Up to 110m 4K@60 4:4:4
〉Bi-directional IR & pass-through

SP-5002Q

1x2 HDMI 2.1 Splitter with Built-in& User Adjustable EDID Management and Audio Extractor

INPUTS

1⨯ HDMI 2.0
1⨯ micro USB-B (control+fw update)

OUTPUTS

2⨯ HDMI 2.0
1⨯ Stereo (3.5mm jack)
1⨯ S/PDIF (toslink)

FEATURES

Distributes 8K HDMI signals from one HDMI source to two displays
Supports HDR, HDMI 2.1, HDCP 2.3, @60Hz (4:4:4) and 7.1ch audio
Supports audio extraction via Toslink & stereodownscaling to fit optimum output
Supports resolution downscaling from 8K to 4K & 4K to 1080P

EX-57V3K-M

HDMI 2.0 Extender over Single Cat.6A with HDBaseT 3.0, RS-232, Bi-directional IR, USB 2.0 & PoC

INPUTS

⎖ TX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)
1⨯ USB2.0-A
⎖ RX
1⨯ HDBT port (RJ-45)
1⨯ IR (3.5mm jack)
1⨯ USB2.0-A

OUTPUTS

⎖ TX
1⨯ HDBT port (RJ-45)
1⨯ HDMI 2.0 (loopout)
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)

FEATURES

4K@60-70m／1080p@60-100m
Up to 18Gbps Bandwidth
HDR, HDCP 2.2 compliance
Bi-directional PoC Power (TX⇆RX)
Bi-directional IR & RS232 Extension

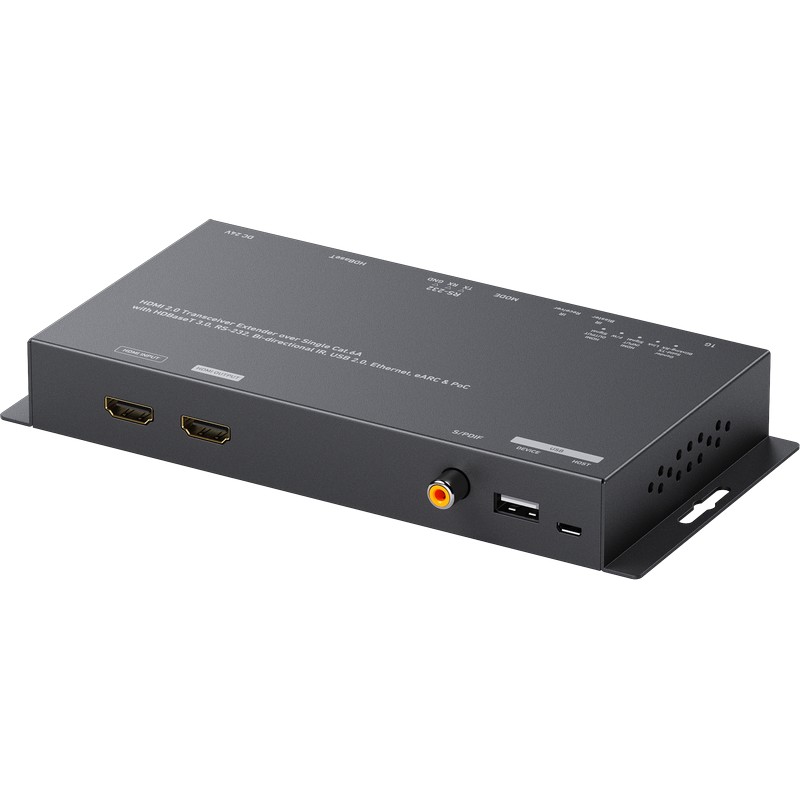

EX-57V3K

HDMI 2.0 Transceiver Extender over Single Cat.6A with HDBaseT 3.0, RS-232, Bi-directional IR, USB 2.

INPUTS

⎖ Transceiver
1⨯ HDMI 2.0
1⨯ Stereo (3.5mm jack)
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)
1⨯ ETH (lan port)

OUTPUTS

⎖ Transceiver
1⨯ HDBT port
1⨯ HDMI 2.0 (loopout)
1⨯ Stereo (3.5mm jack)
1⨯ COAXIAL (S/PDIF)
1⨯ IR (3.5mm jack)
1⨯ micro USB-B (console)

FEATURES

4K@60-70m／1080p@60-100m
Up to 18Gbps Bandwidth
HDR, HDCP 2.2 compliance
Bi-directional PoC Power (TX⇆RX)
Bi-directional IR & RS232 Extension

EX-54RZ2

HDMI 2.0 Extender over Single Coax with Bi-directional IR

INPUTS

⎖ TX
1⨯ HDMI 1.4
1⨯ IR (3.5mm jack)
1⨯ micro USB-B (fw update)
⎖ RX
1⨯ Coax (75-ohm)
1⨯ IR (3.5mm jack)
1⨯ micro USB-B (fw update)

OUTPUTS

⎖ TX
1⨯ Coax (75-ohm)
1⨯ IR (3.5mm jack)
⎖
1⨯ HDMI 1.4
1⨯ IR (3.5mm jack)

SP-5002IZM-PT

Compact 2-Port HDMI 2.0 Splitter with Auto Scaling

INPUTS

1⨯ HDMI 2.0
1⨯ micro USB-B (power+fw update)

OUTPUTS

2⨯ HDMI 2.0

SW-5005RS

5-Port True 4K HDMI Switch

INPUTS

4⨯ HDMI 2.0
1⨯ micro USB-B (power)

OUTPUTS

1⨯ HDMI 2.0

FEATURES

Route 5 HDMI sources to One Display
Intelligent Auto-Switching
Touch control with beep sound
Clear Illuminate LED digit-numbering
Latest HDMI 2.0 Switch

EX-57VJZ-EA

HDMI 2.0 extender over single cat.X with HDBaseT (A/V and bi-directional IR), ARC/eARC & POC

INPUTS

⎖ TX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)
⎖ RX
1⨯ HDBT port
1⨯ IR (3.5mm jack)

OUTPUTS

⎖ TX
1⨯ HDBT port
1⨯ IR (3.5mm jack)
1⨯ COAXIAL (ARC)
⎖ RX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ COAXIAL (ARC)
1⨯ RS232 (term. blk.)

FEATURES

4K@60-40m／1080p@60-70m
Up to 18Gbps Bandwidth
Bi-directional PoC Power (TX⇆RX)
Bi-directional IR & RS232 Extension
Built-in Audio Return Channel (ARC)

EX-57V2KS

HDMI 2.0 Extender over Single Cat.X with HDBaseT, RS-232, Bi-directional IR, Ethernet & PoC

INPUTS

⎖ TX
1⨯ HDMI 2.0
1⨯ Stereo (3.5mm jack)
1⨯ IR (3.5mm jack)
1⨯ RS232 (DB9)
1⨯ USB2.0-A (host)
2⨯ ETH (lan port)
⎖ RX
1⨯ HDBT port
1⨯ IR (3.5mm jack)
2⨯ ETH (lan port)

OUTPUTS

⎖ TX
1⨯ HDBT port
1⨯ IR (3.5mm jack)
1⨯ COAXIAL (S/PDIF)
⎖ RX
1⨯ HDMI 2.0
1⨯ Stereo (3.5mm jack)
1⨯ COAXIAL (S/PDIF)
1⨯ IR (3.5mm jack)
1⨯ RS232 (DB9)
1⨯ USB2.0-A (device)

FEATURES

4K@60-70m／1080p@60-100m
Up to 18Gbps Bandwidth
Bi-directional PoC Power (TX⇆RX)
Bi-directional IR & RS232 Extension

EX-57V2K-E

4K-HDR HDMI Extender over Single Cat.X with HDBaseT

INPUTS

⎖ TX
1⨯ HDMI 2.0
1⨯ Stereo (3.5mm jack)
1⨯ IR (3.5mm jack)
1⨯ RS232 (DB9)
1⨯ USB2.0-A (host)
⎖ RX
1⨯ HDBT port
1⨯ IR (3.5mm jack)
1⨯ USB2.0-A (host)

OUTPUTS

⎖ TX
1⨯ HDBT port
1⨯ IR (3.5mm jack)
1⨯ USB2.0-microB (device)
⎖ RX
1⨯ HDMI 2.0
1⨯ Stereo (3.5mm jack)
1⨯ COAXIAL (S/PDIF)
1⨯ IR (3.5mm jack)
1⨯ RS232 (DB9)
1⨯ USB2.0-microB (device)

FEATURES

4K@60-70m／1080p@60-100m
Up to 18Gbps Bandwidth
Bi-directional PoC Power (TX⇆RX)
USB, Ethernet & control signal extension

SP-5012V

1x2 HDMI Splitter over Cat.X with HDBaseT-Lite, 4K2K, IR & RS-232

INPUTS

1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (DB9)

OUTPUTS

1⨯ HDMI 2.0
1⨯ HDBT port
1⨯ IR (3.5mm jack)

FEATURES

1 In 2 Out HDBT Distributor
HDMI 1.4 & HDCP 2.2
Up to 10.2Gbps Bandwidth

EX-57VAC-100

4K-HDR HDMI Extender over Single Cat.X with HDBaseT, RS-232, Bi-directional IR & PoC

INPUTS

⎖ TX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)
⎖ RX
1⨯ HDBT port
1⨯ IR (3.5mm jack)

OUTPUTS

⎖ TX
1⨯ HDBT port
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)

FEATURES

4K@60-70m／1080p@60-100m
Up to 18Gbps Bandwidth
Bi-directional PoC Power (TX⇆RX)
Bi-directional IR & RS232 Extension

SP-5022V

1x2 HDMI Splitter/Repeater over Cat.X with HDBaseT-Lite, 4K2K & local Out

INPUTS

1⨯ HDBT port
1⨯ IR (3.5mm jack)

OUTPUTS

1⨯ HDBT port
1⨯ HDMI 2.0
1⨯ Stereo (3.5mm jack)
1⨯ IR (3.5mm jack)
1⨯ RS232 (DB9)

FEATURES

1 In 4 Out HDBT Distributor
HDMI 1.4 & HDCP 2.2
Up to 10.2Gbps Bandwidth

EX-57VAC

4K-HDR HDMI Extender over Single Cat.X with HDBaseT-Lite, RS-232, Bi-directional IR & PoC

INPUTS

⎖ TX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)
⎖ RX
1⨯ HDBT port
1⨯ IR (3.5mm jack)

OUTPUTS

⎖ TX
1⨯ HDBT port
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)

FEATURES

4K@60-35m／1080p@60-60m
Up to 18Gbps Bandwidth
Bi-directional PoC Power (TX⇆RX)
Bi-directional IR & RS232 Extension

SP-5012

1x2 HDMI splitter over single cat.X

INPUTS

1⨯ HDMI 1.4

OUTPUTS

1⨯ HDMI 1.4 (loopout)
1⨯ Stereo (3.5mm jack)
1⨯ RJ45

FEATURES

〉HDMI 1.3
〉HDCP 1.1
〉Up to 6.75Gbps Bandwidth
〉Up to 1080p60@24-bit color depth

EX-57VARS

Enhanced HDMI Extender over Single Cat.X with HDBaseT-Lite, RS-232, Bi-directional IR & PoC

INPUTS

⎖ TX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)
⎖ RX
1⨯ IR (3.5mm jack)

OUTPUTS

⎖ TX
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)

FEATURES

4K@30-35m／1080p@60-60m
Up to 10.2Gbps Bandwidth
Bi-directional PoC Power (TX⇆RX)
Bi-directional IR & RS232 Extension

SP-5022

1x2 HDMI splitter/repeater over single cat.X

INPUTS

1⨯ RJ45

OUTPUTS

1⨯ RJ45
1⨯ Stereo (3.5mm jack)
1⨯ HDMI 1.4

FEATURES

〉HDMI 1.3
〉HDCP 1.1
〉Up to 6.75Gbps Bandwidth
〉Up to 1080p60@24-bit color depth

MA-5488V2

8x8 HDBaseT Lite matrix with PoC, HDCP2.2 & 4K2K60 (YUV420)

INPUTS

8⨯ HDMI 2.0
9⨯ IR (3.5mm jack)
1⨯ RS232 (console)
1⨯ ETH (console)

OUTPUTS

8⨯ HDMI 2.0
8⨯ HDBT port
9⨯ IR (3.5mm jack)

FEATURES

HDMI 1.4
HDCP 2.2 (backward compatible)
Up to 10.2Gbps Bandwidth
PoC on HDBT outputs
Control—IR/RS232/Ethernet

MA-5288V2

8x8 HDBaseT Lite matrix with PoC

INPUTS

8⨯ HDMI 2.0
9⨯ IR (3.5mm jack)
1⨯ RS232 (console)
1⨯ ETH (console)

OUTPUTS

8⨯ HDMI 2.0
8⨯ HDBT port
9⨯ IR (3.5mm jack)

FEATURES

HDMI 1.4
HDCP 2.2 (backward compatible)
Up to 10.2Gbps Bandwidth
PoC on HDBT outputs
Control—IR/RS232/Ethernet

EX-57VAC-100E-A

4K-HDR HDMI Extender over Single Cat.X with HDBaseT, RS-232, Bi-directional IR, Ethernet, PoC & ARC

INPUTS

⎖ TX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)
1⨯ ETH (lan port)
⎖ RX
1⨯ HDBT port
1⨯ IR (3.5mm jack)
1⨯ ETH (lan port)

OUTPUTS

⎖ TX
1⨯ HDBT port
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)

FEATURES

HDMI 2.0(a/b) w/HDR
HDCP 2.2 (backward compatible)
Up to18Gbps Bandwidth
Up to 4K60 4:4:4 Support

MA-5244V2

4x4 HDBaseT Lite matrix with PoC

INPUTS

4⨯ HDMI 2.0
5⨯ IR (3.5mm jack)
1⨯ RS232 (console)
1⨯ ETH (console)

OUTPUTS

4⨯ HDMI 2.0
4⨯ HDBT port
5⨯ IR (3.5mm jack)

FEATURES

HDMI 1.4
HDCP 2.2 (backward compatible)
Up to 10.2Gbps Bandwidth
PoC on HDBT outputs
Control—IR/RS232/Ethernet

SW-5004IZ

4x1 HDMI 2.0b Switcher

INPUTS

4⨯ HDMI 2.0

OUTPUTS

1⨯ HDMI 2.0

CV-55PZ-G

HDMI 2.0a Retimer/Repeater

INPUTS

1⨯ HDMI 2.0

OUTPUTS

1⨯ HDMI 2.0

FEATURES

〉HDMI 1.3
〉HDCP 1.1
〉Up to 6.75Gbps Bandwidth
〉Up to 1080p60@24-bit color depth

MA-5444V2

4x4 HDBaseT Lite matrix with PoC, HDCP2.2 & 4K2K60 (YUV420)

INPUTS

4⨯ HDMI 2.0
5⨯ IR (3.5mm jack)
1⨯ RS232 (console)
1⨯ ETH (console)

OUTPUTS

4⨯ HDMI 2.0
4⨯ HDBT port
5⨯ IR (3.5mm jack)

FEATURES

HDMI 1.4
HDCP 2.2 (backward compatible)
Up to 10.2Gbps Bandwidth
PoC on HDBT outputs
Control—IR/RS232/Ethernet

CV-54G

HDMI extender over single coax

INPUTS

⎖ TX
1⨯ HDMI 1.4
⎖ RX
1⨯ Coax (75-ohm)

OUTPUTS

⎖ TX
1⨯ Coax (75-ohm)
⎖ RX
1⨯ HDMI 1.4

FEATURES

〉HDMI 1.3
〉HDCP 1.1
〉Up to 6.75Gbps Bandwidth
〉Up to 1080p60@24-bit color depth

MA-5544V

4K-HDR 4x4 HDBaseT Lite matrix with PoC

INPUTS

4⨯ HDMI 2.0
5⨯ IR (3.5mm jack)
1⨯ RS232 (console)
1⨯ ETH (console)

OUTPUTS

4⨯ HDBT port
1⨯ COAXIAL (S/PDIF)
2⨯ Stereo (3.5mm jack)
5⨯ IR (3.5mm jack)

FEATURES

HDMI 2.0 w/HDR & HDCP 2.2
Up to 18Gbps Bandwidth
Built-in Audio Extraction
PoC on HDBT outputs
Control—IR/RS232/Ethernet

SP-5004VZC

1x4 4K-HDR HDMI Splitter over Single Cat.x with HDBaseT-Lite, IR, RS-232, PoC & Loopout

INPUTS

1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)

OUTPUTS

2⨯ HDMI 2.0
4⨯ HDBT port
1⨯ IR (3.5mm jack)

FEATURES

1 In 4 Out HDBT Distributor
HDMI 2.0 w/HDR & HDCP 2.2
Up to 10.2Gbps Bandwidth

SW-5004RZ

4x1 HDMI 2.0a Switch with ARC support and Multi Control

INPUTS

4⨯ HDMI 2.0
1⨯ ETH (console)

OUTPUTS

1⨯ HDMI 2.0
1⨯ Stereo (3.5mm-ARC)
1⨯ S/PDIF (coaxial-ARC)

CV-55AZ

HDMI 2.0a Repeater

INPUTS

1⨯ HDMI 2.0

OUTPUTS

1⨯ HDMI 2.0

FEATURES

〉HDMI 1.3
〉HDCP 1.1
〉Up to 6.75Gbps Bandwidth
〉Up to 1080p60@24-bit color depth

CV-54R

HDMI extender over single coax with 2-way IR

INPUTS

⎖ TX
1⨯ HDMI 1.4
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ Coax (75-ohm)
1⨯ IR (3.5mm jack)

OUTPUTS

⎖ TX
1⨯ Coax (75-ohm)
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ HDMI 1.4
1⨯ IR (3.5mm jack)

FEATURES

〉HDMI 1.3
〉HDCP 1.1
〉Up to 6.75Gbps Bandwidth
〉Up to 1080p60@24-bit color depth
〉Bi-directional IR & pass-through

MA-5588V

4K-HDR 8x8 HDBaseT Lite matrix with PoC

INPUTS

8⨯ HDMI 2.0
9⨯ IR (3.5mm jack)
1⨯ RS232 (console)
1⨯ ETH (console)

OUTPUTS

2⨯ HDMI 2.0
8⨯ HDBT port
2⨯ COAXIAL (S/PDIF)
4⨯ Stereo (3.5mm jack)
9⨯ IR (3.5mm jack)

FEATURES

HDMI 2.0 w/HDR & HDCP 2.2
Up to 18Gbps Bandwidth
Built-in Audio Extraction
PoC on HDBT outputs
Control—IR/RS232/Ethernet

CV-57KJ2

HDMI extender over single cat.X with bi-directional IR, and Auto EDID learning

INPUTS

⎖ TX
1⨯ HDMI 1.4
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ RJ45
1⨯ IR (3.5mm jack)

OUTPUTS

⎖ TX
1⨯ RJ45
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ HDMI 1.4
1⨯ IR (3.5mm jack)

FEATURES

〉HDMI 1.3
〉HDCP 1.1
〉Up to 6.75Gbps Bandwidth
〉Up to 1080p60@24-bit color depth
〉Bi-directional IR & pass-through

MA-5288C

8x8 HDMI Deep Color & Full 3D over Single Cat.X Matrix

INPUTS

8⨯ HDMI 1.4
1⨯ IR (3.5mm jack)
1⨯ RS232 (console)
1⨯ ETH (console)

OUTPUTS

8⨯ RJ45
9⨯ IR (3.5mm jack)

FEATURES

〉HDMI 1.3
〉HDCP 1.1
〉Up to 6.75Gbps Bandwidth
〉Up to 1080p60@24-bit color depth
〉Bi-directional IR & pass-through

SP-5002VZC

1x2 4K-HDR HDMI Splitter over Single Cat.x with HDBaseT-Lite, IR, RS-232, PoC & Loopout

INPUTS

1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)

OUTPUTS

2⨯ HDMI 2.0
2⨯ HDBT port
1⨯ IR (3.5mm jack)

FEATURES

1 In 2 Out HDBT Distributor
HDMI 2.0 w/HDR & HDCP 2.2
Up to 10.2Gbps Bandwidth

CV-55PZ

HDMI 2.0a Retimer/Repeater

INPUTS

1⨯ HDMI 2.0

OUTPUTS

1⨯ HDMI 2.0

FEATURES

〉HDMI 1.3
〉HDCP 1.1
〉Up to 6.75Gbps Bandwidth
〉Up to 1080p60@24-bit color depth

SP-5002IZM-DA

1x2 HDMI 2.0a Splitter with Built-in& User Adjustable EDID Management and Audio Extractor

INPUTS

1⨯ HDMI 2.0

OUTPUTS

2⨯ HDMI 2.0
1⨯ Stereo (3.5mm jack)
1⨯ S/PDIF (toslink)

SP-5004IZM-DA

1x4 HDMI 2.0a Splitter with Built-in& User Adjustable EDID Management and Audio Extractor

INPUTS

1⨯ HDMI 2.0

OUTPUTS

4⨯ HDMI 2.0
1⨯ Stereo (3.5mm jack)
1⨯ S/PDIF (toslink)

SP-5002IZM-D

1x2 HDMI 2.0a Splitter with Built-in& User Adjustable EDID Management and Audio Extractor

INPUTS

1⨯ HDMI 2.0

OUTPUTS

2⨯ HDMI 2.0
1⨯ S/PDIF (coaxial)
1⨯ S/PDIF (toslink)

SP-5004IZM-D

1x4 HDMI 2.0a Splitter with Built-in& User Adjustable EDID Management and Audio Extractor

INPUTS

1⨯ HDMI 2.0

OUTPUTS

4⨯ HDMI 2.0
1⨯ S/PDIF (coaxial)
1⨯ S/PDIF (toslink)

SP-5004IZM

1x4 HDMI 2.0a Splitter with Built-in& User Adjustable EDID Management

INPUTS

1⨯ HDMI 2.0

OUTPUTS

4⨯ HDMI 2.0

SP-5002IZM

1x2 HDMI 2.0a Splitter with Built-in& User Adjustable EDID Management

INPUTS

1⨯ HDMI 2.0

OUTPUTS

2⨯ HDMI 2.0

SP-5008IZ

1x8 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management

INPUTS

1⨯ HDMI 2.0

OUTPUTS

8⨯ HDMI 2.0

SP-5004IZ

1x4 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management

INPUTS

1⨯ HDMI 2.0

OUTPUTS

4⨯ HDMI 2.0

EX-57VJ

HDMI Extender over Single Cat.X with HDBaseT-Lite, Bi-directional IR & POC

INPUTS

⎖ TX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ HDBT port
1⨯ IR (3.5mm jack)

OUTPUTS

⎖ TX
1⨯ HDBT port
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)

FEATURES

4K@30-35m／1080p@60-60m
Up to 10.2Gbps Bandwidth
Bi-directional PoC Power (TX⇆RX)
Bi-directional IR Extension

SP-5002IZ

1x2 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management

INPUTS

1⨯ HDMI 2.0

OUTPUTS

2⨯ HDMI 2.0

EX-57VJ-A

HDMI Extender over Single Cat.X with HDBaseT-Lite, Bi-directional IR, POC & ARC

INPUTS

⎖ TX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ HDBT port
1⨯ IR (3.5mm jack)

OUTPUTS

⎖ TX
1⨯ HDBT port
1⨯ IR (3.5mm jack)
1⨯ COAXIAL (ARC)
⎖ RX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ COAXIAL (ARC)

FEATURES

4K@30-35m／1080p@60-60m
Up to 10.2Gbps Bandwidth
Bi-directional PoC Power (TX⇆RX)
Bi-directional IR Extension
Built-in Audio Return Channel (ARC)

EX-57VJZ

4K-HDR HDMI Extender over Single Cat.X with HDBaseT-Lite, RS-232, Bi-directional IR & PoC

INPUTS

⎖ TX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)
⎖ RX
1⨯ HDBT port
1⨯ IR (3.5mm jack)

OUTPUTS

⎖ TX
1⨯ HDBT port
1⨯ IR (3.5mm jack)
⎖ RX
1⨯ HDMI 2.0
1⨯ IR (3.5mm jack)
1⨯ RS232 (term. blk.)

FEATURES

4K@60-35m／1080p@60-60m
Up to 18Gbps Bandwidth
Bi-directional PoC Power (TX⇆RX)
Bi-directional IR & RS232 Extension

MA-5544AM-E

4x4 HDMI 2.0 Matrix with Quad-Viewer & Video Wall Function

INPUTS

4⨯ HDMI 2.0
1⨯ S/PDIF (coaxial)
1⨯ USB-A (fw update)
1⨯ micro USB-B (console)

OUTPUTS

4⨯ HDMI 2.0
1⨯ S/PDIF (coaxial)
1⨯ Stereo (3.5mm jack)

FEATURES

HDMI 2.0(a/b) w/HDR
Supports Matrix, Quad-Viewer & Video Wall
Up to18Gbps Bandwidth
Supports PIP, PBP, POP, full screen & quad-view display
Video Resolution up to 4K2K@60Hz with 10bit 4:2:0, HDR, HDR10, HDR10+, Dolby Vision passthrough

MA-5543B

4X3 4K Matrix with Audio Extractor, HDR to SDR Conversion and Wireless BYOD

INPUTS

3⨯ HDMI 2.0
1⨯ USB-C
1⨯ ETH (console)
1⨯ micro USB-B (f/w&console)

OUTPUTS

3⨯ HDMI 2.0
1⨯ S/PDIF (toslink)
1⨯ Stereo (3.5mm jack)

FEATURES

HDMI2.0b compliant
Supports 2x HDMI, 1x USB-C/HDMI(alternative), 1x wireless BYOD inputs
Supports 4K2K@60 4:4:4 8bits
Supports HDR, which is 4K2K@60 4:2:0 10bits
HDCP 2.2 and 1.4 compliant
Wide frequency range: 25MHz~600MHz
Video bandwidth: 18Gbps
Supports resolution downscaling from 4K2K to 1080P* on output 3
Supports HDR to SDR conversion on output 3
Supports audio extraction via stereo & Toslink on output 3
Supports wireless BYOD2 (Bring Your Own Device) capability via AirPlay and Miracast3
Supports default EDID and EDID learning from display
Supports xvYCC, x.v.Color & Deep Color
Allows any source to be displayed on multiple displays at the same time
Allows any display to view any source at any time
Micro-USB firmware update for expanding compatibility
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
The matrix switcher can switch every output channels from any HDMI inputs by Push button, IR remote control, IP control, web control
Easy installation with rack-mounting
Fast response time – 6~8 seconds for channel switch
