    SP-5002IZM-PT

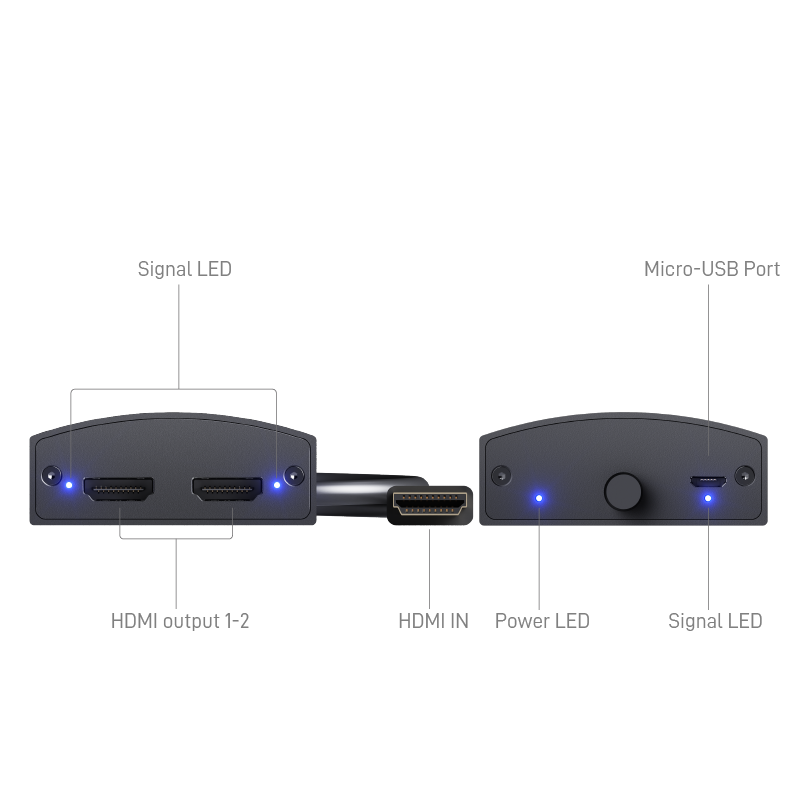

    Compact 2-Port HDMI 2.0 Splitter with Auto Scaling
    • HDMI2.0a compliant
    • Supports 4K2K@60 4:4:4 8bits
    • Supports HDR , which is 4K2K@60 4:2:0 10bits
    • HDCP 2.2 and 1.4 compliant
    • Wide frequency range: 25MHz~600MHz
    • Video bandwidth: 18Gbps
    • Supports resolution downscaling from 4K2K to 1080P
    • Supports default EDID and EDID learning from display
    • Supports xvYCC, x.v.Color& Deep Color
    • Micro-USB firmware update for expanding compatibility
    • Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
    • Easy installation
    Overview
    The SP-5002IZM-PT Compact 2-Port HDMI 2.0 Splitter with Auto Scaling provides the most cost effective and advanced HDMI splitter solution in the market, by which the high definition video and high quality audio can be transmitted to 2 different locations without losing any quality. SP-5002IZM-PT also supports HDR and the true 4K2K video! With built-in USB firmware update mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed. With the upmost HDR/4K2K@60 4:4:4 8bits and high definition audio support, SP-5002IZM-PT is suitable for high quality HDMI broadcasting, gaming and meeting applications!
    SPECIFICATIONS
    Technical
    • HDMI Compliance

    • 2.0

    • HDCP Compliance

    • 2.2／1.4

    • Max. Data Rate

    • 18 Gbps

    • Max. Resolution

    • 4K2K@60 (4:4:4—8bits)
      4K2K@60 (4:2:0—10bits)

    • HDR

    • 4:2:0|4:2:2|4:4:4—10 or 12bits／HDR10; HDR10+; Dolby Vision; HLG

    • Audio Support

    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio

    • CEC control

    • Pass through

    • EDID Selection

    • 4 options

    • ESD protection

    • 8 KV—Contact Discharge
      15KV—Air Discharge

    Mechanical
    • Housing Design

    • Aluminum

    • Casing Style

    • Portable

    • Power Connection

    • Micro-USB Port

    • Power Supply

    • 5V DC, 1A

    • Power Consumption

    • 3 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    • 190g (0.4 lbs)

    • Package Weight

    • 410g (0.9 lbs)

    • Certifications

    • CE, FCC, RoHS
