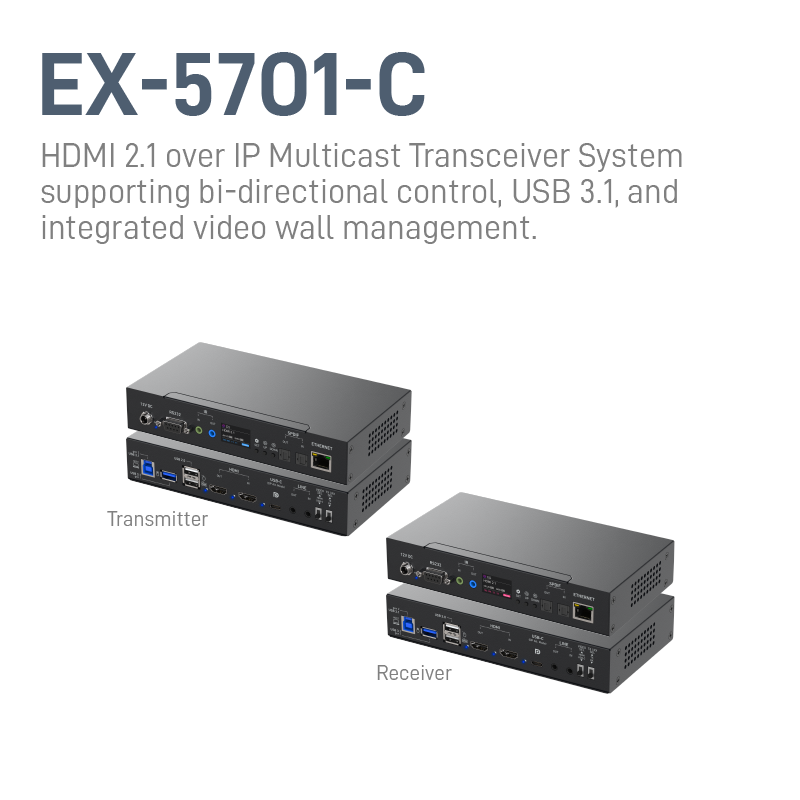

HDMI 2.1 over IP Multicast Transceiver System with Bi-directional IR, RS-232, Audio Extender/Extractor, USB 3.1, KVM & Video Wall Support
- ⎖ Transceiver
1⨯ HDMI 2.1-OUT
-
1⨯ USB-C (DP Alt. Mode)
-
1⨯ Stereo (3.5mm jack)-OUT
-
1⨯ S/PDIF (toslink)-OUT
-
1⨯ IR (3.5mm jack)-OUT
- Supports HDMI 2.1 & HDCP 2.3
-
Supports resolution up to 4K@144 4:4:4/ 8K@60 4:2:2 DSC
-
Supports USB-C (Alt Mode DP 1.4) and simultaneous HDMI/DisplayPort input
-
Supports VRR(Variable Refresh Rate) & ALLM(Auto Low Latency Mode)
-
Extends the transmission over cat.6A cable up to 100m (330ft) from the HDMI source at Ultra-HD 4K@144 4:4:4/ 8K@60 4:2:2 DSC
-
Supports Multi-Encode & Decode capability (proprietary codecs)
-
Latency: ＜1 frame
-
HDCP & CEC Bypass
-
Supports EDID management
-
Can be configured as a full duplex transmitter and receiver when 4K@120 4:4:4
-
Auto equalization
-
Pure unaltered uncompressed 7.1ch digital HDMI over cat.6A transmission
-
DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
-
Supports bi-directional full frequency IR signal from 20KHz to 60KHz
-
Bi-directional Analog audio path-through
-
Supports eARC/ARC
-
Full duplex RS-232 control up to 115,200 bps
-
Supports seamless switching
-
Supports video wall function and image rotation/flip
-
Supports PiP (Picture-in-Picture), PbP (Picture-by-Picture), and PoP (Chroma Key)
-
Supports custom scaling to display
-
Supports USB 3.1 Gen1 host mode for UVC webcam and USB 3.1 Gen2 UVC device mode
-
Supports KVM (mouse roaming) function
-
Integrated port for 1G LAN/ network device
-
Cat.6A extension and connection to a 1GbE Ethernet Switch (supported IGMP Snooping)
-
Supports software to configure & upgrade device and to control the switching operation of the various signal types
