EX-57V3K
HDMI 2.0 Transceiver Extender over Single Cat.6A with HDBaseT 3.0, RS-232, Bi-directional IR, USB 2.
- No Compression
- HDMI 2.0a compliant
- Supports 4K2K@60 4:4:4 8bits
- Supports High Dynamic Range (HDR)
- Extends the HDMI Signal up to 100m (330ft) at 4K2K@60 4:4:4 (4K-HDR Technology) over Cat.6A
- Supports PoC (Power over Cable) which can power both units from TX or RX with power supply
- Can be configured as a transmitter or receiver
- Supports ARC
- HDCP & EDID Bypass
- CEC support
- Auto equalization
- USB2.0 over Cat.6A cable transmission
- Analog audio over Cat.6A cable transmission from transmitter to receiver
- Pure unaltered uncompressed 7.1ch digital HDMI over Cat.6A cable transmission
- DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
- Supports full frequency IR signal from 20KHz to 60KHz
- Bi-directional IR path-through
- Integrated port for LAN/network device
- Full Duplex RS-232 control up to 115,200 bps through connector
- Wall mounting housing design for easy and robust installation
Overview

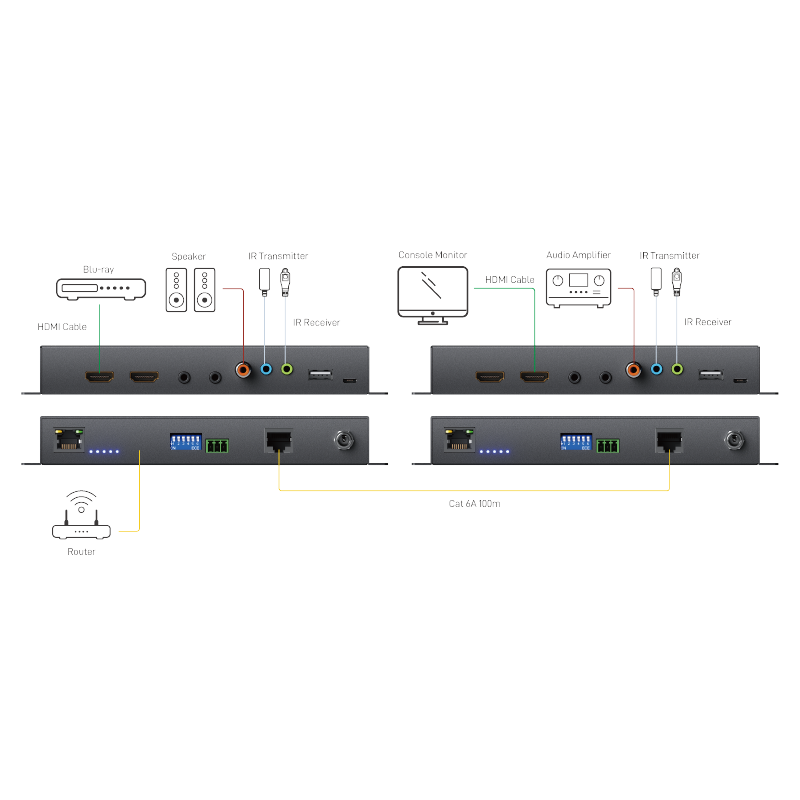

The EX-57V3K HDMI 2.0 Transceiver Extender over Single Cat.6A with HDBaseT 3.0, RS-232, Bi-directional IR, USB 2.0, Ethernet & PoC boosts up your video/audio transmission distance up to 100m (330ft) at 4K-HDR perfectly lossless. EX-57V3K has new generation technology which makes sure the HDBaseT extender can support HDMI2.0a and HDCP 2.2. EX-57V3K also supports the most advanced 3D video format complaint with HDMI specification and therefore guarantees the highest 3D video compatibility on the market. With only one cost-effective Cat.6A cable, users can readily extend UHDTV sources from DVD players, Blu-ray Disc player, PS4, PC, and any other kinds of sources compliant with TMDS to distant display monitors including HDMI or DVI enabled TV sets or LCD PC monitors. With the advanced design for the latest HDMI technology, deep color video, DTS-HD or Dolby TrueHD audio, and HDCP support and compatibility are all further insured. This flexibility makes HDCP compliant DVD players or PS4 transmit utmost high quality video and audio with a greater distance at the minimal cost, when integrating several components apart. In addition, EX-57V3K is also equipped with bi-directional IR pass-through path and RS-232 serial port control. These bonus features allow users to boost IR control distance up to 100m (330ft) through only single Cat.6A cable including HDMI signals. In addition, serial port and USB 2.0 offer the convenient path for interactive application, such as touch panels. EX-57V3K also supports PoC (Power over Cable) which can power both units from TX or RX with power supply. The EX-57V3K can work as either a transmitter or a receiver to provide more flexibility for installations. The transmitting unit is used to capture the input HDMI / DVI signals with control packets. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. EX-57V3K offers the most convenient solution for digital signage with long distance A/V transmission path.
SPECIFICATIONS
Technical
-
HDMI Compliance
-
2.0
-
HDCP Compliance
-
2.2／1.4
-
USB compliance
-
2.0
-
Max. Data Rate
-
18 Gbps
-
Max. Resolution
-
4K2K@60 (4:4:4—8bits)
4K2K@60 (4:2:0—10bits)
-
HDR
-
4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit color
-
Audio Support
-
Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio
-
CEC control
-
Pass through
-
IR Control
-
Two Way
-
IR Frequency
-
38—56 KHZ
-
RS232 Control
-
Full Duplex (115,200 bps)
-
ESD protection
-
8 KV—Contact Discharge
15KV—Air Discharge
Mechanical
-
Housing Design
-
Metal
-
Casing Style
-
Rack Mountable
-
Power Connection
-
Interlocking Barrel
-
Power Supply
-
24V DC, 1A
-
Power Consumption
-
18 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
487g (1.0 lbs)
-
Package Weight
-
1102g (2.4 lbs)
-
Certifications
-
CE, FCC, RoHS
