    Displaying  20  Products

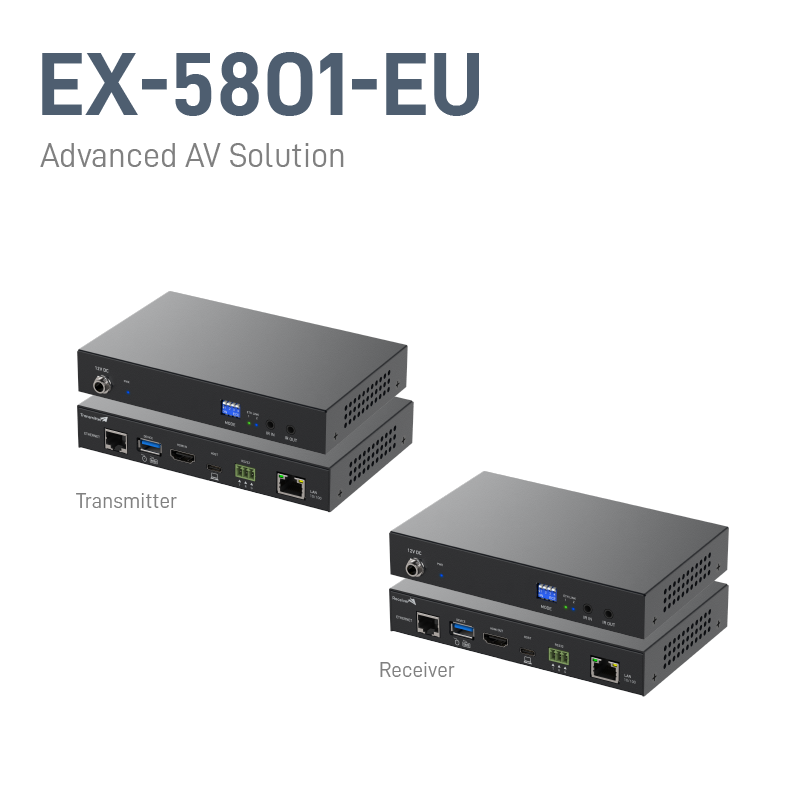

    • EX-58O1
    HDMI 2.1 over IP Multicast System with Bi-directional IR, RS-232 & USB 3.1 Support
    • INPUTS
    • ⎖ Transmitter 1⨯ HDMI 2.1-IN
    • 1⨯ IR (3.5mm jack)-IN
    • 1⨯ USB3.1 gen2-C (host)
    • 1⨯ USB3.1 gen1-A (device)
    • 1⨯ RS232 (terminal block)
    • 1⨯ micro USB-B (console)
    • ⎖ Receiver 1⨯ IR (3.5mm jack)-IN
    • 1⨯ LAN Port
    • 1⨯ micro USB-B (console)
    • OUTPUTS
    • ⎖ Transmitter 1⨯ IR (3.5mm jack)-OUT
    • 1⨯ LAN Port
    • ⎖ Receiver 1⨯ HDMI 2.1-OUT
    • 1⨯ IR (3.5mm jack)-OUT
    • 1⨯ USB3.1 gen2-C (host)
    • 1⨯ USB3.1 gen1-A (device)
    • 1⨯ RS232 (terminal block)
    • FEATURES
    • Supports HDMI 2.1 & HDCP 2.3
    • Supports resolution up to 4K@120 4:4:4
    • Supports VRR(Variable Refresh Rate) & ALLM(Auto Low Latency Mode)
    • Extends the transmission over cat.5e cable up to 100m (330ft) from the HDMI source at Ultra-HD 4K@120 4:4:4
    • Supports Multi-Encode & Decode capability (proprietary codecs)
    • Latency: <
    • 1 frame
    • HDCP & CEC Bypass
    • Supports EDID management
    • Auto equalization
    • Pure unaltered uncompressed 7.1ch digital HDMI over cat.5e transmission
    • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
    • Supports bi-directional full frequency IR signal from 20KHz to 60KHz
    • Supports eARC/ARC
    • Full duplex RS-232 control up to 115,200 bps
    • Supports seamless switching
    • Supports PiP (Picture-in-Picture), PbP (Picture-by-Picture), and PoP (Chroma Key)
    • Supports custom scaling to display
    • Supports USB 3.1 Gen1 host mode for UVC webcam and USB 3.1 Gen2 UVC device mode
    • Integrated port for 1G LAN/ network device
    • Cat.5e extension and connection to a 1GbE Ethernet Switch (supported IGMP Snooping)
    • Supports software to configure & upgrade device and to control the switching operation of the various signal types

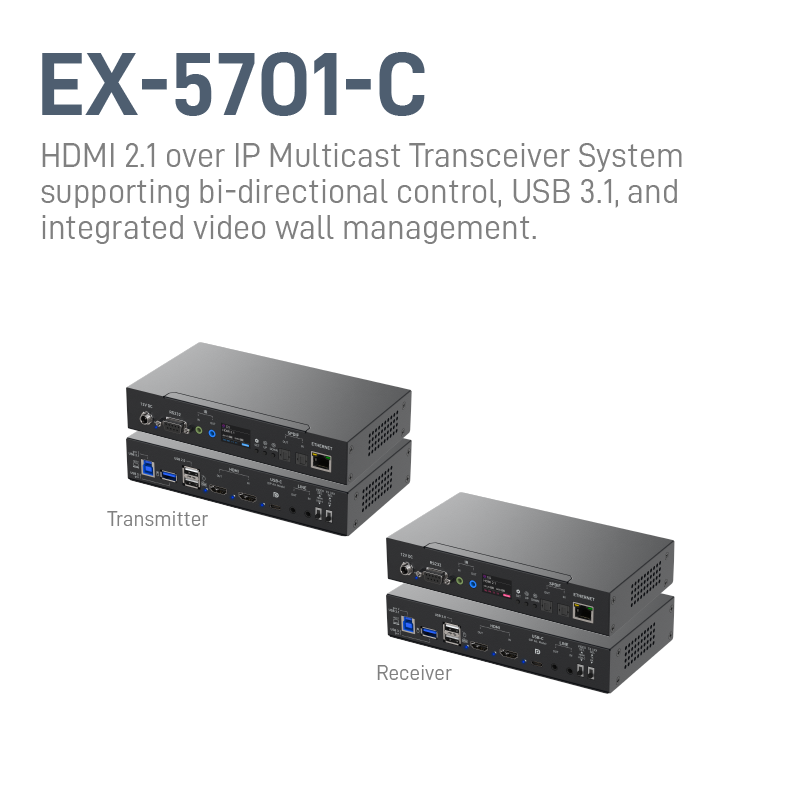

    • EX-57O1
    HDMI 2.1 over IP Multicast Transceiver System with Bi-directional IR, RS-232, Audio Extender/Extractor, USB 3.1, KVM & Video Wall Support
    • INPUTS
    • ⎖ Transceiver 1⨯ HDMI 2.1-IN
    • 1⨯ Stereo (3.5mm jack)-IN
    • 1⨯ S/PDIF (toslink)-IN
    • 1⨯ USB-C (PD 3.0)
    • 1⨯ IR (3.5mm jack)-IN
    • 3⨯ USB2.0-A (keyboard/mouse)
    • 1⨯ USB3.1-A gen1 (device)
    • 1⨯ USB3.1-B (console)
    • 1⨯ RS232 (DB9)
    • OUTPUTS
    • ⎖ Transceiver 1⨯ HDMI 2.1-OUT
    • 1⨯ USB-C (DP Alt. Mode)
    • 1⨯ Stereo (3.5mm jack)-OUT
    • 1⨯ S/PDIF (toslink)-OUT
    • 1⨯ IR (3.5mm jack)-OUT
    • FEATURES
    • Supports HDMI 2.1 & HDCP 2.3
    • Supports resolution up to 4K@144 4:4:4/ 8K@60 4:2:2 DSC
    • Supports USB-C (Alt Mode DP 1.4) and simultaneous HDMI/DisplayPort input
    • Supports VRR(Variable Refresh Rate) & ALLM(Auto Low Latency Mode)
    • Extends the transmission over cat.6A cable up to 100m (330ft) from the HDMI source at Ultra-HD 4K@144 4:4:4/ 8K@60 4:2:2 DSC
    • Supports Multi-Encode & Decode capability (proprietary codecs)
    • Latency: ＜1 frame
    • HDCP & CEC Bypass
    • Supports EDID management
    • Can be configured as a full duplex transmitter and receiver when 4K@120 4:4:4
    • Auto equalization
    • Pure unaltered uncompressed 7.1ch digital HDMI over cat.6A transmission
    • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
    • Supports bi-directional full frequency IR signal from 20KHz to 60KHz
    • Bi-directional Analog audio path-through
    • Supports eARC/ARC
    • Full duplex RS-232 control up to 115,200 bps
    • Supports seamless switching
    • Supports video wall function and image rotation/flip
    • Supports PiP (Picture-in-Picture), PbP (Picture-by-Picture), and PoP (Chroma Key)
    • Supports custom scaling to display
    • Supports USB 3.1 Gen1 host mode for UVC webcam and USB 3.1 Gen2 UVC device mode
    • Supports KVM (mouse roaming) function
    • Integrated port for 1G LAN/ network device
    • Cat.6A extension and connection to a 1GbE Ethernet Switch (supported IGMP Snooping)
    • Supports software to configure & upgrade device and to control the switching operation of the various signal types
