    EX-57CLZ
    4K-HDR HDMI 2.0 Extender over Single CAT6 with Bi-directional IR & PoC
    • HDMI 2.0 compliant
    • Supports 4K2K@60 4:4:4 8bits
    • Supports HDR, which is 4K2K@60 4:2:0 10bits
    • Extends HDMI signal up to 70m(230ft) [CAT6] /60m(198ft) [CAT5e] at 4K2K@60 and 90m(297ft) [CAT6 ] /70m(230ft) [CAT5e] at 1080P60
    • Supports PoC (Power over Cable) which can power both units from TX or RX side with power supply
    • Supports HDMI input loopback
    • HDCP 2.2/1.4 & EDID Bypass
    • Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
    • Supports full frequency IR signal from 20KHz to 60KHz
    • Bi-directional IR path-through
    • Wall mounting housing design for easy and robust installation
    • Video latency less than 100ms
    Overview

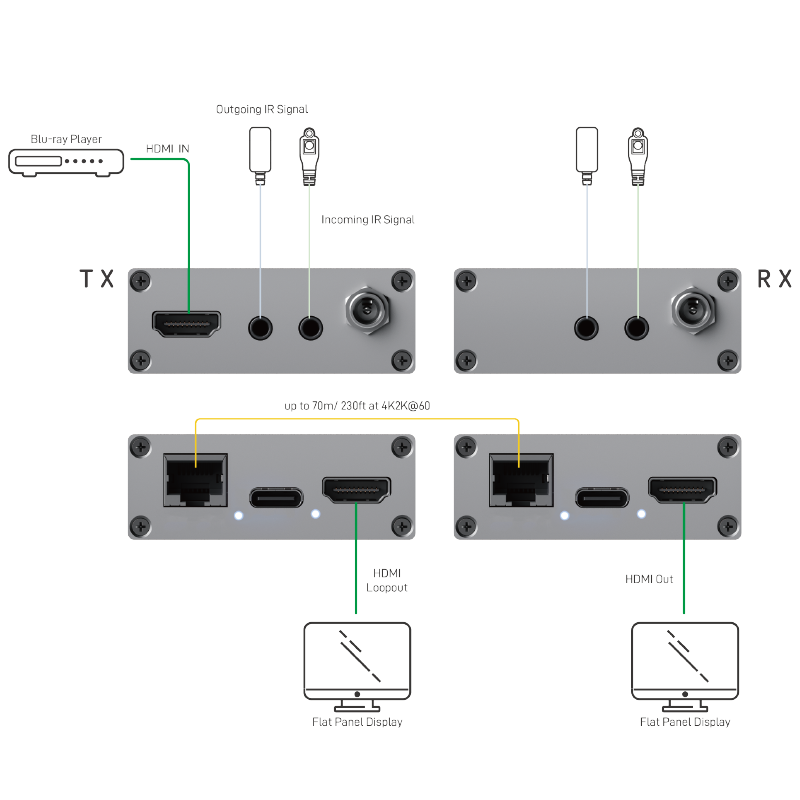

    The EX-57CLZ 4K-HDR HDMI 2.0 Extender over Single CAT6 with, Bi-directional IR & PoC boosts up your video/audio transmission distance up to 70m (230ft) at 4K2K@60 and supports HDMI2.0 and HDCP2.2. With only one cost-effective Cat.6 cable, users can readily extend signals from HDMI capable sources, such as Apple TV, PlayStation, Xbox, PC, and laptop to distant display monitors including HDMI enabled TV sets or LCD PC monitors. With the advanced design for the latest HDMI technology, deep color video, DTS-HD or Dolby TrueHD audio, and HDCP supports and compatibility are all further insured. EX-57CLZ is also equipped with bi-directional IR pass-through path control. These bonus features allow users to boost IR control distance up to 70m (230ft) through only single Cat.6 cable with HDMI signals. In addition, EX-57CLZ also supports PoC (Power over Cable) which can power both units from either TX or RX with power supply. The EX-57CLZ includes two units: transmitting unit EX-57CLZ-TX and receiving unit EX-57CLZ-RX. The transmitting unit is used to capture the input HDMI signals with IR control packets and carry the signals via one cost effective Cat.6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR control signals. EX-57CLZ offers the most convenient solution for digital signage with long distance A/V transmission path.
    SPECIFICATIONS
    Technical
    • HDMI Compliance

    • 2.0

    • HDCP Compliance

    • 2.2 & 1.4

    • Max. Distance

    • Up to 4Kp60@70m (Cat 6) -@60m (Cat 5e)
      Up to 1080p60@90m (Cat 6) -@70m (Cat 5e)

    • Max. Data Rate

    • 18 Gbps

    • Max. Resolution

    • 1080p@60 (4:2:2—12bits)
      1080p@60 (4:4:4—8bits)

    • Audio Support

    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio

    • CEC control

    • Pass through

    • IR Control

    • Two Way

    • IR Frequency

    • 38—56 KHZ

    • ESD protection

    • 8 KV—Contact Discharge
      15KV—Air Discharge

    Mechanical
    • Housing Design

    • Metal

    • Casing Style

    • Wall Mountable

    • Power Connection

    • Interlocking Barrel

    • Power Supply

    • 5V DC, 2A

    • Power Consumption

    • 1 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    •   ᚜ TX;239g (0.5 lbs)
        ᚜ RX;239g (0.5 lbs)

    • Package Weight

    • 1000g (2.2 lbs)

    • Certifications

    • CE, FCC, RoHS
