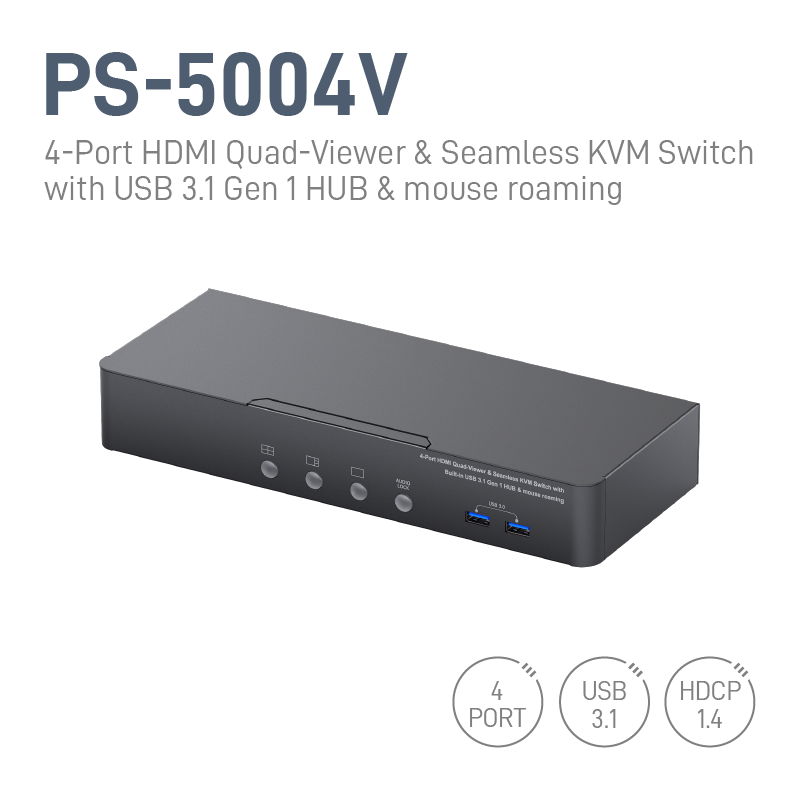

ALL PRODUCTS REFINE RESULTS Control & Data USB Ethernet IR (Infrared) RS-232 USB Version USB 2.0 USB 3.0 Powering PoC PoE USB Battery REFINE RESULTS Control & Data USB Ethernet IR (Infrared) RS-232 USB Version USB 2.0 USB 3.0 Powering PoC PoE USB Battery Home > Products > Video Processor Displaying 20 Products PS-5004V 4-Port HDMI Quad-Viewer & Seamless KVM Switch with USB 3.1 Gen 1 HUB & mouse roaming INPUTS "4⨯ HDMI 1.2 4x USB3.1-A (hub) 2x USB1.1-A (Console PC) 1⨯ Stereo (Console mic) 4⨯ Stereo (KVM mic) 4x USB-B (KVM port) 1⨯ micro USB-B (console) " OUTPUTS 1⨯ HDMI 1.2 (Master & Slave) 1⨯ Stereo (Console audio) 4⨯ Stereo (KVM audio) 1⨯ Stereo (RCA-Red&White) FEATURES Input resolutions support up to 1920x1080@60Hz Output resolutions support up to 1920x1080@60Hz Supports one-view／quad-vew／quad-view cycled mode Supports mouse roaming PS-5004MZ2E 4-Port HDMI 2.0a/Audio Quad-Viewer & Seamless KVM Switch with USB 3.1 Gen 1 HUB & mouse roaming INPUTS 4⨯ HDMI 2.0 1⨯ IR Ext. (3.5mm jack) 2x USB3.1-A (hub) 2x USB1.1-A (Console PC) 1⨯ Stereo (Console audio) 4x USB-B (KVM port) 4⨯ Stereo (KVM audio) 1⨯ RS232 (DB9) 1⨯ ETH (console) 1⨯ micro USB-B (console) OUTPUTS 2⨯ HDMI 2.0 (Master & Slave) 1⨯ Stereo (Console audio) 4⨯ Stereo (KVM audio) 1⨯ Stereo (RCA-Red&White) 1⨯ HDMI 2.0 (Slave) FEATURES Input resolutions support up to 4096x2160@60Hz (4:4:4 8bits) Output resolutions support up to 4K2K@60Hz (4:4:4 8bits) Supports PIP, PBP, POP, full screen & quad-view Resize, position, zoom & pan and blend output video Supports mouse roaming Control—IR Remote, WebGUI, On–Screen Display, RS–232 SW-5009DEZ 9x2 Multi-format Presentation Switcher with HDMI & HDBaseT & UVC Output INPUTS 5⨯ HDMI 2.0 1x USB-C (uvc) 1⨯ Mini DisplayPort 1.1 1⨯ DVI 2⨯ VGA 1⨯ YPbPr 3⨯ Stereo (3.5mm jack) 1⨯ IR via HDBT (3.5mm jack) 1⨯ RS232 (term. blk.) 1⨯ ETH (console) 1x USB-C (host) OUTPUTS 2⨯ HDMI 2.0 1⨯ HDBT port 1⨯ IR via HDBT (3.5mm jack) 1⨯ USB3.0-A (recording) FEATURES HDMI／USB-C／miniDP／DVI／VGA／YPbPr Input Supports up to 4K@60 4:4:4 on the HDMI output 3.5mm Digital Audio Embedding HDBaseT Max. Range: 100m (130ft) at 4K@60Hz (4:4:4) Upscales and downscales to / from all resolutions Control — IR, RS–232, Ethernet with Web browse MX-5004MZ2F 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 INPUTS 4⨯ HDMI 2.0 1⨯ IR Ext. (3.5mm jack) 1⨯ micro USB-B (fw update) 1⨯ RS232 (DB9) 1⨯ ETH (console) OUTPUTS 2⨯ HDMI 2.0 1⨯ Stereo (RCA-Red&White) FEATURES HDMI 2.0 x4 Input Front Panel／OSD／IR／WebGUI／RS–232 Front Panel Buttons Lock VW-1404ZH-C 4K 1x4 Video Wall Processor INPUTS 1⨯ HDMI 2.0 1⨯ micro USB-B (console) 1⨯ ETH (console) OUTPUTS 4⨯ HDMI 2.0 1⨯ Stereo (RCA-Red&White) FEATURES Four HDMI outputs resolutions up to 1920x1200 HDMI 2.0a & Mini DisplayPort 1.2a supported Image-sync to minimize tearing with fast moving objects Built-in bezel correction Resize, position, and zoom for each HDMI video output MX-5004MZ2E-CF 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB 3.0 FHD Video Capture Function INPUTS 4⨯ HDMI 2.0 1⨯ IR Ext. (3.5mm jack) 1⨯ USB-C (capture/fw host) 1⨯ RS232 (DB9) 1⨯ ETH (console) OUTPUTS 2⨯ HDMI 2.0 1⨯ Stereo Out (RCA-Red&White) MX-5004V 4x1 HDMI Quad-Viewer & Seamless Switcher INPUTS 4⨯ HDMI 1.4 1⨯ micro USB-B (ctrl+fw update) OUTPUTS 1⨯ HDMI 1.4 1⨯ Stereo (3.5mm jack) FEATURES 5 Display Modes Available Seamless Switching Enabled Built-in Audio Extraction Control-Front Panel／OSD／IR／Software USB(micro-b) firmware field-upgradable MX-5004MZ2-UF 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB 3.0 FHD Video Capture Function INPUTS 4⨯ HDMI 2.0 1⨯ IR Ext. (3.5mm jack) 1⨯ USB-A (host) 1⨯ micro USB-B (fw update) 1⨯ RS232 (term. blk.) 1⨯ ETH (console) OUTPUTS 2⨯ HDMI 2.0 1⨯ HDMI 2.0 (loopout) 1⨯ Stereo (RCA-Red&White) FEATURES 2⨯ HDMI 2.0 1⨯ HDMI 2.0 (loopout) 1⨯ Stereo (RCA-Red&White) MX-5004MZF 4x1 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 INPUTS 4⨯ HDMI 1.4 1⨯ RS232 (term. blk.) 1⨯ ETH (console) OUTPUTS 1⨯ HDMI 1.4 1⨯ Stereo (RCA-Red&White) FEATURES HDMI 1.4 x4 Input Front Panel／OSD／IR／WebGUI／RS–232 Front Panel Buttons Lock VW-1404ZH-G 4K 1x4 Video Wall Processor with DP 1.2 input INPUTS 1⨯ HDMI 2.0 1⨯ Mini DisplayPort 1.2 1⨯ micro USB-B (console) 1⨯ ETH (console) OUTPUTS 4⨯ HDMI 2.0 1⨯ Stereo (RCA-Red&White) FEATURES Four HDMI outputs resolutions up to 1920x1200 HDMI 2.0a & Mini DisplayPort 1.2a supported Image-sync to minimize tearing with fast moving objects Built-in bezel correction Resize, position, and zoom for each HDMI video output MX-5004MZ 4x1 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 MX-5022 Dual-View Video Processor VW-1404ZH 4-Display HDMI2.0a 4K 4:4:4 Video Wall Processor INPUTS 1⨯ HDMI 2.0 1⨯ micro USB-B (console) 1⨯ ETH (console) OUTPUTS 4⨯ HDMI 2.0 1⨯ Stereo (RCA-Red&White) FEATURES Four HDMI outputs resolutions up to 1920x1200 HDMI 2.0a & Mini DisplayPort 1.2a supported Image-sync to minimize tearing with fast moving objects Built-in bezel correction Resize, position, and zoom for each HDMI video output VW-1404CZ 4-Display Video Wall Processor with 4K2K@60 INPUTS 1⨯ HDMI 2.0 1⨯ micro USB-B (console) 1⨯ ETH (console) OUTPUTS 4⨯ DVI 1⨯ Stereo (RCA-Red&White) FEATURES Four DVI outputs resolutions up to 1920x1200 Image-sync to minimize tearing with fast moving objects Built-in bezel correction Resize, position, and zoom for each HDMI video output VW-1404C 4-Display Video Wall Processor INPUTS 1⨯ DVI 1⨯ micro USB-B (console) 1⨯ ETH (console) OUTPUTS 4⨯ DVI 1⨯ Stereo (RCA-Red&White) FEATURES Four DVI outputs resolutions up to 1920x1200 Image-sync to minimize tearing with fast moving objects Built-in bezel correction Resize, position, and zoom for each HDMI video output SW-5005DE 5x2 Multi-Format Presentation Switcher with HDMI & HDBaseT-Lite Outputs INPUTS 1⨯ HDMI 2.0 1⨯ Mini DisplayPort 1.1 2⨯ VGA 2⨯ Stereo (3.5mm jack) 1⨯ IR via HDBT (3.5mm jack) 1⨯ IR Ext. (3.5mm jack) 1⨯ micro USB-B (console) 1⨯ RS232 (term. blk.) 1⨯ ETH (console) OUTPUTS 1⨯ HDMI 2.0 1⨯ HDBT port 1⨯ IR via HDBT (3.5mm jack) FEATURES HDMI／VGA／miniDP Input Front Panel／IR／WebGUI／RS–232 Built-in HDBaseT Extension Port Front Panel Buttons Lock SW-5004DE HDMI 4x1 Seamless Switcher with Quad-view support INPUTS 4⨯ HDMI 1.2 1⨯ IR Ext. (3.5mm jack) 1⨯ RS232 (console) 1⨯ ETH (console) OUTPUTS 1⨯ HDMI 1.2 SW-5054R 5x3 Multi-Format Presentation Switcher with HDMI, HDBaseT-Lite Outputs & Recorder INPUTS 3⨯ HDMI 2.0 1⨯ DisplayPort 1.2 1⨯ USB3.0-C 1⨯ Stereo (3.5mm jack) 1⨯ micro USB-B (ctrl+fw update) OUTPUTS 2⨯ HDMI 2.0 1⨯ HDBT port FEATURES HDMI／DisplayPoRT／USB-C Input Front Panel／Micro-B USB Built-in HDBaseT-Lite Extension Port Microphone Input Recording onto SD Card／USB Flash Disk VP-5004MZ2-C 4K UHD Presentation Switcher INPUTS 4⨯ HDMI 2.0 1⨯ Stereo (RCA-Red&White) 1⨯ IR Ext. (3.5mm jack) 1⨯ micro USB-B (console) 1⨯ RS232 (term. blk.) 1⨯ ETH (console) OUTPUTS 1⨯ HDMI 2.0 (Master) 1⨯ Stereo (RCA-Red&White) 1⨯ HDMI 2.0 (Slave) FEATURES Scaled output resolutions of up to 4K@60Hz, 4:4:4 Dual Display—Mirror vs. Extended Mode Microphone Input & L/R Stereo Audio Outputs Control—IR Remote, On–Screen Display, RS–232 4K up-scaling/down-scaling engine VP-5004MZ2-R 4K UHD Presentation Switcher INPUTS 4⨯ HDMI 2.0 1⨯ Stereo (RCA-Red&White) 1⨯ IR Ext. (3.5mm jack) 1⨯ micro USB-B (console) 1⨯ RS232 (term. blk.) 1⨯ ETH (console) OUTPUTS 1⨯ HDMI 2.0 (Master) 1⨯ Stereo (RCA-Red&White) 1⨯ HDMI 2.0 (Slave) FEATURES Scaled output resolutions of up to 4K@60Hz, 4:4:4 Dual Display—Mirror vs. Extended Mode Microphone Input & L/R Stereo Audio Outputs Control—IR Remote, On–Screen Display, RS–232 4K up-scaling/down-scaling engine
