    CAP-302AS-G
    USB 3.1 Gen1 3G-SDI Capture Device with Scaler and Audio
    • Supports SDI output resolution scaler with audio embedding
    • SDI video and audio streams over USB 3.1 Gen 1
    • Supports UVC1.0
    • Supports input and output video resolution up to 1080p 60Hz
    • Supports SDI loop through
    • Auto-detection on video format to ensure plug-play operations
    • Recording Video Format: H.264 (Software Compression)
    • Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)
    • Compatible with most 3rd party software such as OBS Studio and AMCap
    • Supports USB 3.1 (MJPG/YUY2) and USB 2.0 (MJPG)
    • Low Lattency
    • System Requirements (Recommanded)
    • - Windows® 7(SP1) / Windows 8.1 / Windows 10
    • - PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
    • - Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher
    • - 4GB RAM or higher
    Overview
    The CAP-302AS-G USB 3.1 Gen 1 3G-SDI Capture Device with Scaler and Audio provides a professional way to capture 3G/HD/SD-SDI signals. It adopts USB 3.1 Gen 1 (USB 3.0) interface, which can realize high-speed transmission. Users can capture 3G/HD/SD-SDI signals by this capture device. Besides, CAP-302AS-G can capture and display original uncompressed 3G/HD/SD-SDI with more realistic color rendition. CAP-302AS-G also uses large volume image buffer technology which effectively avoids the video tearing. The high sampling rate and high sampling accuracy assure images with high sharpness, rich details, and less color edges.
    SPECIFICATIONS
    Technical
    • Max. Data Rate

    • 350 Mbps

    • UAC Video Output Resolution

    • ⊚SMPTE 424M-2.97 Gbps│3G-SDI：
      　﹂1080p at 50／59.94／60 Hz (4:2:2)。
      ⊚SMPTE 274M-1.485 Gbps│HD-SDI：
      　﹂1080p at 23.98, 24, 25, 29.97, 30 Hz, 1080i at 50, 59.94, 60 Hz。
      ⊚SMPTE 292M-1.485 Gbps│HD-SDI：
      　﹂1080i at 30 Hz, 720p at 60 Hz。
      ⊚SMPTE 296M-1.485 Gbps│HD-SDI：
      　﹂720p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz。
      ⊚SMPTE 259M-270 Mbps│SD-SDI：
      　﹂NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz。

    • UAC Audio Output Format

    • Stereo / 16-bit / 48000Hz

    • Recording Video Format

    • YUY2 (USB3.1 Gen 1), MJPG (USB2.0/3.1 Gen 1)

    • Audio Input

    • SDI Embedded Audio
      3.5mm Analog Stereo Audio

    • Operating System Compatibility

    • Windows 7, 8, 10, Mac OS X 10.9 or above, Linux

    • 3rd-Party Software Compatibility

    • OBS Studio (Windows, Linux)／AMCap (Windows)
      Potplayer (Windows)／Skype (Windows, OS X)
      Hangout (Windows)／TeamViewer (Windows)

    • Hardware Requirements

    • Desktop：Intel Core i5-3400+NVIDIA GTX660 or higher
      Notebook：Intel Core i7-4810MQ+NVIDIA GTX870M or higher+4GB RAM or higher

    • ESD Protection

    • 8 KV—Contact Discharge
      15KV—Air Discharge

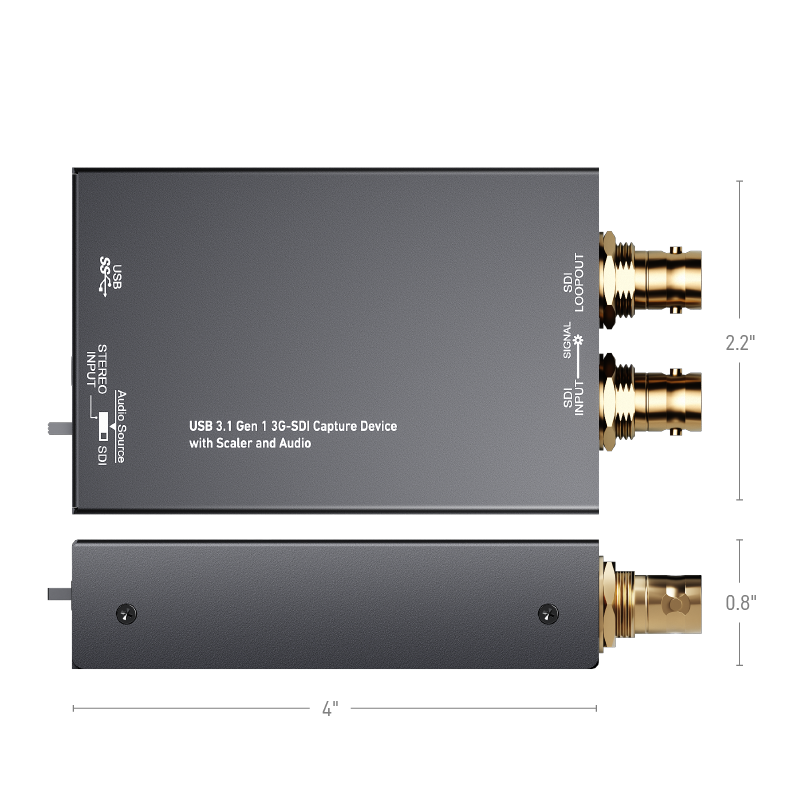

    Mechanical
    • Housing Design

    • Aluminum

    • Casing Style

    • Portable

    • Power Connection

    • Micro-USB Port

    • Power Supply

    • 5V DC, 1A

    • Power Consumption

    • 4 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    • 135g (0.3 lb.)

    • Package Weight

    • 270g (0.6 lb.)

    • Certifications

    • CE, FCC, RoHS
