EX-27O1
USB 3.2 Gen 1 over IP Multicast System
- Extends the transmission over cat.5e cable up to 100m (330ft) from USB device
- Supports USB 1.0(low-speed), USB 1.1(full-speed), USB 2.0(high-speed) and USB 3.2 Gen 1(rate up to 5 Gbps)
- Supports four USB peripheral devices
- Built-in 10/100 Mbps Ethernet port with transparent pass-through mode (only supported in point-to-point connections between TX and RX)
- Supports hot plug function
- Does not require additional drivers
- Easy to setup
Overview

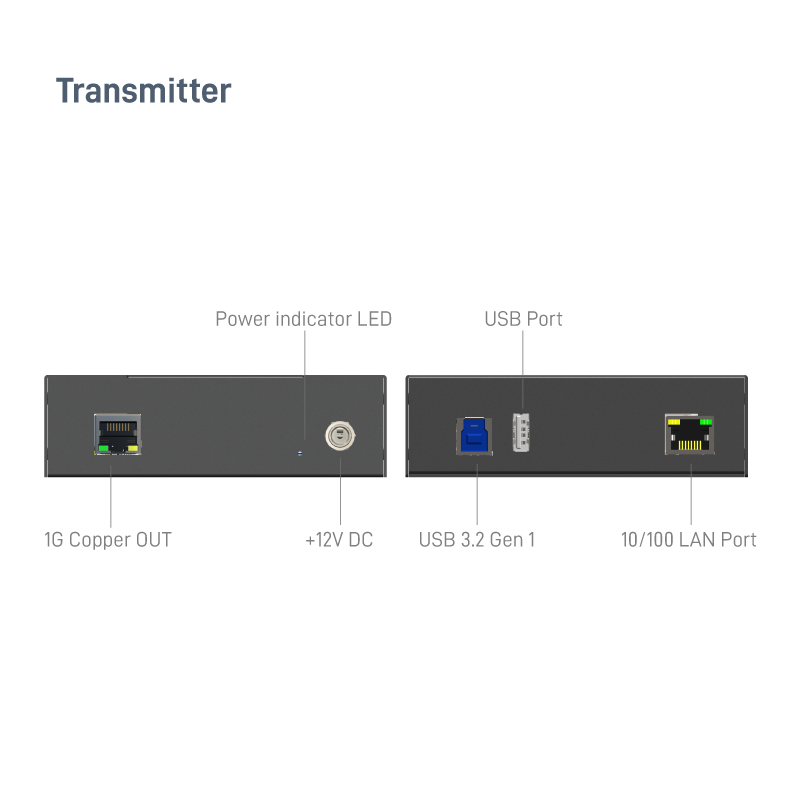

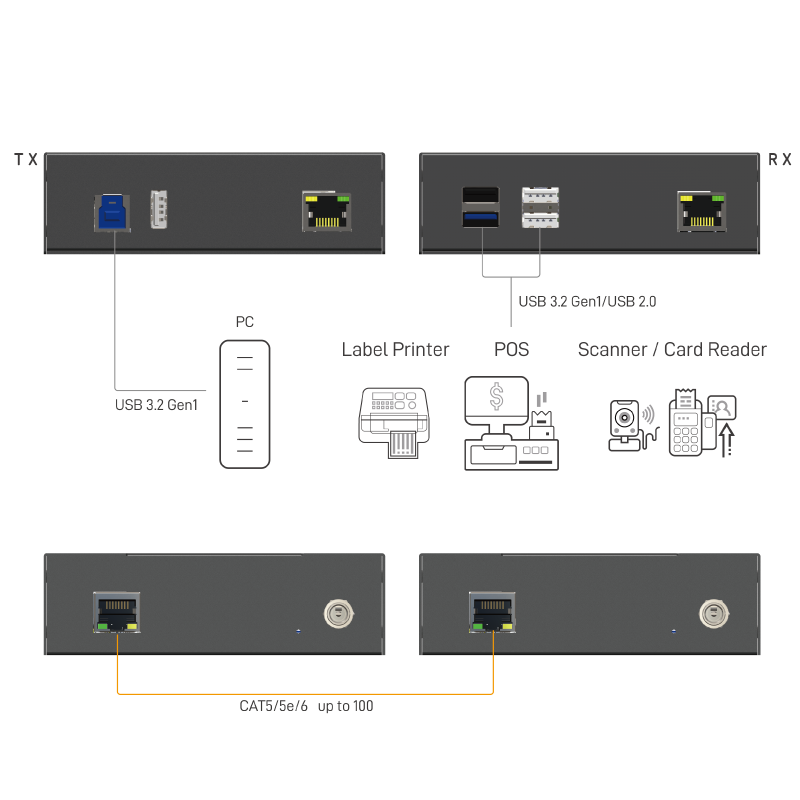

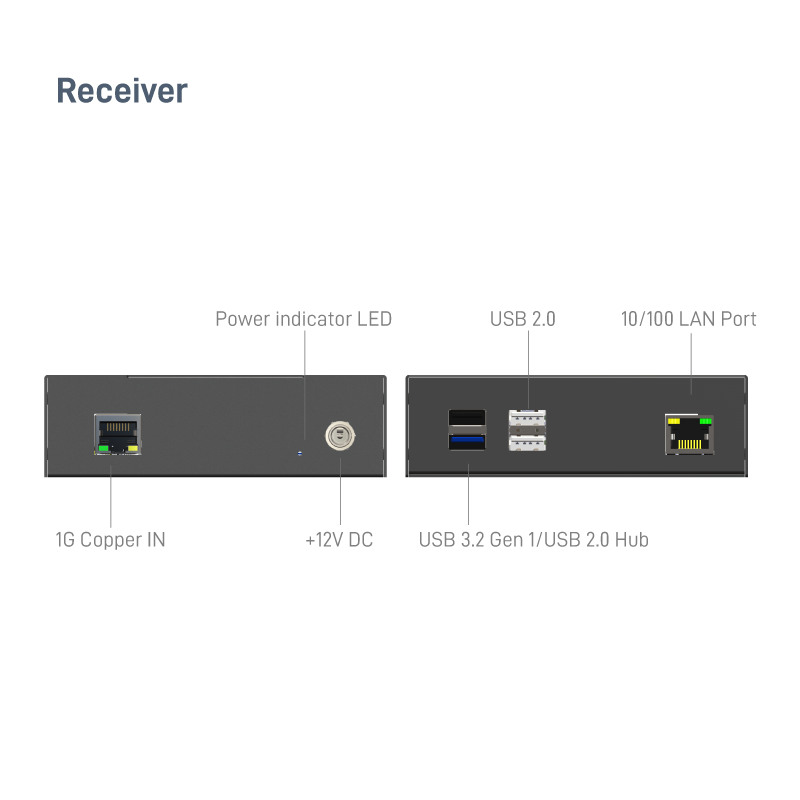

The EX-27O1 USB 3.2 Gen 1 over IP Multicast System extends the transmission distance of USB peripherals up to 100 meters (330 feet) over copper cabling. The system includes two units: a local unit that connects to the PC and a remote unit that connects to the USB device, such as printers, cameras, storage drives, card readers, and more. The EX-27O1 also features a built-in 10/100 Mbps Ethernet port with transparent pass-through mode. It provides a convenient solution for transmitting USB 3.2 Gen 1 signals over long distances.
SPECIFICATIONS
Technical
-
USB over UTP transmission
-
Up to 100m (330ft) [CAT.5E]
-
Ethernet Port
-
10/100 Mbps
-
USB Interface
-
USB 3.2 Gen 1/USB 2.0
Mechanical
-
Housing Design
-
Metal
-
Casing Style
-
Wall Mountable
-
Power Connection
-
Interlocking Barrel
-
Power Supply
-
12V DC, 1A
-
Power Consumption
-
7 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
⎖ TX : 216g (7.6 oz.)
⎖ RX : 198g (7.0 oz.)
-
Package Weight
-
⎖ TX : 376g (13.3 oz.)
⎖ RX : 367g (13.0 oz.)
-
Certifications
-
CE, FCC, RoHS
