CV-5005Z-G
HDMI 2.0a Retimer/Repeater with EDID Management
- HDMI2.0a compliant
- Supports 4K2K@60 4:4:4 8bits
- Supports HDR1, which is 4K2K@60 4:2:0 10bits2
- Supports CEC bypass
- Supports default EDID and EDID learning from display
- Supports LPCM 7.1 audio, Dolby TrueHD, Dolby Digital
Overview
The CV-5005Z-G HDMI 2.0a Retimer/Repeater with EDID Management boosts up your HDMI extension transmission over long cable and makes multiple layers cascading of HDMI products possible. The CV-5005Z-G amplifies and equalizes the HDMI signal to provide high quality audio and video. The power can be provided by HDMI source which follows HDMI spec to provide 5V. If the source cannot provide enough power, the external power can be added to extend HDMI2.0a signal.
SPECIFICATIONS
Technical
-
HDMI Compliance
-
2.0
-
HDCP Compliance
-
2.2／1.4
-
Max. Data Rate
-
18 Gbps
-
Max. Resolution
-
4K2K@60 (4:4:4—8bits)
4K2K@60 (4:2:0—10bits)
-
HDR
-
4:2:0|4:2:2|4:4:4—10 or 12bits／HDR10; HDR10+; Dolby Vision; HLG
-
Audio Support
-
Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio
-
CEC control
-
Pass through
-
EDID Selection
-
6-position Dip Switch (17 options)
-
ESD Protection
-
8 KV—Contact Discharge
15KV—Air Discharge

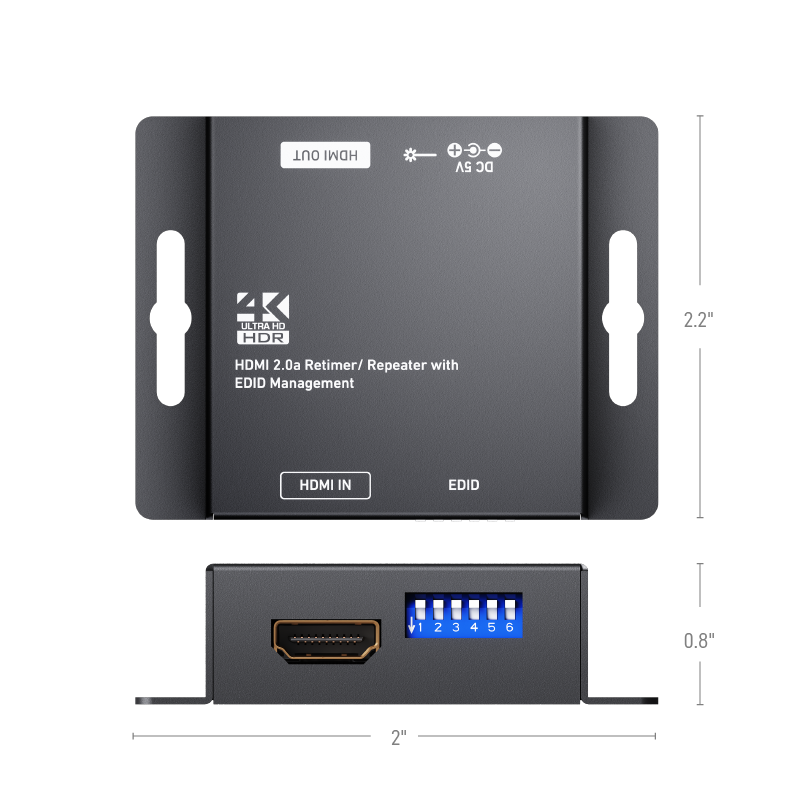

Mechanical
-
Housing Design
-
Metal
-
Casing Style
-
Wall Mountable
-
Power Connection
-
Micro-USB Port
-
Power Supply
-
5V DC, 1A
-
Power Consumption
-
3 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
103g (3.6 oz.)
-
Package Weight
-
309g (10.9 oz.)
-
Certifications
-
CE, FCC, RoHS
