- HDMI 1.4 compliant
- Input resolutions support from 640x480 to 4K2K@30 (4:4:4 8bits) progressive
- Output resolutions support up to 4K2K@30Hz (4:4:4 8bits)
- HDCP 1.4 compliant
- Supports default HDMI EDID and learns user-defined EDID

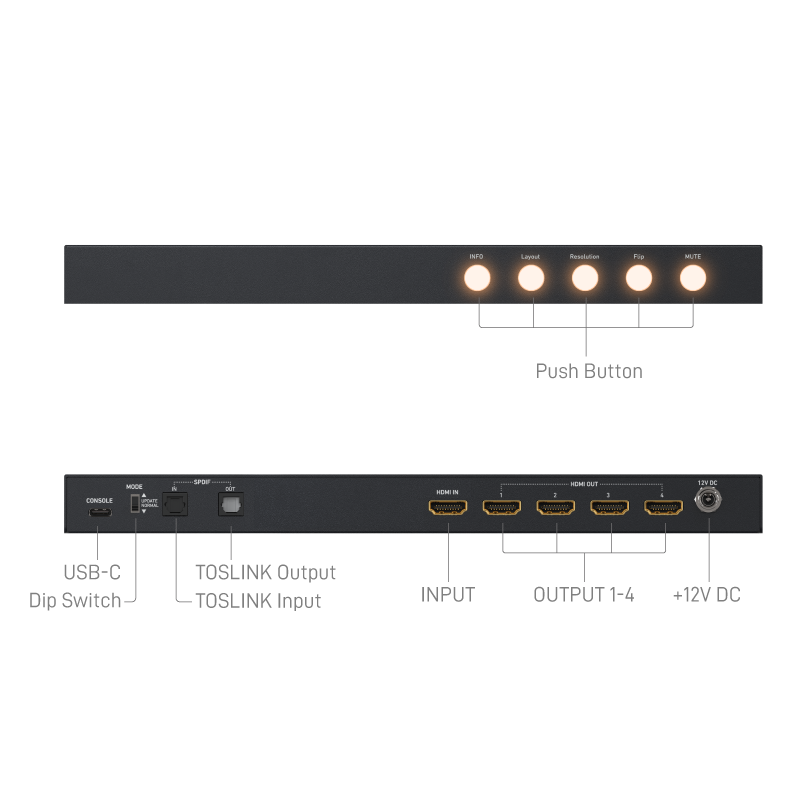

- The video wall processor can be controlled by push-in buttons and Software control
- Each HDMI output has an independent controllable display area through software
- User-selectable output settings, up to 4K2K@30
- Image parameters and layouts are automatically saved in flash memory of the device and can be recalled for later use
- Adjustable size and position through software
- Resize, position, zoom and pan output video
- Supports both horizontal and vertical flip
- Supports 4K2K@30 4:4:4 input to 4 outputs with pixel-to-pixel 4K2K@30 4:4:4 mapping
- Firmware is upgradable through software to support new features and technology enhancements
The VW-1404MS 4K30 1x4 Video Wall Processor is an affordable, powerful, and real-time video/data processor designed for use with multiple flat panel displays or projectors. Its control software allows users to establish virtually any display configuration.
This processor can handle HDMI input up to 4K2K@30Hz 4:4:4. It includes an embedded scaler that can adjust HDMI signals to the native resolution of various displays such as monitors, flat panel displays, projectors, and allows user-selected output settings up to 4K2K@30Hz.

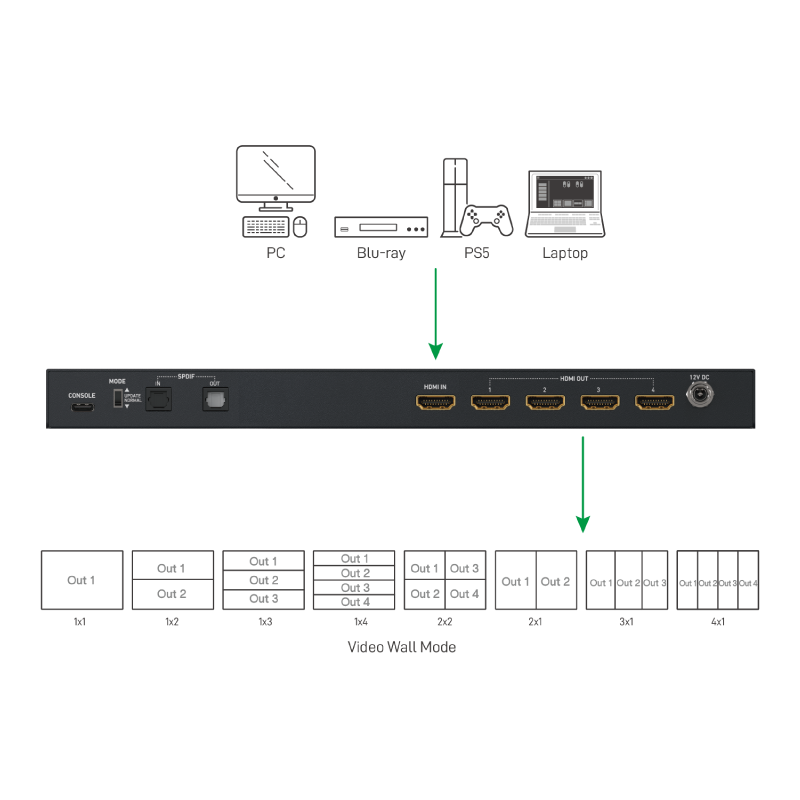

Following the processing, the VW-1404MS sends the video through an HDMI interface to the connected displays or projectors based on the user-defined display configuration. This layout can be readily modified to accommodate a range of applications including digital signage, broadcasting, education, and surveillance systems, thereby ensuring the best possible visual outcomes.
-
HDMI Compliance
-
1.4
-
HDCP Compliance
-
1.4
-
Audio Support
-
Bypass / Programed
-
Control
-
Front Panel / Software
-
ESD Protection
-
8 KV—Contact Discharge
15KV—Air Discharge
-

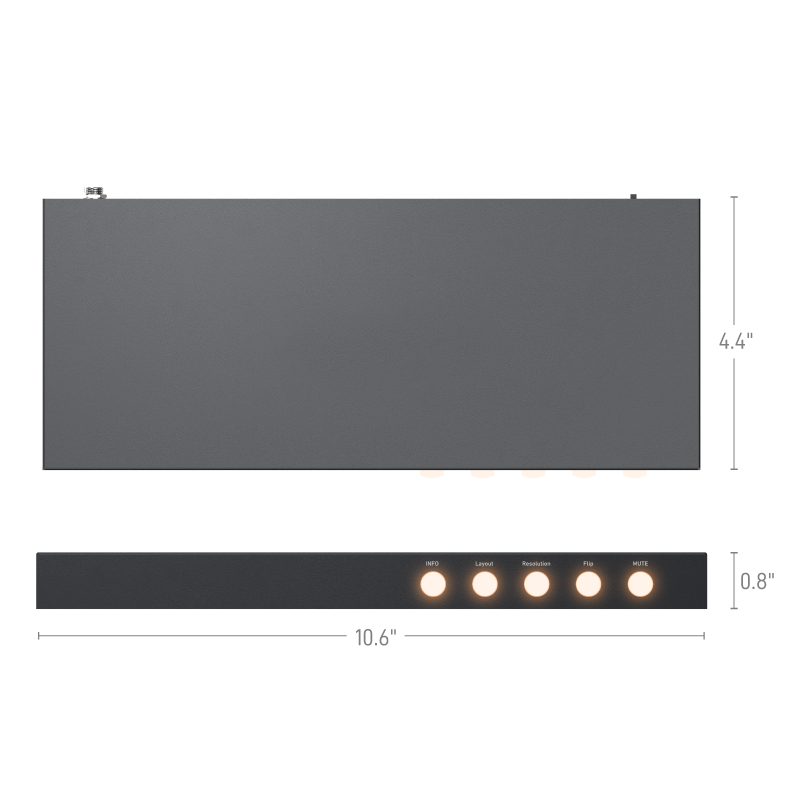

Housing Design
-
Metal
-
Casing Style
-
Standalone
-
Power Connection
-
non-locking Barrel
-
Power Supply
-
12V DC, 1.0A
-
Power Consumption
-
3 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
1.4kg
-
Package Weight
-
2.0kg
-
Certifications
-
CE, FCC, RoHS
