MX-5004MZ2E-CF
4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB 3.0 FHD Video Capture Function

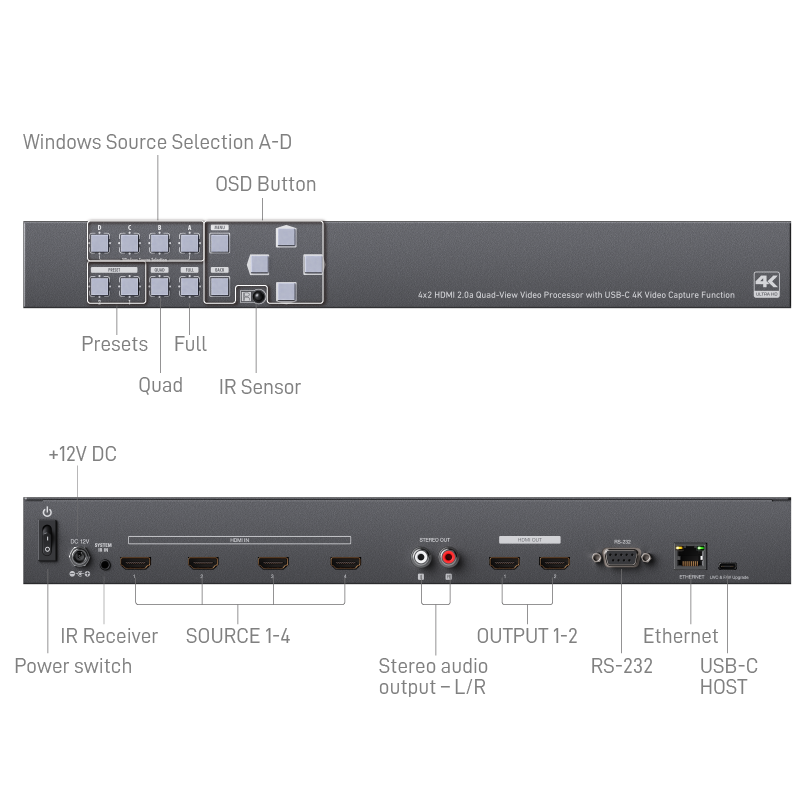

- 4x HDMI inputs and 2x HDMI outputs
- Input resolutions support from 640x480 to 4096x2160@60Hz (4:4:4 8bits), interlaced or progressive
- Output resolutions support up to 4K2K@60Hz (4:4:4 8bits)
- Adjustable size & position through software
- Supports PIP, PBP, POP, full screen & quad-view display
- HDCP 1.4/2.2 compliant
- Firmware upgradable to support of new features and technology enhancements
- Titles, borders and colored backgrounds
- Supports Background picture & logo update
- Resize, position, zoom & pan and blend output video
- Supports seamless, fade-in-&-out, wipe and dissolve switching on full screen mode
- Pure unaltered uncompressed 7.1ch digital HDMI
- Software control through RS-232 and Ethernet
- Supports IR remote control
- Supports USB-C 4K Video Capture
- ﹂HDMI video and audio streams over USB 3.1 Type-C Gen 1
- ﹂Supports UVC1.0
- ﹂Supports video resolution up to 4K2K@30
- ﹂Supports deinterlace & scaler
Overview

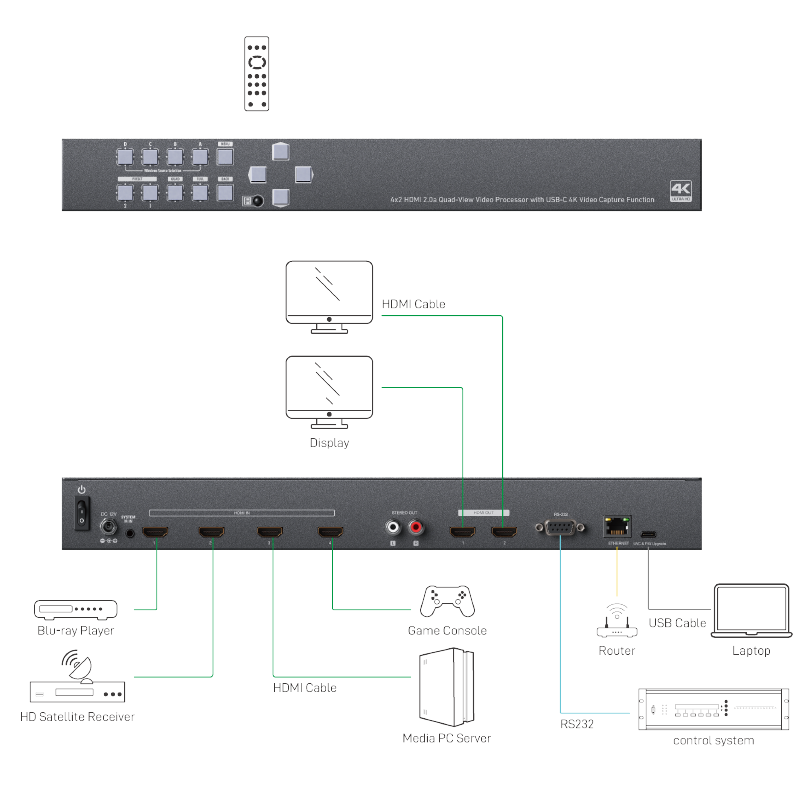

The MX-5004MZ2E-CF 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB-C 4K Video Capture Function provides the most flexible and cost effective solution in the market to route ultra-high definition video source from any of the four UHD HDMI sources to the remote display at the same time. Using powerful built-in USB-C capture & auto scale down features, users can broadcast up to 4K2K@30 video & 2ch audio thru real-time on line software, such as skype. This unique function makes this 4K video processor perfectly work as a live switch for either educational or multiple commercial applications. This solution is also well suited for use in digital signage, conference room presentation systems or other similar settings or applications. With up to 4K2K60 4:4:4 output resolution, users can display the mixed video with improved presentation quality. In the meantime, the unit can be controlled thru the popular serial port and Ethernet port to provide the most flexible control way to fit into any applications.
SPECIFICATIONS
Technical
-
HDMI Compliance
-
2.0
-
HDCP Compliance
-
2.2/1.4
-
USB Compliance
-
3.0
-
Max. Data Rate
-
18 Gbps
-
Max. Resolution
-
4K2K@60 (4:4:4—8bits)
4K2K@60 (4:2:0—10bits)
-
Audio Support
-
Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio
-
ESD Protection
-
8 KV—Contact Discharge
15KV—Air Discharge
Mechanical
-
Housing Design
-
Metal
-
Casing Style
-
Rack Mountable
-
Power Connection
-
Interlocking Barrel
-
Power Supply
-
12V DC, 5A
-
Power Consumption
-
20 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-

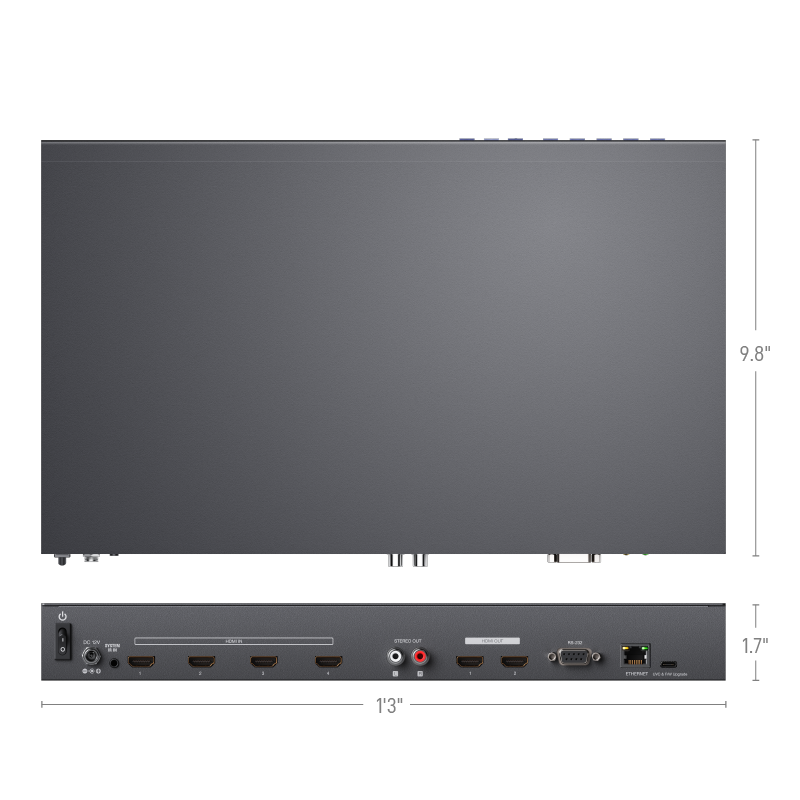

Product Weight
-
2.2kg (5.0 lb.)
-
Package Weight
-
3.5kg (7.8 lb.)
-
Certifications
-
CE, FCC, RoHS
