    CV-57H
    HDMI extender over single cat.X with direct plug-in receiver
    • State-of-the-art Silicon Image (founder of HDMI) chipset embedded for utmost compatibility and reliability
    • Support HDMI Deep Color & 3D
    • HDCP 1.1 compliant
    • Extends the transmission length up to 25m (80ft) from the HDMI sources under HD resolution (1080i or 720p)
    • Extends the transmission length up to 15m (50ft) from the HDMI sources under Full HD resolution (1080p)
    • Wall mounting housing design for easy and robust installation
    • Pure unaltered uncompressed 7.1ch digital HDMI over UTP cable transmission
    • Perfectly integrated with other HDMI over Cat.X series products
    Overview

    The CV-57H HDMI Extender over Single Cat.X with Direct Plug-in Receiver boosts up your video/audio transmission distance up to 25m (80ft) in HDTV 1080i format. With only one cost effective LAN cable, users can directly plug the receiver in to HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors including HDMI/DVI enabled TV sets or LCD PC monitors. This cost effective flexibility makes HDCP compliant DVD players or PS3 transmit high quality video and audio with a greater distance at the minimal cost, when integrating several components apart.

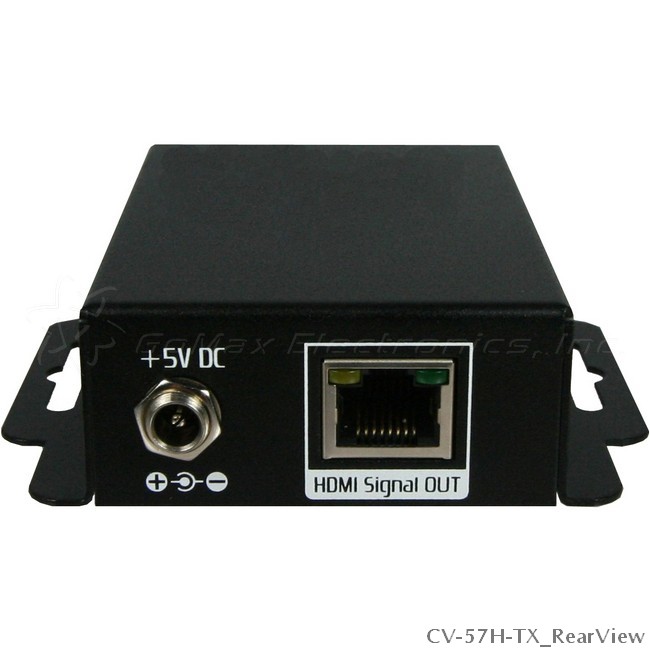

    The CV-57H includes two units: transmitting (CV-57H-TX) and receiving (CV-57H-RX) units. The transmitting unit is used to capture the input HDMI/DVI signals and carry the signals through one RJ45 connector into one cost effective Cat-5/5e/6 cable. The transmission distance between the sending and receiving units can be up to 25m (80ft) under HD (720p/1080i) or 15m (50ft) under Full HD (1080p). With direct plug-in to the HDTV, users do not need to have to find a power outlet for the traditional HDMI over CAT5 receiver and can save an HDMI cable with ease of use.

    SPECIFICATIONS
    Technical
    • HDMI Compliance
    • HDCP Compliance
    • DP compliance
    • USB compliance
    • Max. Data Rate
    • Max. Resolution
    • HDR
    • Latency
    • Audio Support
    • CEC control
    • IR Control
    • IR Frequency
    • EDID Selection
    • RS232 Control
    • ESD protection
    • POC
    • B。SDI Output Formats
    • B。HDMI Input Formats
    • B。SDI Speeds Supported
    • B。Video Sampling
    • B。Audio Sampling
    • B。Auto Switching
    • B。Cable Equalization
    • B。Eye-patten Measurements
    • B。Eye-patten Measurements
    • B。RP-198 pathological patterns
    • C。Cable (Belden 1694A) equalization /ransmission
    • C。Fiber Extension
    • D。Control Interface
    • D。Included Accessories
    Mechanical
    • Housing Design
    • Casing Style
    • Power Connection
    • Power Supply
    • Power Consumption
    • Operating Humidity
    • Operation temperature
    • Product Weight
    • Package Weight
    • Certifications
