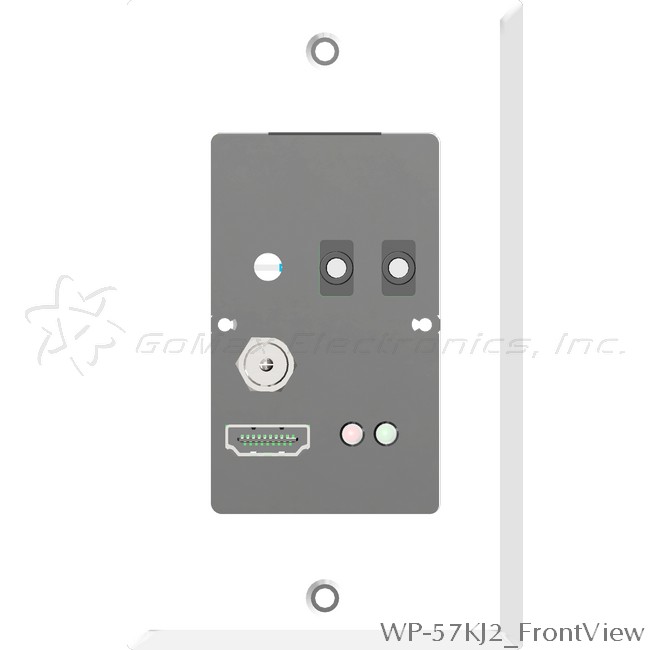

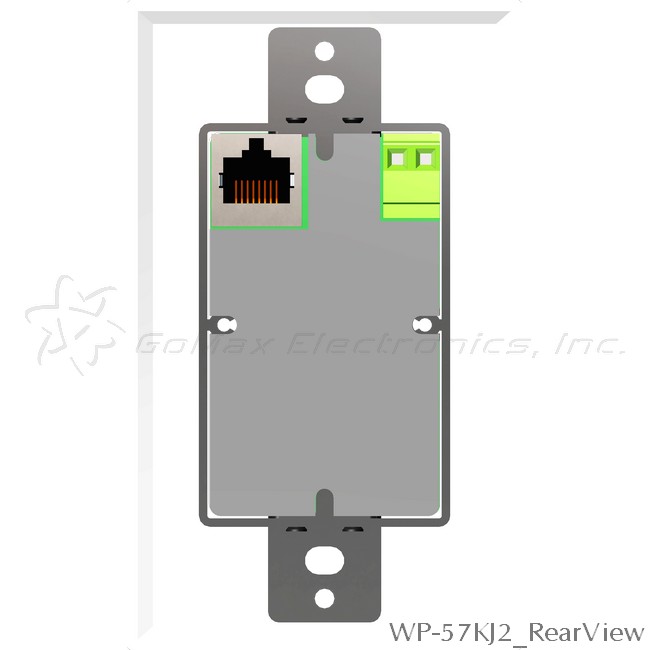

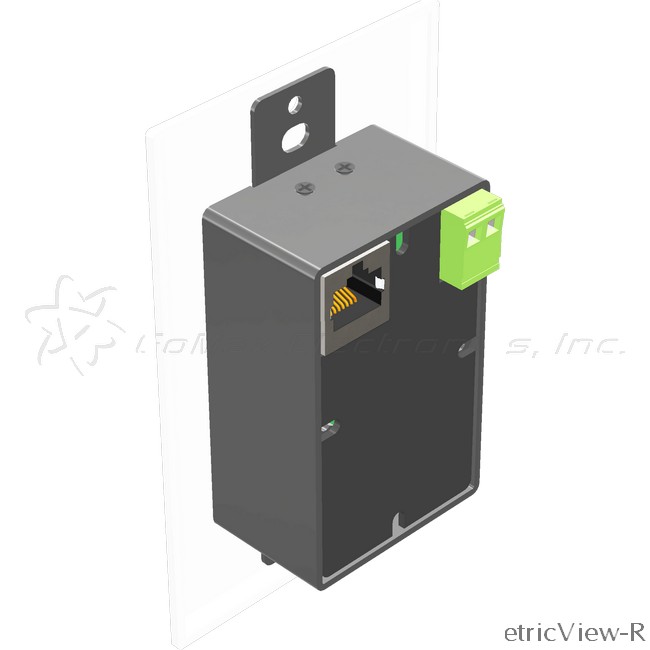

    WP-57KJ2(US; 1 Gang)
    HDMI Wall Plate extender over single cat.X with bi-directional IR, and Auto EDID Learning
    • Support HDMI Deep Color & full 3D
    • Extends the transmission up to 50m (165ft) from the HDMI source at HD 1080i or 720p 24-bit
    • Extends the transmission up to 40m (130ft) from the HDMI source at Full HD 1080p 24-bit
    • Extends the transmission up to 20m (65ft) from the HDMI source at Full HD 1080p 36-bit
    • HDCP 1.1 compliant
    • Auto EDID feature
    • Minimizes the cable skew by adjustable 8-level equalization control
    • Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
    • DTS-HD and Dolby TrueHD high bit rate audio support
    • Supports full frequency IR signal from 20KHz to 60KHz
    • Bi-directional IR path
    • Wall mounting housing design for easy and robust installation
    • Perfectly integrated with other HDMI over CAT5 series products
    Overview

              The WP-57KJ2 HDMI Wall Plate extender over single cat.X with bi-directional IR, and Auto EDID Learning boosts up your video/audio transmission distance up to 50m (165ft) in HDTV 1080i format, 40m (130ft) in HDTV 1080p format, and 20m (65ft) in HDTV 1080p with 36-bit color depth. WP-57KJ2 also supports the most advanced 3D video format and therefore guarantees the highest 3D video compatibility on the market. With only one cost effective Cat.5/5e/6 cable, users can readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors including HDMI or DVI enabled TV sets or LCD PC monitors. With the advanced design for the latest HDMI technology, deep color video, DTS-HD Master Audio or Dolby TrueHD audio, and HDCP supports and compatibility are all further insured. This flexibility makes HDCP compliant DVD players or PS3 transmit utmost high quality video and audio with a greater distance at the minimal cost, when integrating several components apart. In addition, WP-57KJ2 is also equipped with bi-directional IR pass-through path. These bonus feature allows users to boost IR control distance up to 100m (330 ft) and makes IR control possible through only single Cat.5/5e/6 cable including HDMI signals. In addition, serial port offers the convenient path for interactive application, such as touch panels.
              The WP-57KJ2 includes two units: transmitting unit WP-57KJ2-TX and receiving unit WP-57KJ2-RX. The transmitting unit is used to capture the input HDMI / DVI signals with IR control packets and carry the signals via one cost effective Cat.5/5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR signals. The transmission distance between the sending and receiving units can be up to 50m (165ft) at HD 720p or 1080i; or 40m (130ft) at Full HD 1080p. With an 8-level equalization rotary control on the receiving unit, users can adjust the equalization strength to the received HDMI signals accordingly, and therefore optimize the transmission distance between source and destination.
