    CV-57KG
    HDMI extender over single cat.X with full 3D support
    • Support HDMI Deep Color & full 3D
    • Extends the transmission up to 50m (165ft) from the HDMI source at HD 1080i or 720p 24-bit color
    • Extends the transmission up to 40m (130ft) from the HDMI source at Full HD 1080p 24-bit color
    • Extends the transmission length up to 20m (65ft) from the HDMI sources under Full HD resolution (1080p at 36-bit color depth)
    • HDCP 1.1 compliant
    • Minimizes the cable skew by adjustable 8-level equalization control
    • Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
    • DTS-HD and Dolby TrueHD high bit rate audio support
    • Allows cascading
    • Wall mounting housing design for easy and robust installation
    • Perfectly integrated with other HDMI over CAT5 series products
    Overview

    The CV-57KG HDMI extender over single cat.X boosts up your video/audio transmission distance up to 60m (200ft) in HDTV 1080i format, 40m (130ft) in HDTV 1080p format, and 20m (65ft) in HDTV 1080p with 36-bit color depth. CV-57KG also supports the most advanced 3D video format complaint with HDMI specification and therefore guarantees the highest 3D video compatibility on the market. With only one cost effective Cat.5/5e/6 cable, users can readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors including HDMI/DVI enabled TV sets or LCD PC monitors. This flexibility makes HDCP compliant DVD players or PS3 transmit utmost high quality video and audio with a greater distance at the minimal cost, when integrating several components apart.

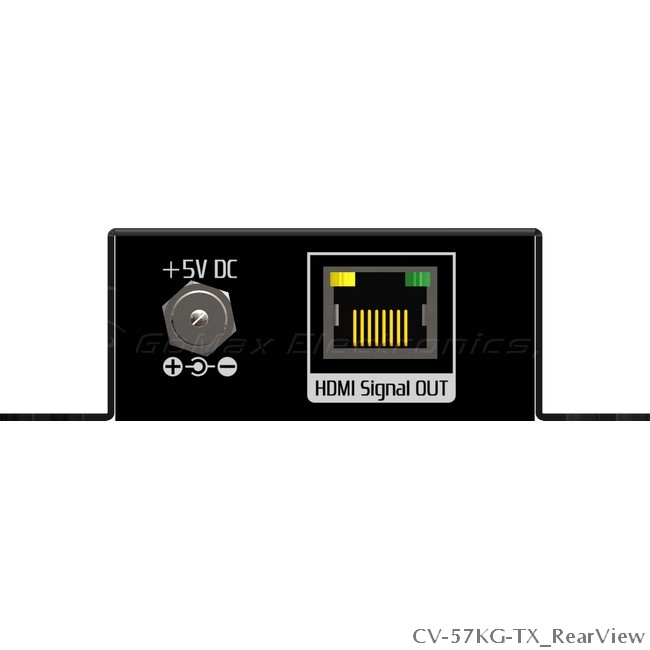

    The CV-57KG includes two units: transmitting unit CV-57KG-TX and receiving unit CV-57KG-RX. The transmitting unit is used to capture the input HDMI/DVI signals and carry the signals via one cost effective Cat.5/5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal. The transmission distance between the sending and receiving units can be up to 60m (200ft) at HD 720p or 1080i; or 40m (130ft) at Full HD 1080p. With an 8-level equalization rotary control on the receiving unit, users can adjust the equalization strength to the received HDMI signals accordingly, and therefore optimize the transmission distance between source and destination.

    SPECIFICATIONS
    Technical
    • HDMI Compliance
    • 1.3

    • HDCP Compliance
    • 1.1

    • Max. Distance
    • Up to 1080p60@40m (Cat 5e/6) -@50m (Cat 6a)
      Up to 720p60@60m (Cat 5e/6) -@70m (Cat 6a)

    • Max. Data Rate
    • 6.75 Gbps

    • Max. Resolution
    • 1080p@60 (4:2:2—12bits)
      1080p@60 (4:4:4—8bits)

    • Audio Support
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio

    • CEC control
    • Pass through

    • ESD protection
    • 8 KV—Contact Discharge
      15KV—Air Discharge

    Mechanical
    • Housing Design
    • Metal

    • Casing Style
    • Wall Mountable

    • Power Connection
    • Interlocking Barrel

    • Power Supply
    • 5V DC, 2A

    • Power Consumption
    •   ᚜ TX;4 watts (Max.)
        ᚜ RX;1.5 watts (Max.)

    • Operating Humidity
    • 20-90% RH (no condensation)

    • Operation temperature
    • 0~40°C (32~104°F)

    • Product Weight
    •   ᚜ TX;200g (0.4 lbs)
        ᚜ RX;196g (0.4 lbs)

    • Package Weight
    • 685g (1.5 lbs)

    • Certifications
    • CE, FCC, RoHS
