REC-515UHD
4K UHD H.264 & H.265 Video Streaming Encorder / Recorder
- Broadcast level video quality
- HDMI 2.0 auto resolution detection for HEVC encoder or decoder
- Supports HEVC (H.265) & AVC (H.264) main 4:2:0 8 bit, compression and decompression
- Supports video compression up to 4K60(H.265) / 4K30(H.264)
- Supports bitrate up to 120Mbps (H.265)/ 100Mbps(H.264), CBR/VBR
- Supports stereo audio codec (16 bit/48KHz/AAC)
- Supports HDMI 2.0a & HDCP 2.2
- Supports playback and record file formats: MP4 (H.265 + AAC) or (H.264 + AAC)
- Supports streaming protocol include TCP, UDP, RTP, RSTP, RTMP, RTMPS, HLS & SRT
- Supports dual stream broadcasting when recording

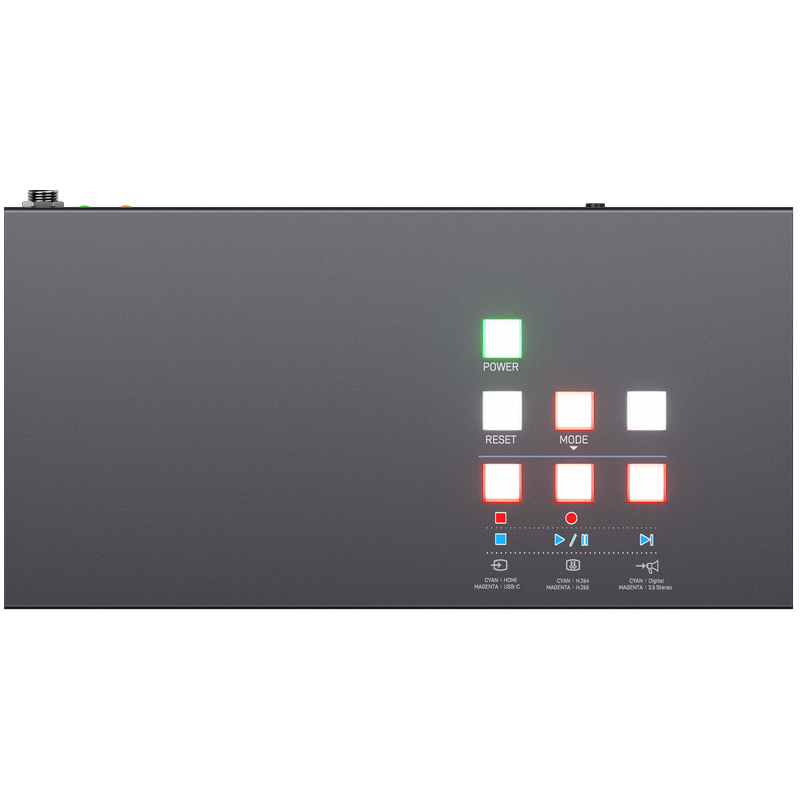

- Supports front panel push button, APP, web interface & IP control
- Estimated Record Time: UHD 32GB: 7HR (8Mbps)~1.7HR (32Mbps)
- Records video to USB flash drive, SD card & HDD/SSD
- Firmware upgradable
Overview
REC-515UHD can perform H.264 streaming and recording simultaneously and can also serve as a dual multi-platform video streaming server while recording. It supports different bitrates for recording and streaming based on the applications and requirement. REC-515UHD also equips H.265 codec engine to allow users to record A/V contents up to 4K/60 444 with only half storage consumption.
REC-515UHD is a convenient, easy-to-use video streaming and recording device built for professional video producers. Streaming A/V can be compatible with RTSP／TCP／UDP／RTP／RTMP／RTMPS／SRT／HLS and make streaming to YouTube, Facebook and many other platforms instant and easy. Recording on SD card or external HDD for video storage is also supported and REC-515UHD can record MP4 or TS files to an SD card configured in FAT /NTFS file system, which eases file size limitation concerns.
REC-515UHD can be remotely controlled by PC Windows, Mac, or mobile devices thru a web browser. Friendly control approaches make multiple scenarios feasible and pratical.
REC-515UHD is a convenient, easy-to-use video streaming and recording device built for professional video producers. Streaming A/V can be compatible with RTSP／TCP／UDP／RTP／RTMP／RTMPS／SRT／HLS and make streaming to YouTube, Facebook and many other platforms instant and easy. Recording on SD card or external HDD for video storage is also supported and REC-515UHD can record MP4 or TS files to an SD card configured in FAT /NTFS file system, which eases file size limitation concerns.
REC-515UHD can be remotely controlled by PC Windows, Mac, or mobile devices thru a web browser. Friendly control approaches make multiple scenarios feasible and pratical.
SPECIFICATIONS
Technical
-
HDMI Compliance
-
2.0
-
HDCP Compliance
-
2.2
-
Video Input
-
1⨯ USB-C；1⨯ HDMI 2.0
-
Video Loopout
-
1⨯ HDMI 2.0
-
Audio Input / Output
-
1⨯ 3.5mm jack
-
USB Interface
-
1*USB-A 3.0
-
Max. FPS
-
3840×2160p@60 (50fps)
-
Encoding / Decoding
-
HEVC (H.265) & AVC (H.264) main 4:2:0 8 bit compression and decompression; Bitrate up to 120Mbps (H.265)/ 100Mbps(H.264);
-
Video Support
-
UHD Video Standards／1080p at 50/59.94/60 Hz (4:2:2)
HD Video Standards／720p at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz
SD Video Standards／NTSC at 59.94 Hz, PAL at 50 Hz
-
Audio Support
-
Sample Rate : 48KHz, 16bit, Stereo / AAC
-
Transmission Protocols
-
RTSP／TCP／RTP／RTMP／SRT
-
Console Management
-
APP／WebGUI／PC
Mechanical
-
Housing Design
-
Metal
-
Casing Style
-
Portable
-
Power Connection
-
20 watts (Max.)
-
Power Supply
-
12V DC, 2A
-
Power Consumption
-
20 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
480g
-
Package Weight
-
980g
-
Certifications
-
CE, FCC, RoHS
