SW-3108
8x4 3G/HD/SD-SDI switch
- 3G HD/SD-SDI Switch

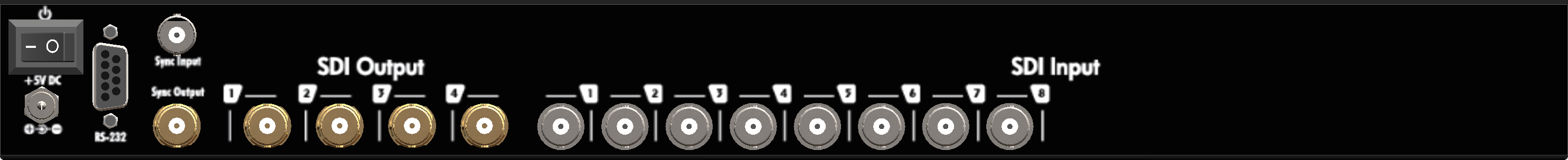

- Up to 8 input & 4 re-timing SDI outputs
- Dual Color indication LED of 3G HD/SD of the output SDI
- Automatic detection of the SDI Input
- Synchronizes input/output (switch after vertical sync)
- Provides the equalized and reclocked* transmission path up to 300m (1000ft) at SD-SDI , 150m (500ft) at HD-SDI or 100m (500ft) at 3G HD-SDI
- Multiple control by RS-232, IR remote, and push button
Overview
This SW-3108 receives, equalizes, and reclocks up to 8 SDI inputs, perfectly switches the desired input to SDI equipped monitors or receivers. The switch supports both HD/SD-SDI bit rates, and the re-transmitted quality is guaranteed. Through RS-232, IR remote, or front panel push button, the control of the SDI switch becomes versatile and easier. SW-3108 offers the most convenient and cost effective means for swift switch and duplication of high quality SDI in the market.
