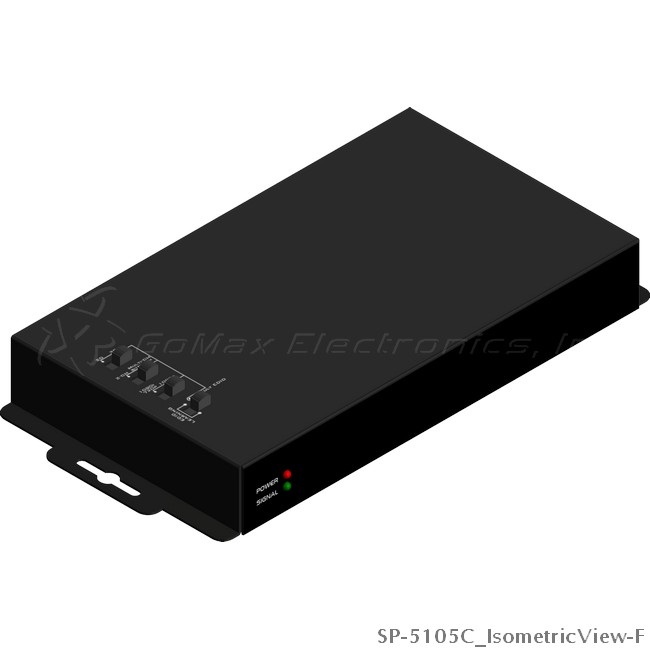

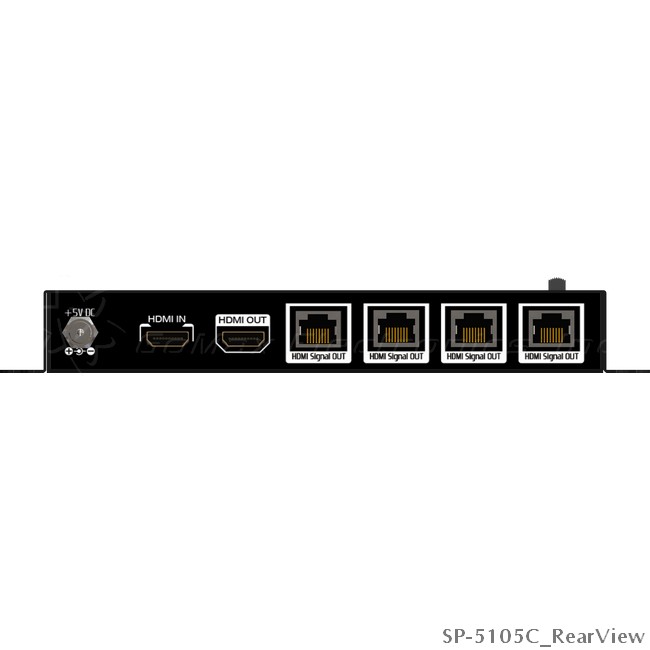

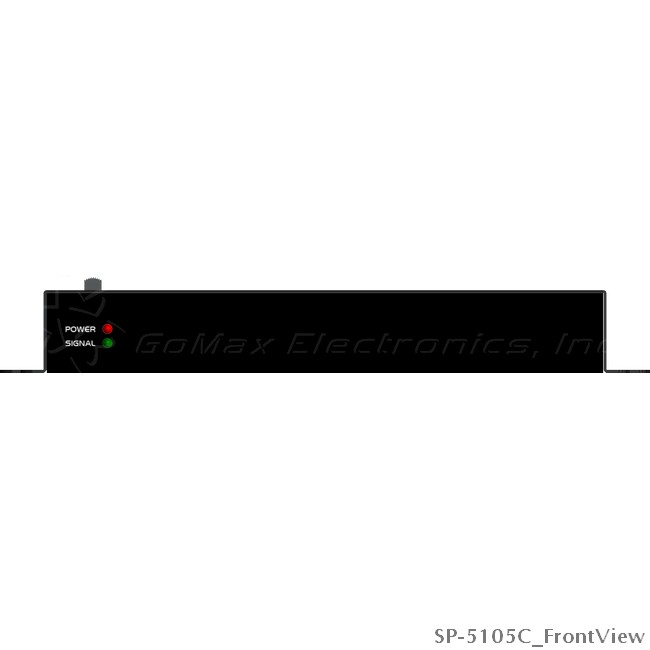

    SP-5105C
    1x4 HDMI splitter over single cat.X with local out
    • State-of-the-art Silicon Image (founder of HDMI) chipset embedded for upmost compatibility and reliability
    • Support HDMI Deep Color & 3D
    • HDCP compliant
    • HDMI 3D video support wide frequency range 25MHz-225MHz
    • Regenerates the HDMI signal
    • HDMI local output for monitoring
    • Supports default HDMI EDID and has the ability to learn the EDID of displays
    • Extends up to 20m (66ft) of input HDMI cable
    • Extends up to 60m (200ft) of output Cat-5/5e/6 solid UTP cable under HD (720p / 1080i)
    • Extends up to 40m (130ft) of output CAT-5/5e/6 solid UTP cable under Full HD (1080p)
    • Pure unaltered uncompressed 7.1ch digital HDMI over Cat.X cable transmission
    • Repeater CV-57R2 enables daisy chain connection up to 3 layers for transmitting single to 120m away
    • Perfectly integrated with other HDMI over Cat.X series products
    • Wall-Mountable
    Overview

    The SP-5105C 1x4 HDMI Splitter over Cat.X with Local Out provides the most flexible solution by which the high definition video and high quality audio can be transmitted to different locations over a long distance. The devices are cascadable, allowing you to extend HDMI compliant displays almost anywhere. The input HDMI source can be duplicated and distributed to up to 8 HDMI enable displays through cost effective Cat-5/5e/6 cables with HDMI over CAT5 receivers (CV-735 and/or CV-715s). For convenience, SP-5105C is also equipped a local HDMI output for monitoring. With the built in equalization, the input HDMI cable can be extended up to 20 meters (66 feet) long under Full HD, and make the overall transmission distance superior than regular HDMI splitters or matrix switches in the market.

    SPECIFICATIONS
    Technical
    • HDMI Compliance

    • 1.3

    • HDCP Compliance

    • 1.1

    • Max. Distance

    • Up to 1080p60@40m (Cat 5e/6) -@50m (Cat 6a)
      Up to 720p60@60m (Cat 5e/6) -@70m (Cat 6a)

    • Max. Data Rate

    • 6.75 Gbps

    • Max. Resolution

    • 1080p@60 (4:2:2—12bits)
      1080p@60 (4:4:4—8bits)

    • Audio Support

    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio

    • CEC control

    • Pass through

    • ESD protection

    • 8 KV—Contact Discharge
      15KV—Air Discharge

    Mechanical
    • Housing Design

    • Metal

    • Casing Style

    • Wall Mountable

    • Power Connection

    • Interlocking Barrel

    • Power Supply

    • 5V DC, 4A

    • Power Consumption

    • 13 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    • 588g (1.2 lbs)

    • Package Weight

    • 1000g (2.2 lbs)

    • Certifications

    • CE, FCC, RoHS
