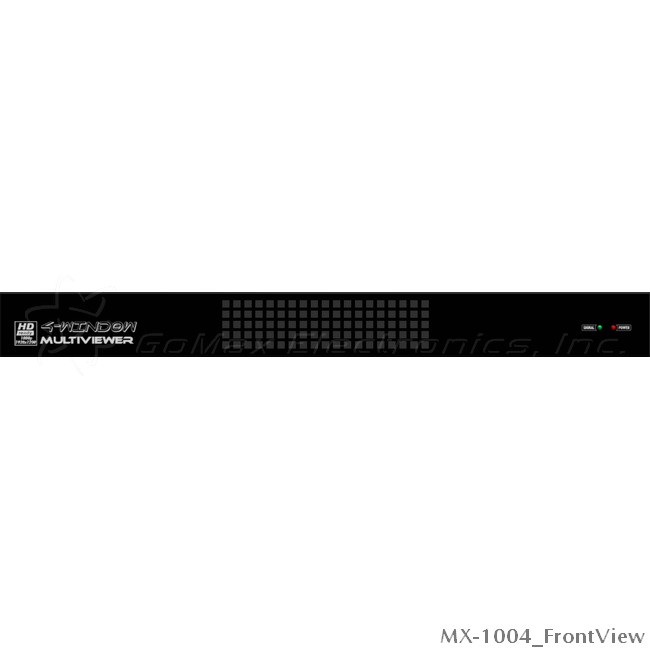

    MX-1004
    Quasi quad-view video processor
    • Four VGA, three DVI, three component and three composite inputs, from 640x480 to 1920x1200, interlaced or progressive
    • Dual outputs (DVI / VGA), 640x480 to 1920x1200
    • Adjustable size & position through software
    • Titles, borders and colored backgrounds
    • Resize, position, flip, zoom & pan and blend output video
    • Can be cascaded to obtain more images
    • Image parameters and layouts can be saved in computers and can be loaded for later use
    • Video parameters adjustable (brightness, contrast, color temperature, etc.)
    • User-selectable output settings, up to 1920x1200
    • Perfectly as a video screen splitter, a video converter and a video switcher
    • Firmware upgradable for support of new features and technology enhancements
    • Software control through RS-232 / RS-485 over Cat-5
    • 1RU size
    Overview

    The MX-1004 Quasi Quad-View Video Processor is an advanced video processor for multimedia presentations. It is an ideal solution for applications where up to four video signals must be displayed on a single display. It supports up to 10 video inputs, of which four can be outputted simultaneously with the desired display layout through software control. The advanced video processor allows you to manipulate output images, wherever positions and whatever sizes you want for viewing two computers or two video signals or a combination.
    The embedded scaler converts signals from input sources to match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up to WUXGA (1920x1200). Dual outputs are provided in both analog (VGA) and digital (DVI) format, one is connected to remote display and the other is connected to on-site display for real time monitoring.

    SPECIFICATIONS
    Technical
    • HDMI Compliance
    • HDCP Compliance
    • DP compliance
    • USB compliance
    • Max. Data Rate
    • Max. Resolution
    • HDR
    • Latency
    • Audio Support
    • CEC control
    • IR Control
    • IR Frequency
    • EDID Selection
    • RS232 Control
    • ESD protection
    • POC
    • B。SDI Output Formats
    • B。HDMI Input Formats
    • B。SDI Speeds Supported
    • B。Video Sampling
    • B。Audio Sampling
    • B。Auto Switching
    • B。Cable Equalization
    • B。Eye-patten Measurements
    • B。Eye-patten Measurements
    • B。RP-198 pathological patterns
    • C。Cable (Belden 1694A) equalization /ransmission
    • C。Fiber Extension
    • D。Control Interface
    • D。Included Accessories
    Mechanical
    • Housing Design
    • Casing Style
    • Power Connection
    • Power Supply
    • Power Consumption
    • Operating Humidity
    • Operation temperature
    • Product Weight
    • Package Weight
    • Certifications
