DAN-505VU
Dante AV HDMI 2.0 over IP Multicast Transceiver System with Bi-directional IR, RS-232, Audio Extender/Extractor, USB & Video Wall Support
- HDMI2.0b compliant
- Supports video resolutions up to 4K2K@60 4:4:4 8bits/ 4:2:0 10bits
- Supports High Dynamic Range (HDR)
- HDCP 2.2 and 1.4 compliant
- Supports PoE function
- Supports EDID management
- Auto equalization
- Supports CEC passthrough
- Can be configured as a transmitter or receiver
- Flexible and scalable UHD Video Broadcasting by Gigabit Ethernet LAN/Switch
- One to one, one to many & multi-casting broadcasting architecture
- Analog audio over IP transmission from transmitter to receiver
- Pure unaltered uncompressed 7.1ch digital HDMI over IP transmission
- DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
- Supports video test pattern (color bar), which can be generated to test streaming
- Supports Video Wall function
- Supports bi-directional full frequency IR signal from 20KHz to 60KHz (half-duplex)
- Supports USB2.0
Overview

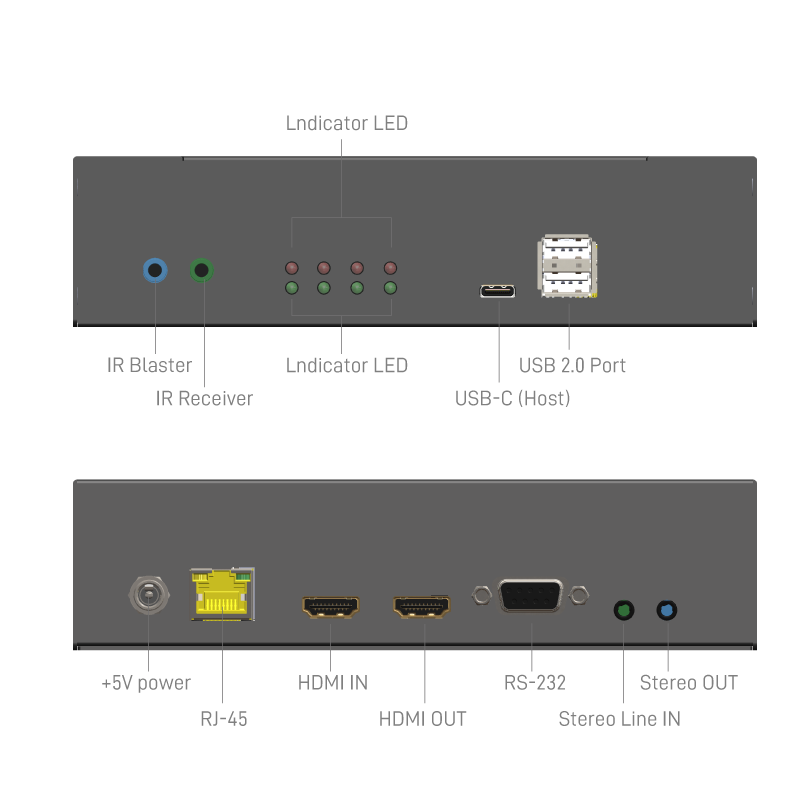

The DAN-505VU Dante AV HDMI 2.0 over IP Multicast Transceiver System with Bi-directional IR, RS-232, Audio Extender/Extractor, USB & Video Wall Support extends your video and audio transmission up to 100m(330ft)** over standard copper Ethernet cabling, delivering Ultra-HD 4K2K@60Hz (4:4:4) resolution. This system makes it easy to distribute Ultra-HD content from sources like Apple TV, PlayStation, Xbox, PCs, or any HDMI-enabled device to remote displays or monitors, including HDMI or DVI-compatible TVs and LCD screens. The DAN-505VU is HDCP compliant and supports IR and RS-232 pass-through, audio extraction and extension, and video wall capabilities.

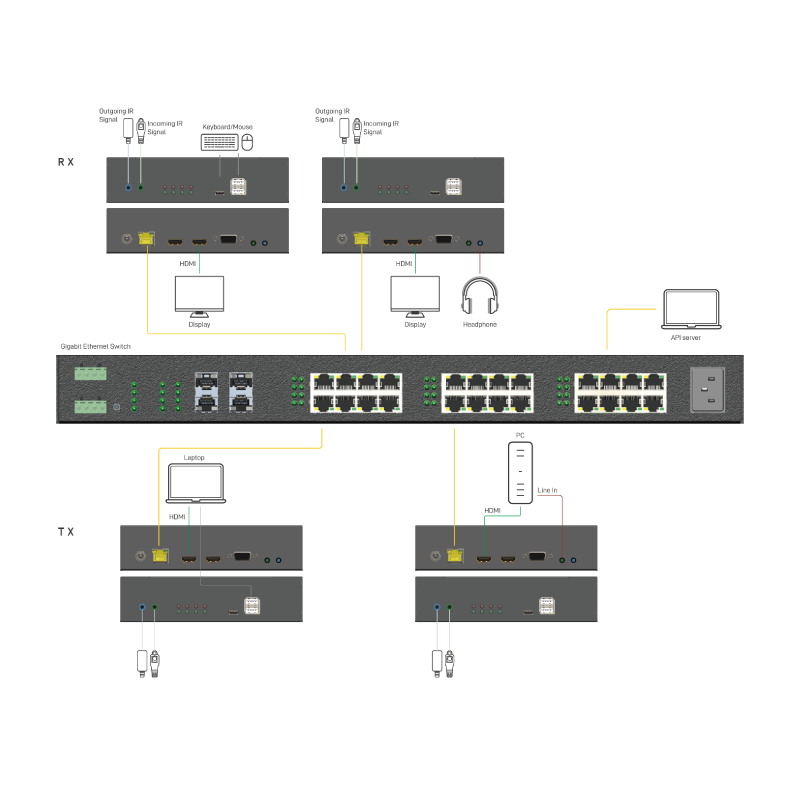

With the broadcasting management software and a 1 Gigabit Ethernet network switch (supporting IGMP Snooping), the DAN-505VU delivers a complete 4K2K@60Hz (4:4:4) video-over-IP solution ideal for a wide range of applications—including healthcare, digital signage, and more. It supports multiple broadcast configurations, including point-to-point, point-to-multipoint, and multicast streaming. Multicast mode relies on a managed 1 Gigabit switch with 802.1Q VLAN support, allowing centralized control and integration across multiple devices.
With the broadcasting management software and a 1 Gigabit Ethernet network switch (supporting IGMP Snooping), the DAN-505VU delivers a complete 4K2K@60Hz (4:4:4) video-over-IP solution ideal for a wide range of applications—including healthcare, digital signage, and more. It supports multiple broadcast configurations, including point-to-point, point-to-multipoint, and multicast streaming. Multicast mode relies on a managed 1 Gigabit switch with 802.1Q VLAN support, allowing centralized control and integration across multiple devices.
SPECIFICATIONS
Technical
-
Encoder/Decoder
-
Device can be configured to work as an encoder or a decoder.
-
Video Resolutions
-
Up to 4096x2160@60Hz; RGB 4:4:4 @ 8 bit YCbCr 4:4:4 @ 8 bit YCbCr 4:2:2 @ 8/10/12 bit
-
Color Depth
-
8-bit, 10-bit, 12-bit
-
Audio Formats
-
Dante Audio over IP
-
Video Streaming
-
Unicast or Multicast
-
IR pass-thru
-
Bi-directional

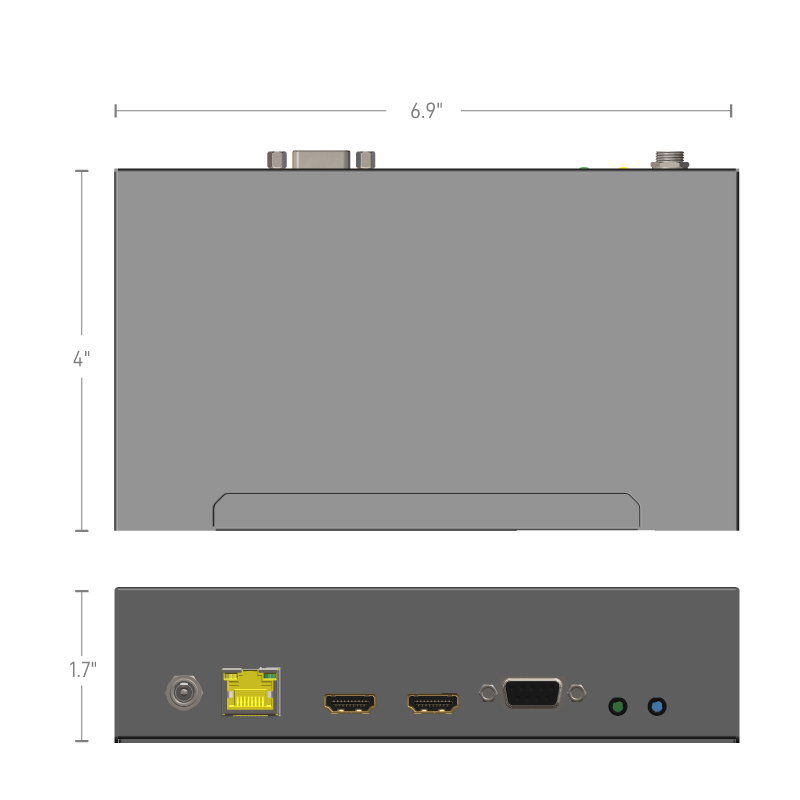

Mechanical
-
Housing Design
-
Aluminum
-
Casing Style
-
Standalone
-
Power Connection
-
Interlocking Barrel / Class 1 802.3af POE PD compliant
-
Power Supply
-
5V DC, 1A
-
Power Consumption
-
5 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
165g
-
Package Weight
-
275g
-
Certifications
-
CE, FCC, RoHS
