    PS-5004MS
    4-Port HDMI Quad-Viewer & Seamless KVM Switch with USB 3.1 Gen 1 HUB & mouse roaming
    • Supports input resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, and 4K30
    • Supports output resolutions: 720p@60, 1080p@60, and 4K30
    • HDCP 1.4 compliant
    • Supports 3 display modes: One View Mode, Quad View Mode, and Quad View Cycled Mode
    • Supports seamless switching in One View Mode
    • Supports mouse roaming
    • Supports separate line input and output
    • Plug and play — no drivers required
    • Features a built-in 4-port USB 3.1 Gen 1 hub for sharing USB devices
    • Supports independent HID keyboard and mouse ports
    • Supports hotkeys
    • Video bandwidth: 7.2 Gbps
    • Firmware upgradable to support new features and technology enhancements
    • Allows input switching via push buttons
    Overview

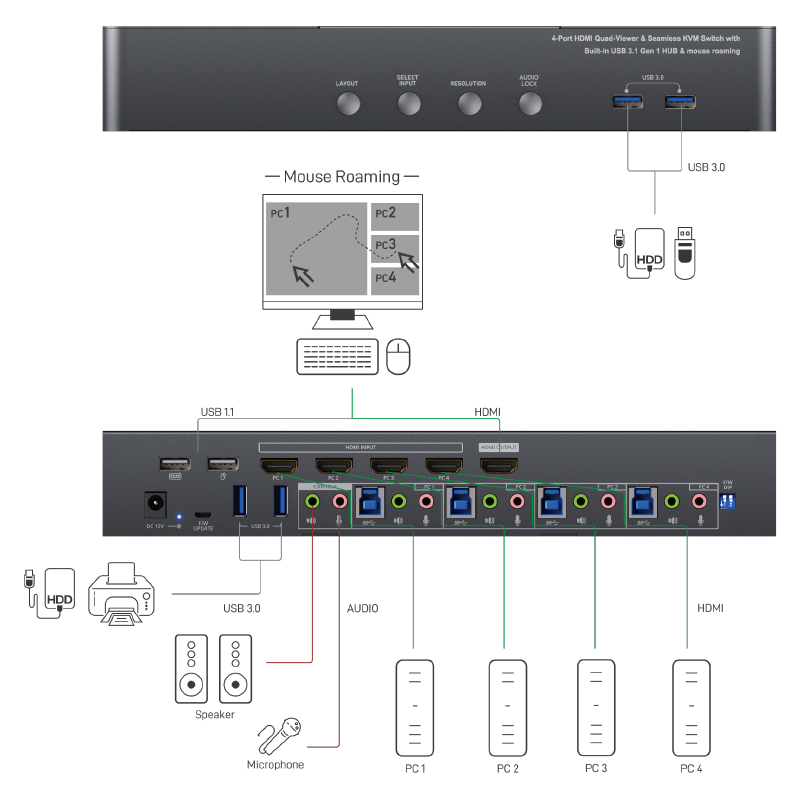

    The PS-5004MS 4-Port HDMI Quad-Viewer & Seamless KVM Switch with USB 3.1 Gen 1 HUB & mouse roaming provides the most flexible and cost-effective solution for multiple computer management at home and in the office. The KVM switch allows users to control four HDMI USB computers using a single set of console peripherals, including a keyboard, mouse, and monitor.
    With a built-in USB 3.1 Gen 1 hub, users can easily share USB peripheral devices among connected computers. Plus, the KVM switch offers a range of dynamic video layouts, effortless switching in single-view mode, and an intuitive mouse roaming function — delivering a smooth and efficient multitasking experience.
    SPECIFICATIONS
    Technical
    • Video﹁

    • HDMI

    • 4Kx2K @30Hz, HDCP 1.4

    • Bandwidth

    • 7.2Gbps

    • Input Resolution

    • 480i／480p／576i／576p／720p／1080i／1080p／4K30

    • Output Resolution

    • 720p60／1080p60／4K30

    • USB 3.1 gen1

    • 4x Type-A & 4x Type-B

    • USB 1.1

    • 2x Type-A, up to 12Mbps

    • Audio﹁

    • 7.1 channel surround sound

    • PCM 2.0 channel stereo digital audio

    • OS Compatibility

    • Windows®, macOS®

    Mechanical
    • Housing Design

    • Metal

    • Casing Style

    • Standalone

    • Power Connection

    • Interlocking Barrel

    • Power Supply

    • 12V DC, 1A

    • Power Consumption

    • 12 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Info

    • Dimensions：282 (L) x 112 (W) x 37 (H) mm
      Weight：930g

    • Unit Package

    • Dimensions：331 (L) x 162 (W) x 204 (H) mm
      Weight：2.5kg

    • Certifications

    • CE, FCC, RoHS
