HUB-2010
10-Port Industrial USB 3.0 Hub with Charging and High Speed Data Transfer Sync (5Gbps)
- 10 USB 3.0 port expansion
- Supports data transfer speeds up to 5Gbps
- Supports USB Battery Charging Specification v1.2 (SDP, CDP, DCP)
- Supports USB charging max output 5V/1.5A
- Supports hot swapping
- Supports plug-and-play
- Backward Compatible with USB 2.0 and 1.1 devices and hosts
- Compatible with Windows, Mac OS and Linux
- Built-in ±15kV air and ±8kV contact ESD protection
- Built-in LED indicator
- External power adapter
- Compact design for easy portability
Overview

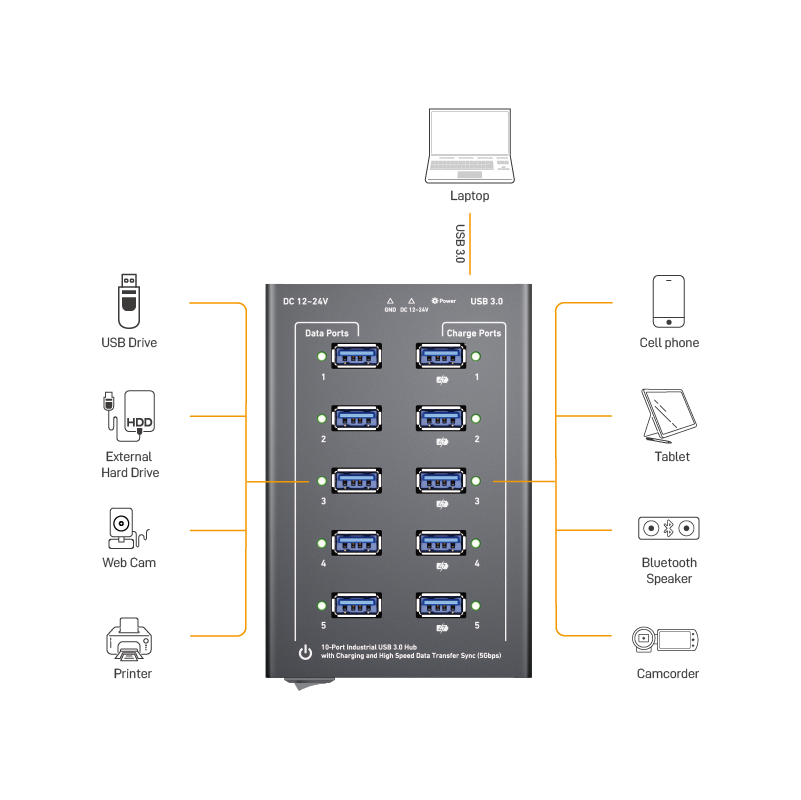

The HUB-2010 10-Port Industrial USB 3.0 Hub with Charging and High Speed Data Transfer Sync (5Gbps) provides a professional method for expanding ten USB 3.0 ports for your computer. With HUB-2010, users can control up to ten devices with USB connectors through one USB port on the laptop or PC. The transfer rate of each USB port is up to 5Gbps, which can save more time. On the other hand, the hub also supports the USB battery charging specification 1.2, allowing you to power all kinds of USB charging devices at the same time. In addition, plug-and-play and compatible with various operating systems make it convenient to use. HUB-2010 can meet the requirements of users to connect a large number of devices in industrial and office environments.
SPECIFICATIONS
Technical
-
USB Compliance
-
USB 1.1/2.0/3.0 compliant
-
Max. Data Rate
-
5Gbps (Maximum)
-
ESD Protection
-
8 KV—Contact Discharge
15KV—Air Discharge
-
Host Port
-
1x USB 3.0 Type B
-
Device Port
-
10x USB 3.0 Type A
-
OS Support
-
Windows 7 /8.1 /10, Mac OS and Linux
Mechanical
-
Housing Design
-
Aluminum
-
Casing Style
-
Portable
-
Power Connection
-
non-locking Barrel
-
Power Supply
-
12-24V DC
-
Power Consumption
-
60 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
0.22kg (7.8 oz.)
-
Package Weight
-
0.32kg (11.3 oz.)
-
Certifications
-
CE, FCC, RoHS
