PS-5544AMC
4-Port HDMI 2.0/Audio Quad-Viewer KVM Switch with USB 3.2 Gen 1 HUB, Mouse Roaming, and OSD & Daisy Chain Control Function
- Supports Quad-Viewer mode function
- HDMI2.0 compliant
- Input resolutions support from 640x480 to 4096x2160@60Hz (4:4:4 8bits), interlaced or progressive
- Output resolutions support up to 4K2K@60Hz (4:4:4 8bits)
- Supports HDR, which is 4K2K@60 4:2:0 10bits
- HDCP 2.2 and 1.4 compliant
- Allows HDMI display to view any HDMI source at any time
- Pure unaltered uncompressed 7.1ch digital HDMI
- User-selectable output settings, up to 4K2K@60
- Layouts are saved in flash memory of the device and can be recalled for later use
- Adjustable size & position through OSD
- Supports PIP, PBP, POP, full screen & quad-view display
- Supports mouse roaming
- Supports OSD control
- Supports Daisy Chain Control
- Supports built-in 2-port USB3.2 Gen 1 HUB to share USB devices
- Supports independent HID keyboard & mouse ports
- Supports audio extraction via Toslink
- Plug and Play without any driver needed
Overview

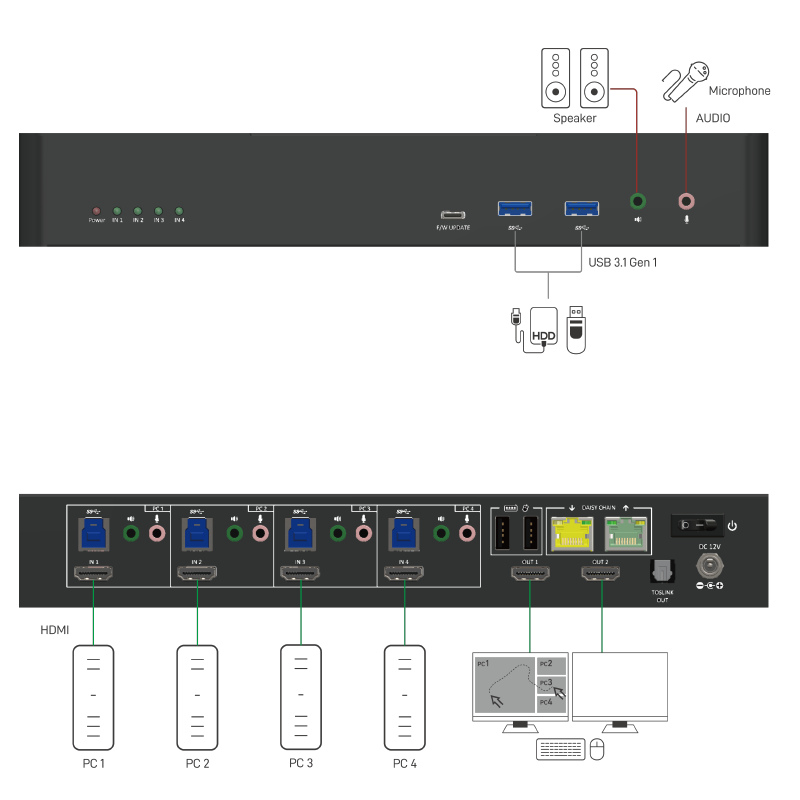

The PS-5544AMC 4-Port HDMI 2.0/Audio Quad-Viewer KVM Switch with USB 3.2 Gen 1 HUB, Mouse Roaming, and OSD & Daisy Chain Control Function offers a versatile and cost-effective solution for managing multiple computers, whether at home or in the office. This KVM switch supports up to 4 HDMI and USB-equipped computers, allowing users to simultaneously select, switch, and display multiple sources using a single set of peripherals (keyboard, mouse, and monitor). It supports video resolutions up to 4K2K@60 and includes a built-in USB 3.2 Gen 1 hub for sharing USB devices across connected computers. The KVM switch also features various video layouts, seamless switching in one-view mode, mouse roaming, and an OSD control function for easy management and configuration. With the Daisy Chain Control function, users can manage additional PS-5544AMC units through a single console.
This KVM switch is well-suited for desktop operations in time-sensitive scenarios that require real-time monitoring of multiple video sources and responsive control, such as in broadcast or surveillance control-desk applications.
This KVM switch is well-suited for desktop operations in time-sensitive scenarios that require real-time monitoring of multiple video sources and responsive control, such as in broadcast or surveillance control-desk applications.
SPECIFICATIONS
Technical
-
Video﹁
-
HDMI
-
4Kx2K @60Hz, HDCP 2.2, 3D, Deep color
-
Bandwidth
-
Single-link 600MHz, Up to 18Gbps
-
Resolution
-
Up to HDR 4K2K@60(4:2:0 10bits)
4K2K@60 (4:4:4 8bits)
Note: 3440x1440 not supported
-
PCM 2.0 channel stereo digital audio
-
USB 3.0
-
4x Type-A, Gen 1 up to 5Gbps
-
USB 1.1
-
2x Type-A, up to 12Mbps
-
Audio﹁
-
7.1 channel surround sound
-
OS Compatibility
-
Windows®, macOS®
Mechanical
-
Housing Design
-
Metal
-
Casing Style
-
Standalone
-
Power Connection
-
Interlocking Barrel
-
Power Supply
-
12V DC, 2A
-
Power Consumption
-
24 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
Dimensions：7.95” (L) x 1.46” (H) x 4.42” (W)
Weight：930g
-
Package Weight
-
Dimensions：13.03" (W) x 8.03" (H) x 6.37" (D)
Weight: 2.5kg
-
Certifications
-
CE, FCC, RoHS
