CV-505Q
HDMI 2.1 Audio Extractor & Embedder
- HDMI 2.1 compliant
- Supports up to 8K60 4:2:0 10bits, 8K30 4:4:4 & 4K2K 120Hz
- Supports HDR1, which is 4K2K@60 10bits/12bits2 & Dolby Vision
- Supports VRR(Variable Refresh Rate) & ALLM(Auto Low Latency Mode)*
- HDCP 2.3 and 1.4 compliant
- Wide frequency range: 25MHz~1188MHz
- Video bandwidth: 48G
- Supports resolution downscaling from 8K to 4K & 4K to 1080P
- Supports resolution upscaling from 4K to 8K & 1080P to 4K
- Supports audio extraction via stereo & Toslink
- Supports audio insertion via stereo & Toslink
- Supports CEC & ARC bypass
- Supports ARC audio extraction via Toslink
- HDMI Audio Format: PCM2/5.1/7.1, Dolby 5.1/7.1, DTS 5.1/7.1
- Optical Audio Format: PCM2, Dolby 5.1

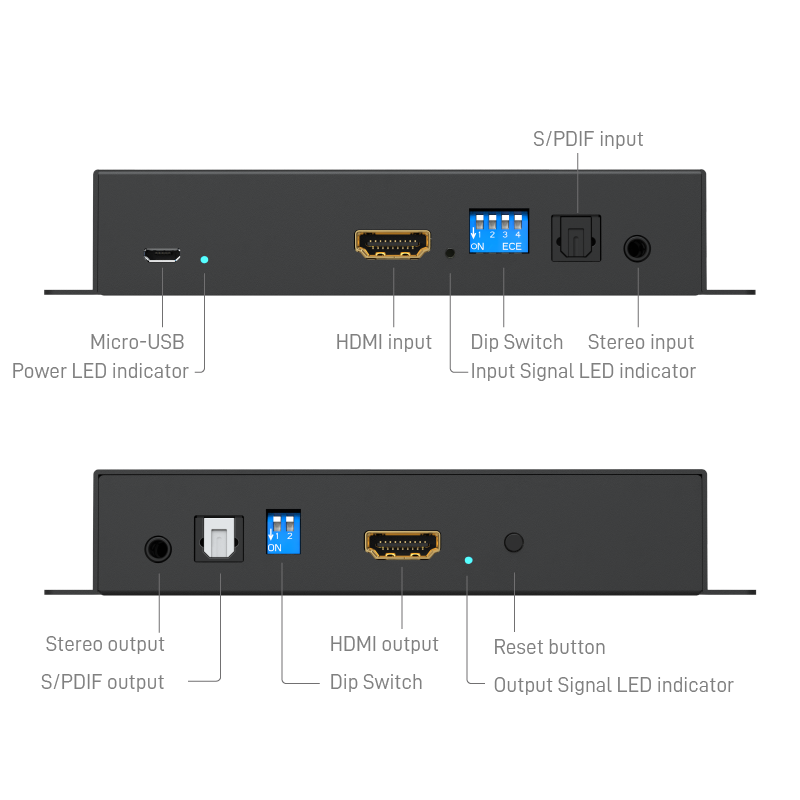

Overview
The CV-505Q HDMI 2.1 Audio Extractor & Embedder is an exceptional device that provides a practical solution for audio compatibility issues with HDMI 2.1 devices. This device can extract high-quality stereo analog and digital S/PDIF (Toslink) audio from incoming HDMI signals without losing any active audio channels. It is particularly useful for audio systems that only support stereo sound, such as TVs and stereo speakers.
Moreover, the CV-505Q can insert external stereo analog audio or digital S/PDIF (Toslink) audio into the outgoing HDMI signal. This capability allows users to incorporate external audio sources into their HDMI signal, which is beneficial for devices that do not have an HDMI output but require audio support.
The CV-505Q's ability to co-work with any HDMI matrix on the market is another unique feature. This allows different audio capacity HDMI-equipped devices to work with multi-channel HDMI audio insertion simultaneously. The CV-505Q is a versatile device that can operate seamlessly with a broad range of HDMI devices. Overall, the CV-505Q is a remarkable device that can significantly enhance the audio experience of HDMI devices, making it a valuable addition to any home theater or audio system.
Moreover, the CV-505Q can insert external stereo analog audio or digital S/PDIF (Toslink) audio into the outgoing HDMI signal. This capability allows users to incorporate external audio sources into their HDMI signal, which is beneficial for devices that do not have an HDMI output but require audio support.
The CV-505Q's ability to co-work with any HDMI matrix on the market is another unique feature. This allows different audio capacity HDMI-equipped devices to work with multi-channel HDMI audio insertion simultaneously. The CV-505Q is a versatile device that can operate seamlessly with a broad range of HDMI devices. Overall, the CV-505Q is a remarkable device that can significantly enhance the audio experience of HDMI devices, making it a valuable addition to any home theater or audio system.
SPECIFICATIONS
Technical
-
HDMI Compliance
-
2.1
-
Audio Extractor
-
1⨯ S/PDIF (toslink)
1⨯ Stereo (3.5mm jack)
-
Audio Embedder
-
1⨯ S/PDIF (toslink)
1⨯ Stereo (3.5mm jack)
-
Max. Data Rate
-
48 Gbps
-
Max. Resolution
-
8K@60 (4:2:0—10bits) 8K@30 (4:4:4—8bits)
-
Audio Support
-
HDMI Audio Format：PCM2/5.1/7.1, Dolby 5.1/7.1, DTS 5.1/7.1
Optical Audio Format：PCM2, Dolby 5.1
-
ESD Protection
-
8 KV—Contact Discharge
15KV—Air Discharge
Mechanical
-
Housing Design
-
Metal
-
Casing Style
-
Wall Mountable
-
Power Connection
-
Micro-USB Port
-
Power Supply
-
5V DC, 2A
-
Power Consumption
-
3 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
225g
-
Package Weight
-
461g
-
Certifications
-
CE, FCC, RoHS
