DAN-702ADC-PT
Analog to Dante Network Audio Converter
- Supports two XLR connectors, 2ch input for analog audio
- Supports sample rates up to 96kHz
- Supports PoE (Power over Ethernet)
- Dante audio over IP and AES67 RTP transport formats
- Synchronous sample rate conversion
- Excellent dynamic range, SNR and RHD performance
- Supports DHCP & static IP configuration
Overview
The DAN-702ADC-PT 2CH Analog to Dante Audio I/O Adapter provides a cost effective way to provide digital audio distribution over IP network. DAN-702ADC-PT supports 2 channels, with high quality XLR input connectors and built-in asynchronous sample rate conversion. Besides, DAN-702ADC-PT can deliver uncompressed, low latency digital audio signals over standard IP network. With built-in PoE (Power over Ethernet), DAN-702ADC-PT can be powered by any standard PoE providing network switch.
SPECIFICATIONS
Technical
-
Audio Connectors﹁
-
Analog Input
-
2⨯ XLR-F (3P)
-
Dante Network Port
-
1⨯ RJ45 with built-in LEDs
-
Analog Audio ﹁
-
Input Impedance
-
20K Ohms (balanced) or 10K Ohms (unbalanced)
-
Frequency Response
-
20 Hz to 20 kHz (± 5 dB)
-
Dynamic Range
-
〉100dB
-
Signal-to-Noise Ration
-
〉100dB
-
Total Harmonic Distortion
-
〈 0.01% (+4 dBu)
-
Dante Audio ﹁
-
Sampling Frequency
-
44.1 kHz, 48 kHz, 96 kHz
-
Sampling Resolution
-
24 bits (Max.)
-
Network Transmission
-
Dante audio, AES67 RTP
-
Network Speed
-
100 Mb

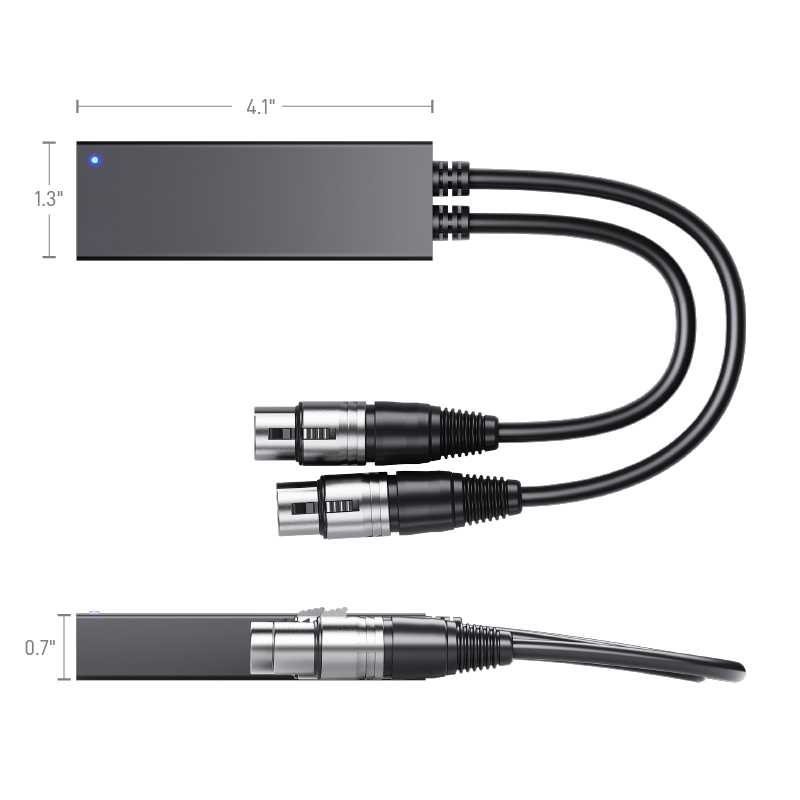

Mechanical
-
Housing Design
-
Aluminum
-
Casing Style
-
Portable
-
Power Connection
-
Class 1 802.3af POE PD compliant
-
Power Supply
-
—
-
Power Consumption
-
2 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
160g
-
Package Weight
-
250g
-
Certifications
-
CE, FCC, RoHS
