- Supported high-definition (HD) formats:
- NTSC 525@59.94, PAL 625@50, 720p@50,720p@59.94, 720p@60,
- 1080i@50, 1080i@59.94, 1080i@60, 1080p@23.97, 1080p@24, 1080p@25,
- 1080p@29.97, 1080p@30, 1080p@50, 1080p@59.94, 1080p@60
- Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 270 Mbps
- Auto 3G/HD/SD-SDI detection
- Support HDMI Deep Color
- Supports analog stereo embedder & extractor
- One SDI compliant output and one HDMI compliant output

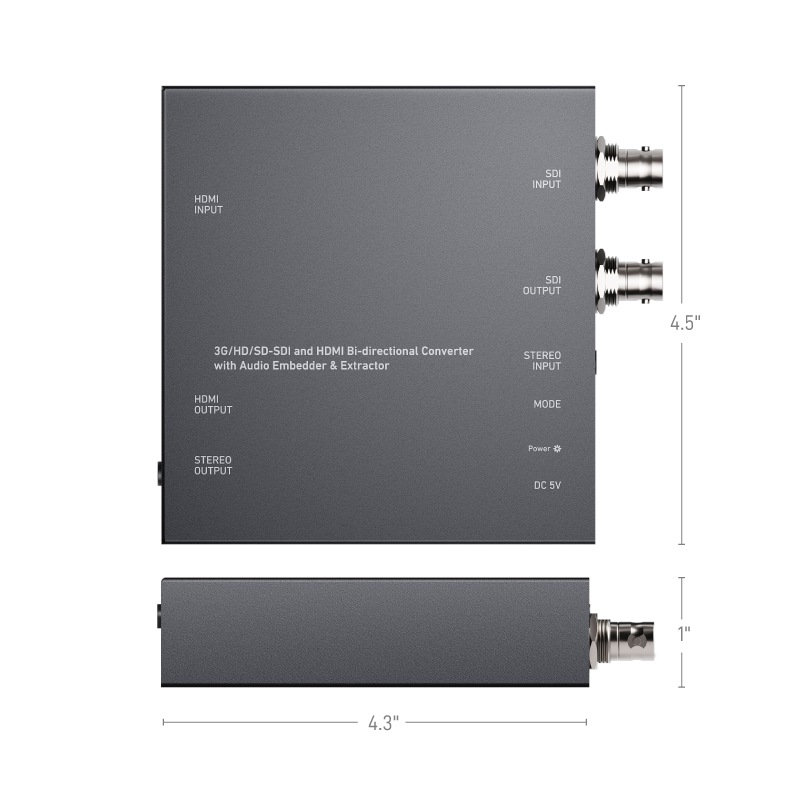

The CV-53BI 3G/HD/SD-SDI and HDMI Bi-directional Converter with Audio Embedder & Extractor provides a professional way to convert HDMI to 3G/HD/SD SDI & 3G/HD/SD-SDI to HDMI in real time. The conversion between SDI and HDMI is pure digital and guarantees no loss transformation for both audio and video. Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The CV-53BI also provides one low jitter SDI output and to provide more flexible application possibility, CV-53BI is also equipped with high quality analog stereo embedder & extractor. With the use of CV-53BI, the most popular uncompressed video interface in the consumer world is readily available for professional SDI equipment!
-
HDMI Compliance
-
1.3
-
HDCP Compliance
-
1.4
-
Max. Data Rate
-
10.2 Gbps
-
SDI Formats
-
SMPTE 424M-2.97 Gbps/3G-SDI 1080p at 50/59.94/60 Hz (4:2:2)。
SMPTE 274M-1.485 Gbps/HD-SDI:1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz。
SMPTE 292M-1.485 Gbps/HD-SDI:1080i at 30 Hz, 720p at 60 Hz。
SMPTE 296M-1.485 Gbps/HD-SDI:720p at 23.98/24/25/29.97/30/50/59.94/60 Hz。
SMPTE 259M-270 Mbps/SD-SDI:NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz。
-
HDMI Formats
-
UHD Video Standards/1080p at 50/59.94/60 Hz (4:2:2)
HD Video Standards/720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz
SD Video Standards/NTSC at 59.94 Hz, PAL at 50 Hz
-
Audio Support
-
Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio
-
ESD protection
-
8 KV—Contact Discharge
15KV—Air Discharge
-
Housing Design
-
Metal
-
Casing Style
-
Wall Mountable
-
Power Connection
-
Interlocking Barrel
-
Power Supply
-
5V DC, 2A
-
Power Consumption
-
6 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
212g (0.5 lb.)
-
Package Weight
-
506g (1.1 lb.)
-
Certifications
-
CE, FCC, RoHS
