    CAP-502MJ
    USB 3.0 Full HD Video Capture Device

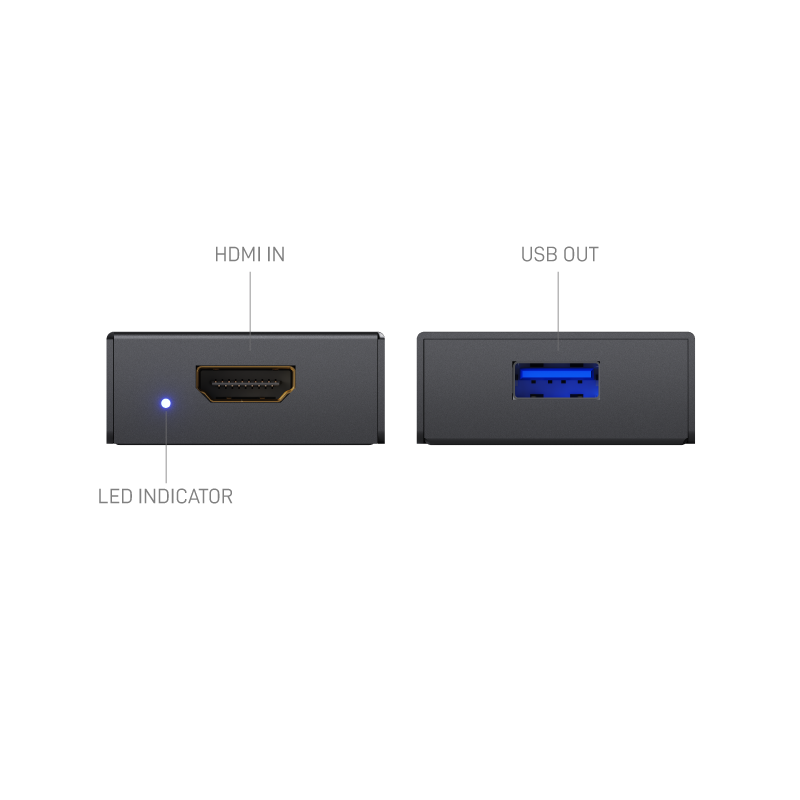

    • HDMI video and audio streams over USB 3.0
    • Supports UVC1.0
    • Supports video resolution up to 1080p 60Hz
    • Auto-detection on video format to ensure plug-play operations
    • Recording Video Format: H.264 (Software Compression)
    • Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)
    • Compatible with most 3rd party software such as OBS Studio and AMCap
    • Supports USB 3.0 (MJPG/YUY2) and USB 2.0 (MJPG)
    • Low Lattency
    • System Requirements (Recommanded)
    • - Windows® 7(SP1) / Windows 8.1 / Windows 10
    • - PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
    • - Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher
    • - 4GB RAM or higher
    Overview
    The CAP-502MJ USB 3.0 Full HD Video Capture Device provides a professional way to capture HDMI video signals. It adopts USB 3.0 interface, which can realize high-speed transmission. Users can capture Full HD(1080p60) video by this capture device. Besides, CAP-502MJ can capture and display original uncompressed HDMI video with more realistic color rendition. CAP-502MJ also uses large volume image buffer technology which effectively avoids the video tearing. The high sampling rate and high sampling accuracy assure images with high sharpness, rich details, and less color edges.

    SPECIFICATIONS
    Technical
    • Max. Data Rate

    • 350 Mbps

    • UAC Video Output Resolution

    • 1080p@60

    • UAC Audio Output Format

    • Stereo / 16-bit / 48000Hz

    • Recording Video Format

    • YUY2 (USB3.0), MJPG (USB2.0/3.0)

    • Operating System Compatibility

    • Windows 7, 8, 10, Mac OS X 10.9 or above, Linux

    • 3rd-Party Software Compatibility

    • OBS Studio (Windows, Linux)／AMCap (Windows)
      Potplayer (Windows)／Skype (Windows, OS X)
      Hangout (Windows)／TeamViewer (Windows)

    • Hardware Requirements

    • Desktop：Intel Core i5-3400+NVIDIA GTX660 or higher
      Notebook：Intel Core i7-4810MQ+NVIDIA GTX870M or higher+4GB RAM or higher

    • ESD Protection

    • 8 KV—Contact Discharge
      15KV—Air Discharge

    Mechanical
    • Housing Design

    • Metal

    • Casing Style

    • Portable

    • Power Connection

    • USB-A Port

    • Power Supply

    • 5V DC, 0.5A

    • Power Consumption

    • 2 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    • 80g

    • Package Weight

    • 179g

    • Certifications

    • CE, FCC, RoHS
