    CV-305KZ
    12G/6G/3G/HD/SDI to HDMI 2.0 Converter
    • Supported high-definition (HD) formats:
    • NTSC 525@59.94, PAL 625@50, 720p@50,720p@59.94,
    • 720p@60, 1080i@50, 1080i@59.94, 1080i@60, 1080p@23.97,
    • 1080p@24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50,
    • 1080p@59.94, 1080p@60, 4K2K@23.97, 4K2K@24, 4K2K@25,
    • 4K2K@30, 4K2K@50, 4K2K@59.94, 4K2K@60,
    • Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 270 Mbps
    • Auto 12G/6G/3G/HD/SD-SDI detection
    • Support HDMI 2.0

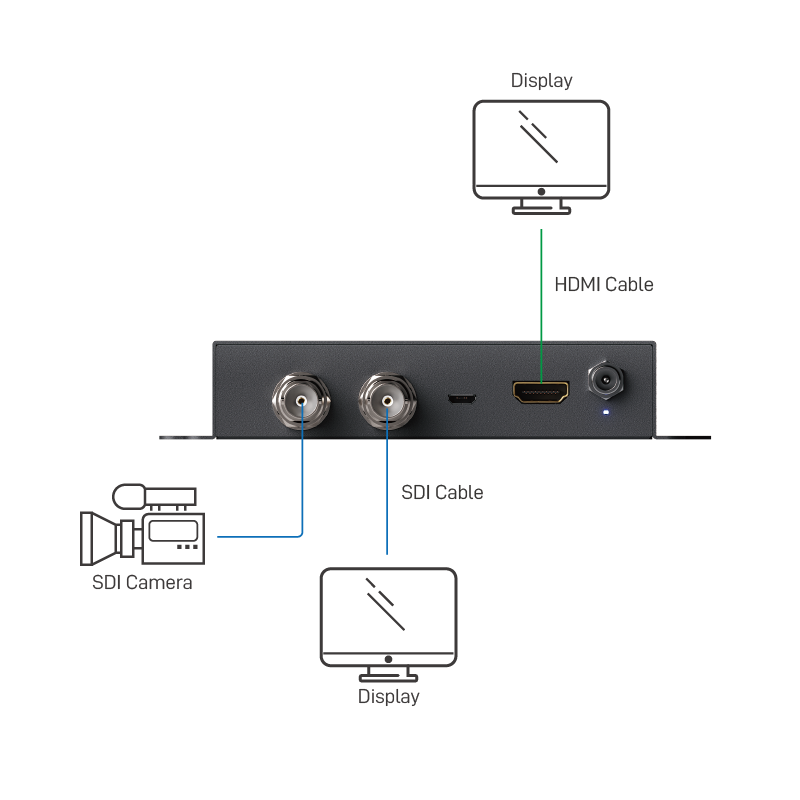

    • One SDI compliant output and one HDMI compliant output
    Overview
    The CV-305KZ 12G/6G/3G/HD/SD-SDI to HDMI 2.0 Converter provides a professional way to convert 12G/6G/3G/HD/SD-SDI to HDMI 2.0 in real time. The conversion between SDI and HDMI is pure digital and guarantees no loss transformation for both audio and video. Plus, with up to 8 channel audio support, 7.1 channel or 5.1 channel audio becomes available. The CV-305KZ also provides one low jitter and re-clocked output for daisy chain or multiple monitors.

    SPECIFICATIONS
    Technical
    • HDMI Compliance

    • 2.0

    • SDI Formats

    • SMPTE 2082; 11.88 Gbps／12G-SDI：2160p at 50/59.95/60 Hz。
      SMPTE 2081; 5.94 Gbps／6G-SDI：2160p at 25/29.97/30 Hz。
      SMPTE 424M; 2.97 Gbps／3G-SDI 1080p at 50/59.94/60 Hz (4:2:2)。
      SMPTE 274M; 1.485 Gbps／HD-SDI：1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz。
      SMPTE 296M; 1.485 Gbps／HD-SDI：720p at 23.98/24/25/29.97/30/50/59.94/60 Hz。
      SMPTE 292M; 1.485 Gbps／HD-SDI：1080i at 30 Hz, 720p at 60 Hz。
      SMPTE 259M; 270 Mbps／SD-SDI：NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz。

    • HDMI Formats

    • 4K UHD Video Standards／2160p at 23.98/24/25/29.97/30/50/59.94/60 Hz
      UHD Video Standards／1080p at 50/59.94/60 Hz (4:2:2)
      HD Video Standards／720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz
      SD Video Standards／NTSC at 59.94 Hz, PAL at 50 Hz

    • SDI Bitrate

    • 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps

    • Video Sampling

    • 4：2：2

    • Audio Sampling

    • 48 kHz & 24 bit

    • Auto Switching

    • Auto switching between SD／HD／3G／6G／12G-SDI

    • Cable Equalization

    • [12G-SDI] up to 60m (200ft)
      [6G-SDI] up to 75m (250)
      [3G-SDI] up to 90m (300ft)
      [HD-SDI] up to 150m (500ft)
      [SD-SDI] up to 300m (1000ft)

    • Eye-patten Measurements

    • Amplitude：within 800mV
      Raise&Fall time：<45ps> Timing jitter：<8> Alignment jitter：<0.3(100KHz to 1188MHz)

    • ESD Protection

    • 8 KV—Contact Discharge
      15KV—Air Discharge

    Mechanical
    • Housing Design

    • Metal

    • Casing Style

    • Wall Mountable

    • Power Connection

    • Interlocking Barrel

    • Power Supply

    • 12V DC, 2A

    • Power Consumption

    • 9 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    • 430g (1.0lb.)

    • Package Weight

    • 866g (1.9lb.)

    • Certifications

    • CE, FCC, RoHS
