CV-505QC
2x1 HDMI 2.1 Audio Extractor & Embedder
- HDMI 2.1 compliant
- Supports up to 8K60 4:2:0 10bits, 8K30 4:4:4 & 4K2K 120Hz
- Supports HDR1, which is 4K2K@60 10bits/12bits2 & Dolby Vision
- Supports VRR(Variable Refresh Rate) & ALLM(Auto Low Latency Mode)*
- HDCP 2.3 and 1.4 compliant
- Wide frequency range: 25MHz~1188MHz
- Video bandwidth: 48G
- Supports audio extraction via stereo & Toslink
- Supports audio insertion via stereo & Toslink
- Supports CEC & ARC bypass
- Supports ARC audio extraction via Toslink and stereo
- HDMI Audio Format: PCM2/5.1/7.1, Dolby 5.1/7.1, DTS 5.1/7.1
- Optical Audio Format: PCM2, Dolby 5.1, DTS 5.1
- Stereo Audio Format: PCM2
- *NOTE：
- 1. HDR = High Dynamic Range
- 2. The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384 MHz, and the 4K2K@60 4:4:4 8bits is 594MHz.
Overview
The CV-505QC 2x1 HDMI 2.1 Audio Extractor & Embedder is an outstanding device that offers a practical solution for audio compatibility issues with HDMI 2.1 devices. This device can extract high-quality stereo analog and digital S/PDIF (Toslink) audio from incoming HDMI signals without losing any active audio channels. It's particularly useful for audio systems that only support stereo sound, such as TVs and stereo speakers.

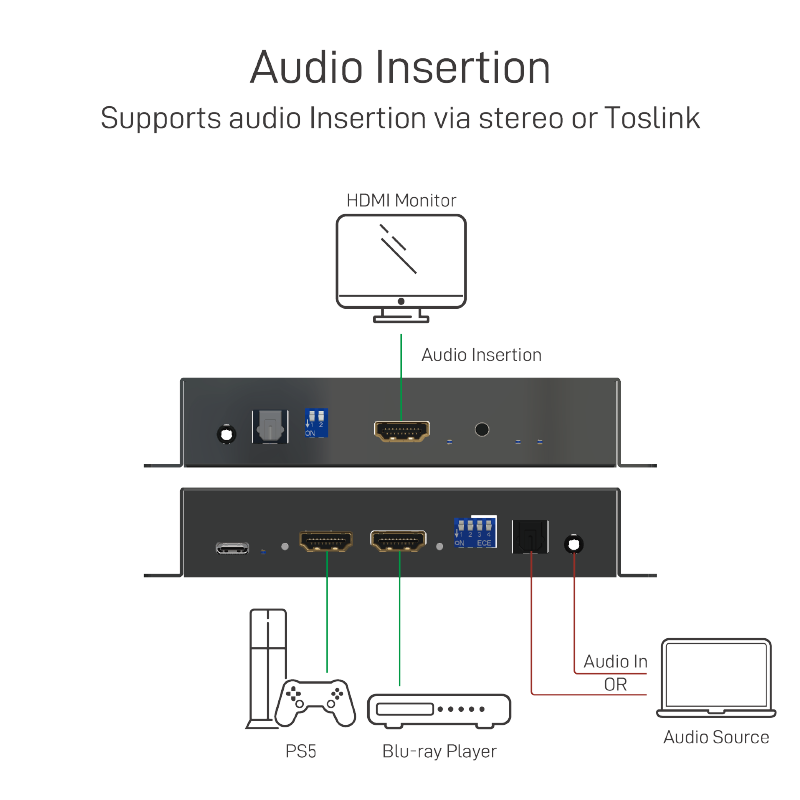

Furthermore, the CV-505QC can incorporate external stereo analog audio or digital S/PDIF (Toslink) audio into the outgoing HDMI signal. This capability allows users to integrate external audio sources into their HDMI signal, which is beneficial for devices that lack an HDMI output but require audio support.
Another unique feature of the CV-505QC is its ability to co-operate with any HDMI matrix on the market. This enables different audio-capable HDMI-equipped devices to work with multi-channel HDMI audio insertion simultaneously. Additionally, CV-505QC can switch between two HDMI 2.1 sources for your high-definition display.
The CV-505QC is a versatile device that seamlessly integrates with a wide range of HDMI devices. Overall, it's a remarkable device that significantly enhances the audio experience of HDMI devices, making it a valuable addition to any home theater or audio system.
Furthermore, the CV-505QC can incorporate external stereo analog audio or digital S/PDIF (Toslink) audio into the outgoing HDMI signal. This capability allows users to integrate external audio sources into their HDMI signal, which is beneficial for devices that lack an HDMI output but require audio support.
Another unique feature of the CV-505QC is its ability to co-operate with any HDMI matrix on the market. This enables different audio-capable HDMI-equipped devices to work with multi-channel HDMI audio insertion simultaneously. Additionally, CV-505QC can switch between two HDMI 2.1 sources for your high-definition display.
The CV-505QC is a versatile device that seamlessly integrates with a wide range of HDMI devices. Overall, it's a remarkable device that significantly enhances the audio experience of HDMI devices, making it a valuable addition to any home theater or audio system.
SPECIFICATIONS
Technical
-
HDMI Compliance
-
2.1
-
Audio Extractor
-
1⨯ S/PDIF (toslink)
1⨯ Stereo (3.5mm jack)
-
Audio Embedder
-
1⨯ S/PDIF (toslink)
1⨯ Stereo (3.5mm jack)
-
Max. Data Rate
-
48 Gbps
-
Max. Resolution
-
8K@60 (4:2:0—10bits) 8K@30 (4:4:4—8bits)
-
Audio Support
-
HDMI Audio Format：PCM2/5.1/7.1, Dolby 5.1/7.1, DTS 5.1/7.1
Optical Audio Format：PCM2, Dolby 5.1
-
ESD Protection
-
8 KV—Contact Discharge
15KV—Air Discharge

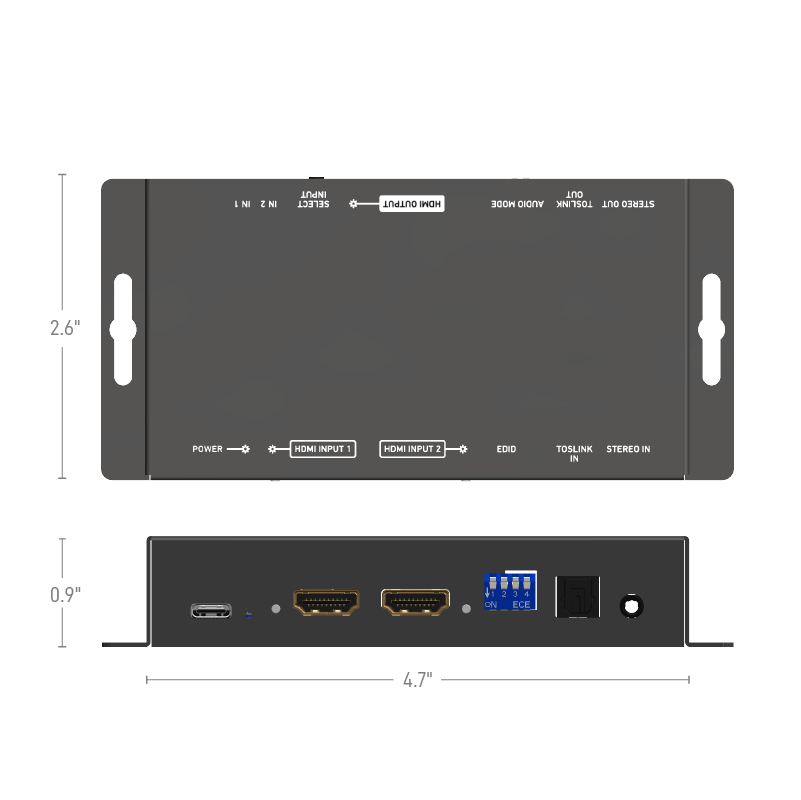

Mechanical
-
Housing Design
-
Metal
-
Casing Style
-
Wall Mountable
-
Power Connection
-
Micro-USB Port
-
Power Supply
-
5V DC, 2A
-
Power Consumption
-
3 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
225g
-
Package Weight
-
461g
-
Certifications
-
CE, FCC, RoHS
