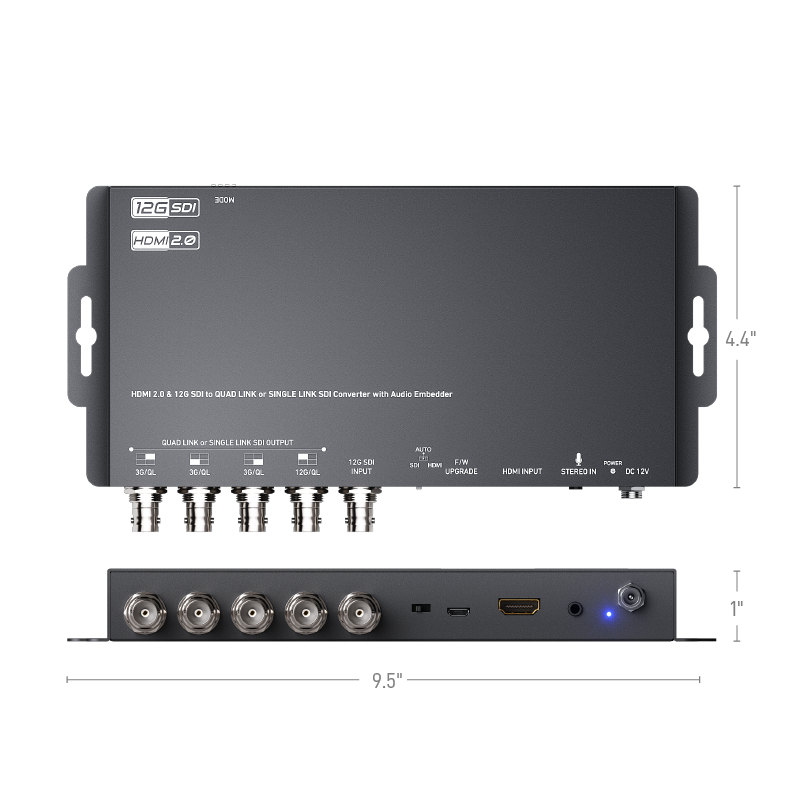

    CV-503ZKM
    HDMI 2.0 & 12G SDI to 12G/6G/3G/HD/SD-SDI Converter with Audio Embedder
    • Supported high-definition (HD) formats:
    • NTSC 525@59.94, PAL 625@50, 720p@50,720p@59.94,
    • 720p@60, 1080i@50, 1080i@59.94, 1080i@60, 1080p@23.97,
    • 1080p@24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50,
    • 1080p@59.94, 1080p@60, 4K2K@23.97, 4K2K@24,
    • 4K2K@25, 4K2*@30, 4K2K@50, 4K2K*@59.94, 4K2K@60,
    • Bit Rate: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps
    • Auto 12G/6G/3G/HD/SD-SDI input detection
    • Supports HDMI 2.0 & below
    • Supports analog stereo embedder
    • Supports one 12G SDI & 3 G SDI outputs
    • The 4 3G SDI outputs support only 2-sample interleave division mapping
    • USB firmware upgradable for expanding compatibility
    • Wall-mount housing design for easy installation
    • Small form factor & fan less design
    Overview

    The CV-503ZKM HDMI 2.0 & 12G SDI to 12G/6G/3G/HD/SD-SDI Converter with Audio Embedder provides a professional way to convert HDMI 2.0 or 12G SDI to 12G/6G/3G/HD/SD-SDI in real time. The conversion between SDI and HDMI is pure digital and guarantees no loss transformation for both audio and video. Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The CV-503ZKM provides one low jitter SDI output up to 12G and three other SDI outputs up to 3G simultaneously to either support 12G UHD output and 4 3G FHD outputs. This converter is also equipped with high quality analog stereo embedder to fit into more realistic applications. With versatile features controlled by the built-in switch, CV-503ZKM makes the most popular SDI applications handy and possible.

    SPECIFICATIONS
    Technical
    • HDMI Compliance
    • 2.0

    • SDI Output Formats
    • SMPTE 2082; 11.88 Gbps/12G-SDI:2160p at 50/59.95/60 Hz。
      SMPTE 2081; 5.94 Gbps/6G-SDI:2160p at 25/29.97/30 Hz。
      SMPTE 424M, 425M; 2.97 Gbps/3G-SDI 1080p at 50/59.94/60 Hz (4:2:2)。
      SMPTE 274M; 1.485 Gbps/HD-SDI:1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz。
      SMPTE 296M; 1.485 Gbps/HD-SDI:720p at 23.98/24/25/29.97/30/50/59.94/60 Hz。
      SMPTE 292M; 1.485 Gbps/HD-SDI:1080i at 30 Hz, 720p at 60 Hz。
      SMPTE 259M; 270 Mbps/SD-SDI:NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz。

    • HDMI Input Formats
    • 4K UHD Video Standards/2160p at 23.98/24/25/29.97/30/50/59.94/60 Hz
      UHD Video Standards/1080p at 50/59.94/60 Hz (4:2:2)
      HD Video Standards/720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz
      SD Video Standards/NTSC at 59.94 Hz, PAL at 50 Hz

    • SDI Bitrate
    • 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps

    • Video Sampling
    • 4:2:2

    • Audio Sampling
    • 48 kHz & 24 bit

    • Auto Switching
    • Auto switching between SD/HD/3G/6G/12G-SDI

    • Cable Reach
    • [12G-SDI] up to 60m (200ft)
      [6G-SDI] up to 75m (250)
      [3G-SDI] up to 90m (300ft)
      [HD-SDI] up to 150m (500ft)
      [SD-SDI] up to 300m (1000ft)

    • Eye-patten Measurements
    • Amplitude:within 800mV
      Raise&Fall time:<45ps> Timing jitter:<8> Alignment jitter:<0.3(100KHz to 1188MHz)

    • ESD Protection
    • 8 KV—Contact Discharge
      15KV—Air Discharge

    Mechanical
    • Housing Design
    • Metal

    • Casing Style
    • Wall Mountable

    • Power Connection
    • Interlocking Barrel

    • Power Supply
    • 12V DC, 2A

    • Power Consumption
    • 10 watts (Max.)

    • Operating Humidity
    • 20-90% RH (no condensation)

    • Operation temperature
    • 0~40°C (32~104°F)

    • Product Weight
    • 686g (1.5 lb.)

    • Package Weight
    • 1046g (2.3 lb.)

    • Certifications
    • CE, FCC, RoHS
