CAP-50CI-4K-PLUS
USB-C 4K120 Video Capture Box with Scaler, HDMI 2.1 loopout, Audio & HDR10 to SDR Conversion
- HDMI video and audio streams over USB 3.1 Type-C Gen 1
- Supports UVC1.0/1.1/1.5
- Supports video resolution up to 4K2K@30/1080P@1201 (Video stream over USB-C)
- HDMI 2.1 compliant
- Supports HDMI input & output up to 4K2K 120Hz 4:4:4/4:2:2/4:2:0
- Supports HDR, which is 4K2K@60 4:2:0 10bits/12bits
- HDCP 2.3 and 1.4 compliant
- Allows any output to view any HDMI source at any time
- Supports deinterlace & scaler2
- Supports mic-in mix with HDMI audio
- Supports HDMI audio extraction
- Supports HDR10 to SDR conversion3

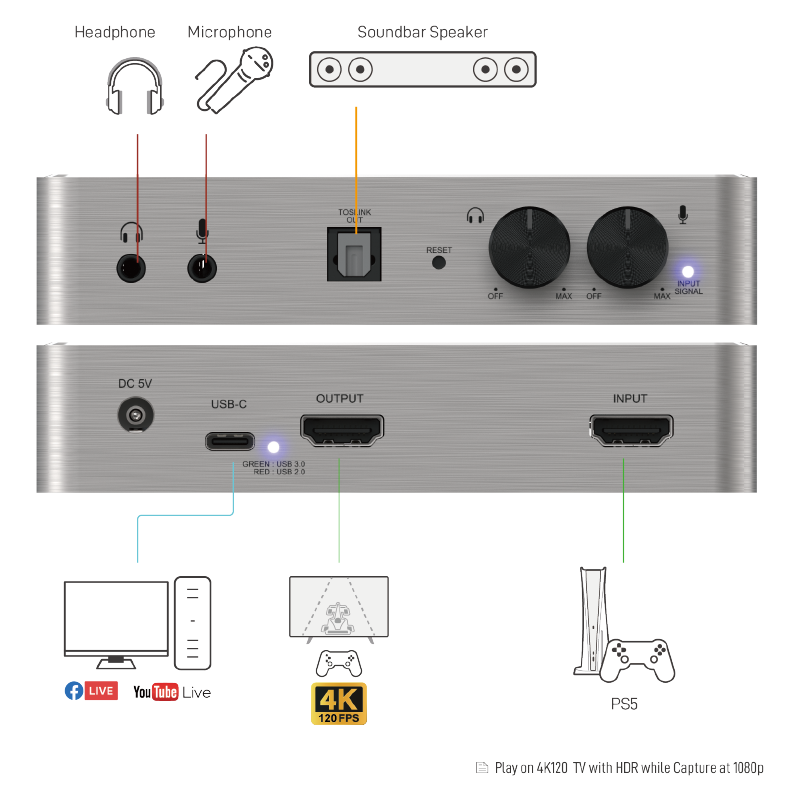

- Supports playing 4K120 HDR on HDMI out while streaming perfect 4K2K@30/1080P@120 with SDR colors for gameplay capture
- Volume control knob to adjust the MIC/Headphone volume
- Auto-detection on video format to ensure plug-play operations
- Recording Video Format: Software Compression
- Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)
- Compatible with most 3rd party software such as OBS Studio and AMCap
- Supports USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 720P@30)
- Low Latency (3~4ms at 1080P)
- USB-C reversible
- ———————————————————————————
-
System Requirements (Recommanded)
。Windows® 7(SP1) / Windows 8.1 / Windows 10
。PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
。Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher
。4GB RAM or highe
Overview
The CAP-50CI-4K-PLUS USB-C 4K120 Video Capture Box with Scaler, HDMI 2.1 loopout, Audio & HDR10 to SDR Conversion provides a professional way to capture HDMI video signals. It adopts USB 3.1 Type-C Gen 1 (USB 3.0) interface, which can realize high-speed transmission. In addition, the HDMI input and loopout can support up to up to 4K2K 120Hz. Users can connect to 4K2K 120Hz source and capture Ultra HD(4K2K@30) video by this capture device. Besides, CAP-50CI-4K-PLUS can capture and display original uncompressed HDMI video with more realistic color rendition. CAP-50CI-4K-PLUS also uses large volume image buffer technology which effectively avoids the video tearing. The high sampling rate and high sampling accuracy assure images with high sharpness, rich details, and less color edges. Also, with HDR10 to SDR conversion, PS5/Xbox* players can enjoy 4K2K@120 HDR games on 4K TV and record the real-time 4K2K@30/1080P@120 video streams with SDR quality through USB 3.0 at the same time.
SPECIFICATIONS
Technical
-
HDMI Compliance
-
2.1
-
Max. Data Rate
-
350 Mbps
-
UAC Video Output Resolution
-
Up to 4K2K@30/1080P@120
-
Video Input Resolution
-
Up to 4K2K 120Hz 4:4:4/4:2:2/4:2:0
-
UAC Audio Output Format
-
2CH / 16-bit / 48000Hz PCM
-
Recording Video Format
-
RGB/YUY2/NV12 (USB3.1 Gen 1), YUY2/NV12 (USB2.0)
-
Audio Input
-
HDMI Embedded Audio & Stereo audio Input
-
Operating System Compatibility
-
Windows 7, 8, 10, Mac OS X 10.9 or above, Linux
-
3rd-Party Software Compatibility
-
OBS Studio (Windows, Linux)/AMCap (Windows)
Potplayer (Windows)/Skype (Windows, OS X)
Hangout (Windows)/TeamViewer (Windows)
-
Hardware Requirements
-
"Desktop:Intel Core i5-3400+NVIDIA GTX660 or higher
Notebook:Intel Core i7-4810MQ+NVIDIA GTX870M or higher+4GB RAM or higher"
-
ESD Protection
-
8 KV—Contact Discharge
15KV—Air Discharge
Mechanical
-
Housing Design
-
Aluminum
-
Casing Style
-
Portable
-
Power Connection
-
non-locking Barrel
-
Power Supply
-
5V DC, 2A
-
Power Consumption
-
5 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
216g (7.6 oz.)
-
Package Weight
-
387g (13.6 oz.)
-
Certifications
-
CE, FCC, RoHS
