    REC-505M
    4K UHD Recorder/Player
    • Supports HEVC (H.265) & AVC (H.264) main 4:2:0 8 bit compression and decompression
    • Supports HDMI 2.0a & HDCP 2.2
    • Multiple bitrate to maintain high level video quality
    • HDMI 2.0 auto resolution detection for H.264 & H.265 encoder
    • Supports stereo audio codec (AAC/192kbps)
    • Bitrate up to 120Mbps (H.265)/ 100Mbps(H.264), CBR/VBR
    • Codec supports video compression up to 4K60(H.265) / 4K30(H.264)
    • Supports playback and record file formats: MP4 (H.265 + AAC) or (H.264 + AAC)
    • Supports streaming function, RTSP, TCP, UDP, RTP, RTMP, RTMPS, SRT & NDI│HX│HX2
    • Estimated Record Time: UHD 32GB: 7HR (8Mbps)~1.7HR (32Mbps)
    • Record video to USB flash drive, microSD card & HDD/SSD

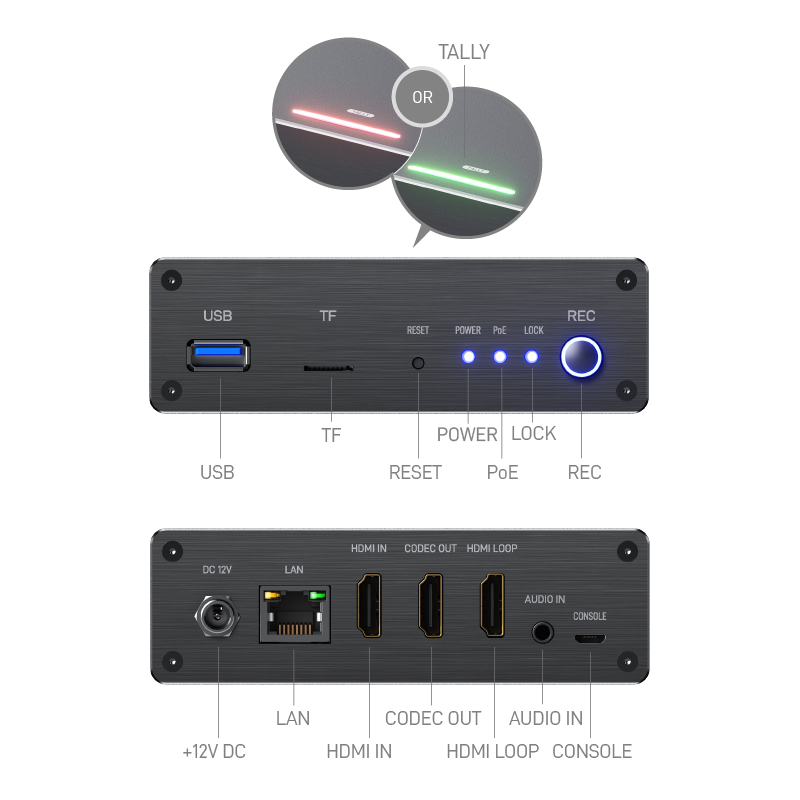

    • Supports front panel push button, APP, web interface & IP control **
    • Firmware upgradable
      　
      。。。。。。。。。。。。。。。NOTE。。。。。。。。。。。。。。。

      ** IP control is based on customization and request.

    Overview
    REC-505M can perform H.264 & H.265 streaming and recording simultaneously and can also serve as a dual multi-platform video streaming server while recording. It supports different bitrates for recording and streaming based on the applications and requirement. REC-505M also equips H.265 codec engine to allow users to record A/V contents up to 4K/60 444.

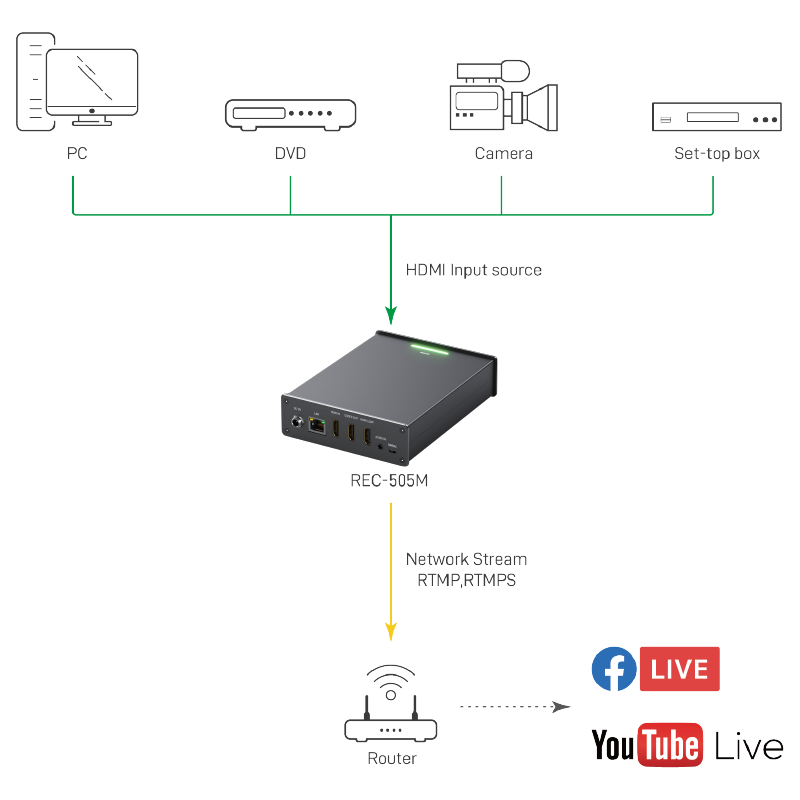

    REC-505M is a convenient, easy-to-use video streaming and recording device built for professional video producers. Streaming A/V is compatible with RTSP／TCP／UDP／RTP／RTMP／RTMPS／SRT／NDI|HX ** and makes streaming to YouTube, Facebook and many other social media platforms instant and easy. Recording on SD card or external HDD * for video storage is also supported. REC-505M can record MP4 or TS files to the supported storage media configured in FAT32 / exFAT file system.
    REC-505M can be remotely controlled by PC Windows, Mac, or mobile devices thru a web browser. Friendly control approaches make multiple scenarios feasible and handy.

    * External HDD might be needed to be powered by an external power adaptor depending upon power consumption. REC-505M supplies up to 900mA current for external storage devices thru USB 3.0 port.
    ** NDI|HX is one of NewTek intelligent properties and each device supporting NDI technology will be therefore charged loyalty by NewTek. Hence, enabling NDI|HX is based on customer’s request and provides unique NDI ID to be embedded into the device.
    SPECIFICATIONS
    Technical
    • HDMI Compliance

    • 2.0

    • HDCP Compliance

    • 2.2/1.4

    • Video bandwidth

    • Single-link 594MHz [18Gbps]

    • Video support

    • up to 4K60(H.265) / 4K30(H.264)

    • Codec

    • -HEVC (H.265) & AVC (H.264) main 4:2:0 8 bit compression and decompression
      -Stereo audio codec (AAC/192kbps)
      -Bitrate up to 120Mbps (H.265)/ 100Mbps(H.264)

    • Audio Support

    • Stereo Audio

    • Recording Media

    • USB Flash Drive, microSD Card, HDD/ SSD

    • Storage File System

    • FAT32,exFAT

    • Streaming Protocol

    • TCP(unicast & multicast),RTP over TCP/UDP(unicast & multicast), RTSP over TCP/UDP, SRT, UDP, RTMP, RTMPS, NDI|HX

    • Control

    • Push button/ APP/ Web interface/ IP Control

    • ESD Protection

    • Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]

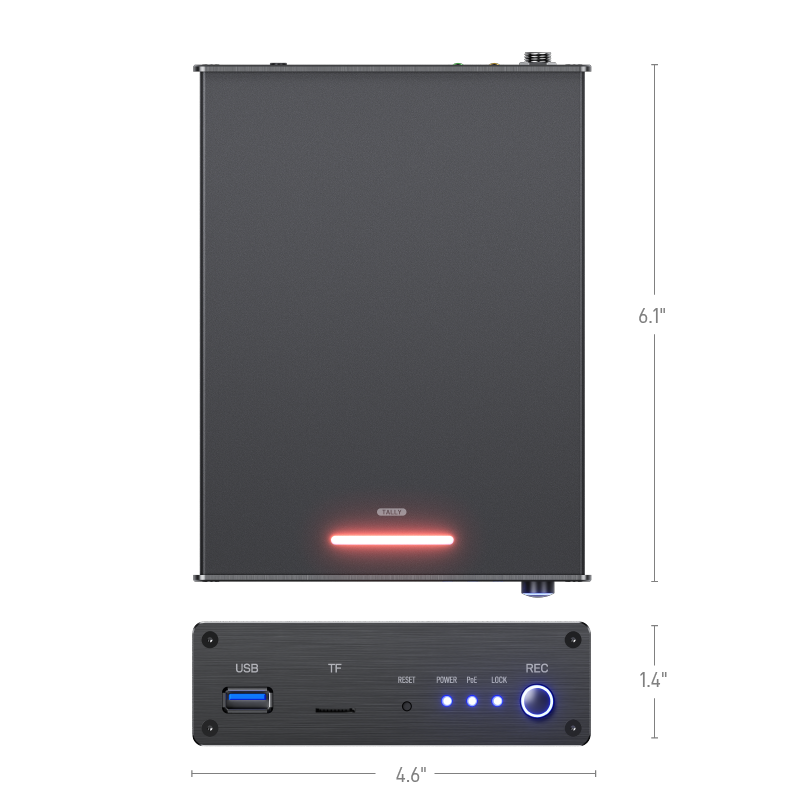

    Mechanical
    • Housing Design

    • Aluminum

    • Casing Style

    • Portable

    • Power Connection

    • Interlocking Barrel

    • Power Supply

    • 12V DC, 1A

    • Power Consumption

    • 10 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    • 480g

    • Package Weight

    • 980g

    • Certifications

    • CE, FCC, RoHS
