- Support HDMI Deep Color & full 3D
- HDCP compliant
- Allows any source to be displayed on multiple displays at the same time
- Allows any HDMI display to view any HDMI source at any time
- Supports 7.1 channel digital audio
- Supports default HDMI EDID and learns the EDID of displays
- The matrix master can switch every output channels to any HDMI inputs by push-in button, IR remote control, RS-232 control, and Ethernet control
- Easy installation with rack-mounting and wall-mounting designs for master and receiver respectively
- Fast response time – 2~5 seconds for channel switch

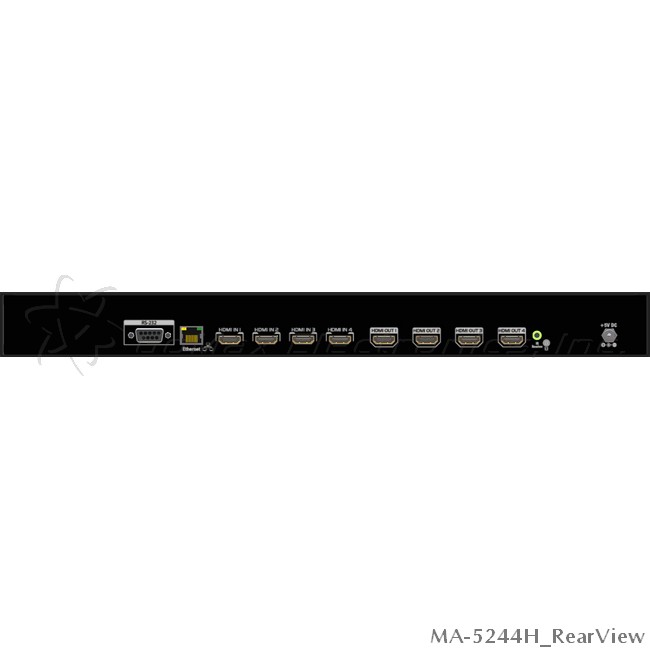

The MA-5244H 4x4 HDMI Matrix Switcher with Full 3D Support provides the most flexible and cost effective solution in the market to route high definition video sources plus multi-channel (up to 7.1-channel) digital audio from any of the four HDMI sources to the remote displays at the same time. This solution is well suited for use in home theater, conference room presentation systems, or other similar setting or application
-
HDMI Compliance
-
1.4
-
HDCP Compliance
-
1.3
-
Max. Data Rate
-
10.2 Gbps
-
Max. Resolution
-
4K2K@30 (4:2:2—12bits)
4K2K@30 (4:4:4—8bits)
-
Audio Support
-
Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio
-
CEC control
-
Pass through
-
ESD protection
-
8 KV—Contact Discharge
15KV—Air Discharge
-
Housing Design
-
Metal
-
Casing Style
-
Rack Mountable
-
Power Connection
-
Interlocking Barrel
-
Power Supply
-
5V DC, 4A
-
Power Consumption
-
20 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
1.3kg (2.9 lbs)
-
Package Weight
-
4.5kg (9.9 lbs)
-
Certifications
-
CE, FCC, RoHS
