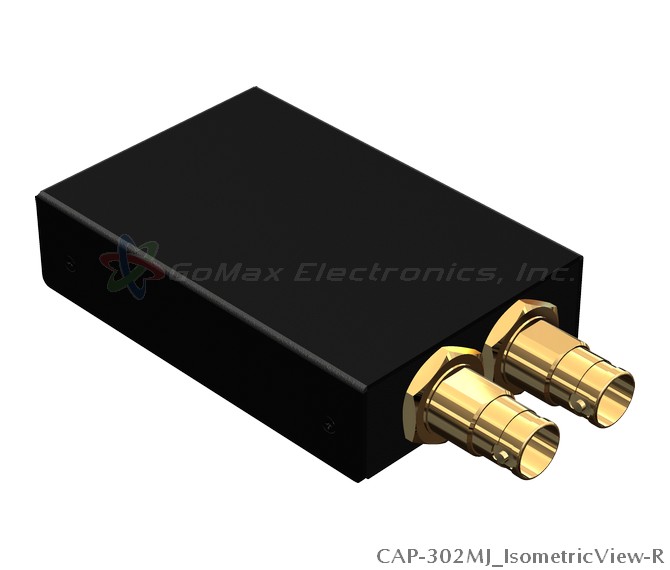

CAP-302MJ
USB 3.0 3G-SDI Capture Device with Audio in
  • SDI video and audio streams over USB 3.0
  • Supports UVC1.0
  • Supports video resolution up to 1080p 60Hz
  • Supports SDI loop through
  • Supports stereo line in
  • Auto-detection on video format to ensure plug-play operations
  • Recording Video Format: H.264 (Software Compression)
  • Works on multiple operation system platforms (Windows 7/8.1/10, Mac and Linux OS)
  • Compatible with most 3rd party software such as OBS Studio and AMCap
  • Supports USB 3.0 (MJPG/YUY2) and USB 2.0 (MJPG)
  • Low Lattency
  • System Requirements (Recommanded)
  • - Windows® 7(SP1) / Windows 8.1 / Windows 10
  • - PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
  • - Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher
  • - 4GB RAM or higher
總覽

The CAP-302MJ USB 3.0 3G-SDI Capture Device with Audio in provides a professional way to capture 3G/HD/SD-SDI signals. It adopts USB 3.0 interface, which can realize high-speed transmission. Users can capture 3G/HD/SD-SDI signals by this capture device. Besides, CAP-302MJ can capture and display original uncompressed 3G/HD/SD-SDI with more realistic color rendition. CAP-302MJ also uses large volume image buffer technology which effectively avoids the video tearing. The high sampling rate and high sampling accuracy assure images with high sharpness, rich details, and less color edges.

產品規格
Technical
  • HDMI Compliance

  • HDCP Compliance

  • DP compliance

  • USB compliance

  • Max. Data Rate

  • Max. Resolution

  • HDR

  • Latency

  • Audio Support

  • CEC control

  • IR Control

  • IR Frequency

  • EDID Selection

  • RS232 Control

  • ESD protection

  • POC

  • B。SDI Output Formats

  • B。HDMI Input Formats

  • B。SDI Speeds Supported

  • B。Video Sampling

  • B。Audio Sampling

  • B。Auto Switching

  • B。Cable Equalization

  • B。Eye-patten Measurements

  • B。Eye-patten Measurements

  • B。RP-198 pathological patterns

  • C。Cable (Belden 1694A) equalization ／ransmission

  • C。Fiber Extension

  • D。Control Interface

  • D。Included Accessories

Mechanical
  • Housing Design

  • Casing Style

  • Power Connection

  • Power Supply

  • Power Consumption

  • Operating Humidity

  • Operation temperature

  • Product Weight

  • Package Weight

  • Certifications
