The EX-57VAR Enhanced HDMI Extender over Single Cat.X with HDBaseT-Lite, Bi-directional IR & PoC boosts up your video/audio transmission distance to 60m (198ft) in HDTV 1080p with 48-bit color depth. The new generation enhanced technology is to make sure the HDBaseT extender can work properly even though source and display are both compliant with HDMI2.0a and HDCP2.2. EX-57VAR also supports the most advanced 3D video format complaint with HDMI specification and therefore guarantees the highest 3D video compatibility on the market. With only one cost- effective Cat.5/5e/6 cable, users can readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors including HDMI or DVI enabled TV sets or LCD PC monitors. With the advanced design for the latest HDMI technology, deep color video, DTS-HD or Dolby TrueHD audio, and HDCP supports and compatibility are all further insured. EX-57VAR is also equipped with bi-directional IR pass-through path. These bonus features allow users to boost IR control distance up to 60m (198ft) through only single Cat.5/5e/6 cable with HDMI signals. In addition, EX-57VAR also supports PoC (Power over Cable) which can power both units from either TX or RX with power supply.

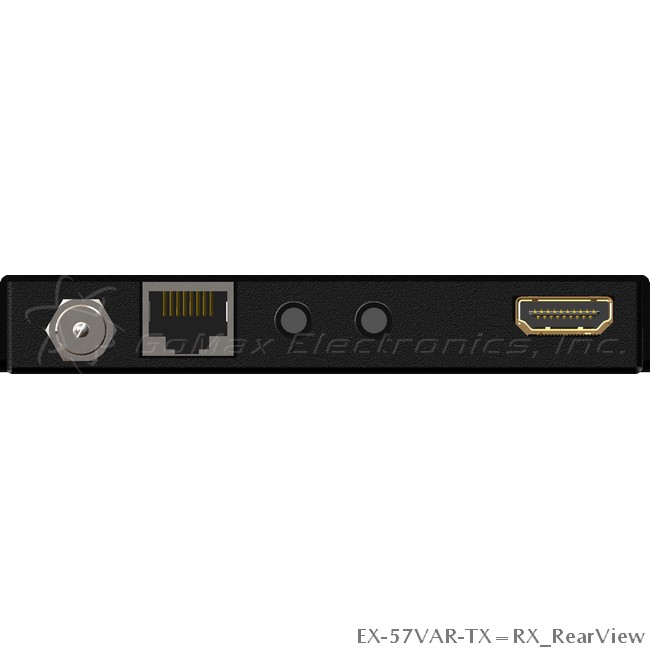

The EX-57VAR includes two units: transmitting unit EX-57VAR-TX and receiving unit EX-57VAR-RX. The transmitting unit is used to capture the input HDMI / DVI signals with IR control packets and carry the signals via one cost effective Cat.5/5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. EX-57VAR offers the most convenient solution for digital signage with long distance A/V transmission path. With 10G transmission width, EX-57VAR is ready for your next HDMI generation and applications!
