- Support HDMI 1.3
- DVI 1.0 Compliant
- Full HD 1080p60 24bit Video transmission and Up to 16 Groups
- Multi-Casting
- Flexible and scalable HD Video Broadcasting by Gigabit Ethernet LAN/Switch
- 1 to 1, 1 to many & multi-casting broadcasting architecture, adding more displays without adding LAN bandwidth loading
- Supports full frequency IR signal from 20KHz to 60KHz
- Bi-directional IR path
- Two way RS-232 command unicast broadcast for controlling display or video source device from remote site
- Easy Dip Switch matching for multi-casting group configuration
- New EDID copy/video mode switching button for optimal video performance and enhance on EDID compatibility
- Wall mounting housing design for easy and robust installation

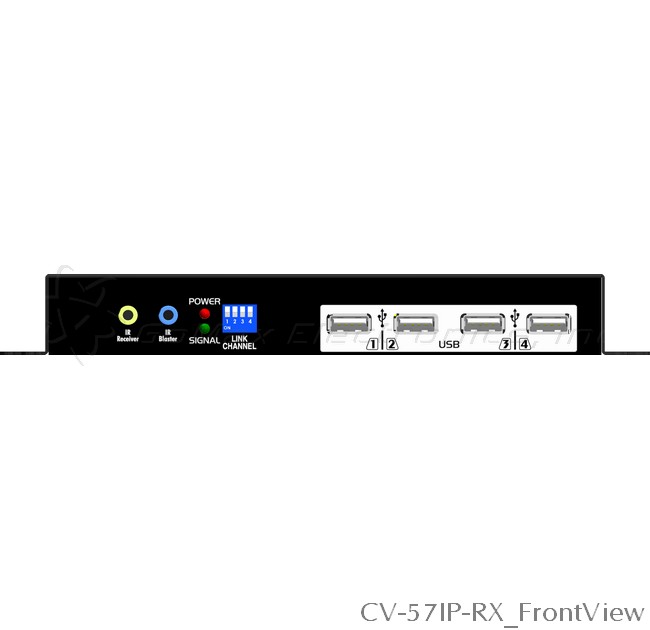

The CV-57IP HDMI extender over IP with bi-directional IR and RS-232 boosts up your video/audio transmission distance up to 100m (330ft) in HDTV 1080p format. With only one cost effective Cat.5/5e/6 cable, users can readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors including HDMI or DVI enabled TV sets or LCD PC monitors. Besides CV-57IP also supports HDCP and this flexibility makes HDCP compliant DVD players or PS3 transmit utmost high quality video and audio with a greater distance at the minimal cost, when integrating several components apart. In addition, CV-57IP is also equipped with bi-directional IR pass-through path and RS-232 serial port control.
The CV-57IP is also a HD video distribution solution for digital signage. It can transmit Full HD 1080p HDMI video broadcast over IP network. With Gigabit Ethernet network switch, the CV-57IP can support Point to Point, Point to Many, and Multi-Casting which HDMI video source with CV-57IP-TX can transmit signal to HDMI displays with CV-57IP-RX. Muti-casting can be done by Managed Gigabit Switch with 802.1Q VLAN function which provides control remotely and more video and more source allowed.
-
HDMI Compliance
-
HDCP Compliance
-
DP compliance
-
USB compliance
-
Max. Data Rate
-
Max. Resolution
-
HDR
-
Latency
-
Audio Support
-
CEC control
-
IR Control
-
IR Frequency
-
EDID Selection
-
RS232 Control
-
ESD protection
-
POC
-
B。SDI Output Formats
-
B。HDMI Input Formats
-
B。SDI Speeds Supported
-
B。Video Sampling
-
B。Audio Sampling
-
B。Auto Switching
-
B。Cable Equalization
-
B。Eye-patten Measurements
-
B。Eye-patten Measurements
-
B。RP-198 pathological patterns
-
C。Cable (Belden 1694A) equalization ／ransmission
-
C。Fiber Extension
-
D。Control Interface
-
D。Included Accessories
-
Housing Design
-
Casing Style
-
Power Connection
-
Power Supply
-
Power Consumption
-
Operating Humidity
-
Operation temperature
-
Product Weight
-
Package Weight
-
Certifications
