HDMI Series
>
HDMI over Cat5 Splitter

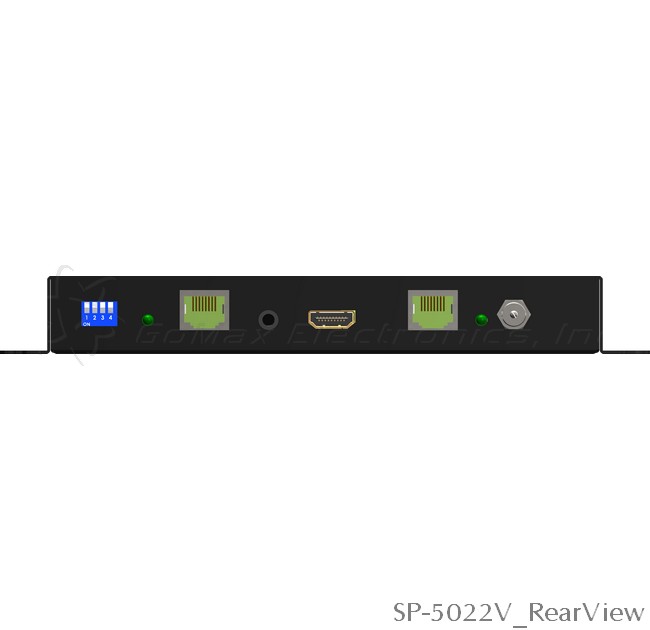

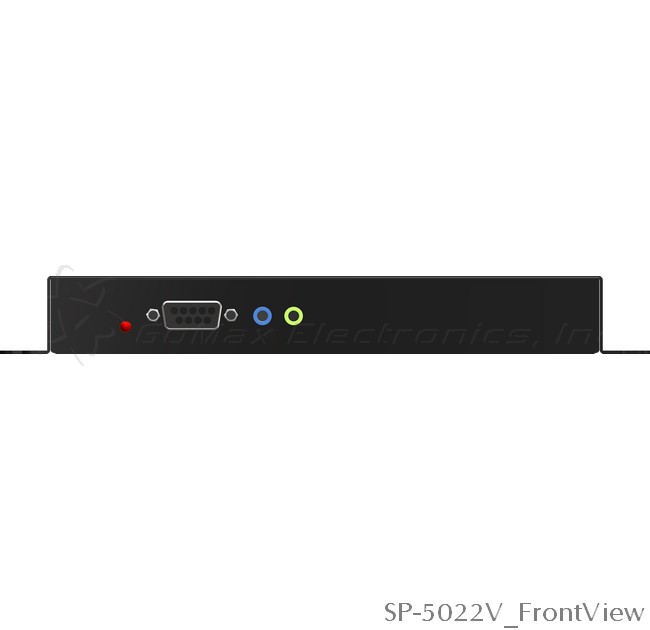

SP-5022V
1x2 HDMI Splitter/Repeater over Cat.X with HDBaseT-Lite, 4K2K & local Out
  • Support HDMI Deep Color & full 3D & 4K2K@30 (HDBaseT technology)
  • Extend the transmission up to 60m (198ft) from the HDMI source at Full HD 1080p 48-bit and 40m (132ft) at 4K2K@30
  • HDCP & EDID Bypass
  • Auto equalization
  • Support full frequency IR signal from 20KHz to 60KHz
  • Bi-directional IR path
  • Regenerates the HDMI signal
  • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
  • Pure unaltered uncompressed 7.1ch digital HDMI over Cat.X cable transmission
  • Allows cascading
  • Wall mounting housing design for easy and robust installation
總覽

The SP-5022V 1x2 HDMI Splitter/Repeater over Cat.X with HDBaseT-Lite, 4K2K & local Outallows you to distribute one of the two HDMI/DVI video sources 2 separate HDTV displays including one remotely cascade output via Cat-5/5e cost effective cable. This splitter offers the most flexible solution by which the high definition video and high quality audio can be transmitted to different local locations through HDMI cables and also to the next stage over a long distance without degrading the quality. The cascade ability allows pure digital video and audio broadcast station by station and therefore make extending HDMI compliant video and audio anywhere feasible.

產品規格
Technical
  • HDMI Compliance

  • HDCP Compliance

  • DP compliance

  • USB compliance

  • Max. Data Rate

  • Max. Resolution

  • HDR

  • Latency

  • Audio Support

  • CEC control

  • IR Control

  • IR Frequency

  • EDID Selection

  • RS232 Control

  • ESD protection

  • POC

  • B。SDI Output Formats

  • B。HDMI Input Formats

  • B。SDI Speeds Supported

  • B。Video Sampling

  • B。Audio Sampling

  • B。Auto Switching

  • B。Cable Equalization

  • B。Eye-patten Measurements

  • B。Eye-patten Measurements

  • B。RP-198 pathological patterns

  • C。Cable (Belden 1694A) equalization ／ransmission

  • C。Fiber Extension

  • D。Control Interface

  • D。Included Accessories

Mechanical
  • Housing Design

  • Casing Style

  • Power Connection

  • Power Supply

  • Power Consumption

  • Operating Humidity

  • Operation temperature

  • Product Weight

  • Package Weight

  • Certifications
