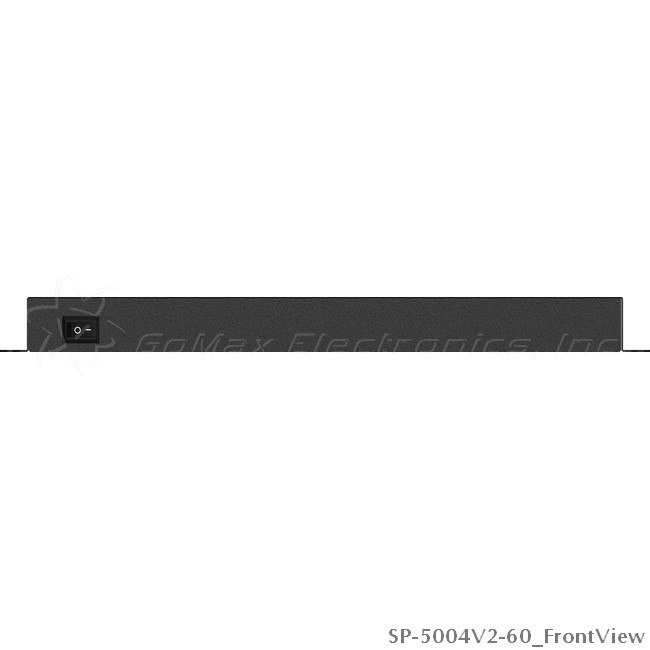

SP-5004V2-60
1x4 HDMI Splitter over Single Cat.x with HDBaseT-Lite, 4K2K, IR, RS-232 & POC
- Extend the transmission up to 60m (198ft) from the HDMI source at Full HD 1080p 48-bit and 40m (132ft) at 4K2K@30
- Support HDMI Deep Color & full 3D & 4K2K@30 (HDBaseT technology)
- Supports POC(Power over Cable) which can power units from TX with power supply.
- HDCP & EDID Bypass
- Support full frequency IR signal from 20KHz to 60KHz
- Bi-directional IR path
- DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
- Pure unaltered uncompressed 7.1ch digital HDMI over Cat.X cable transmission
- RS-232 Pass-Thru: Up to 115,200bps
- Easy installation
總覽
The SP-5004V2-60 1x4 HDMI Splitter over Single Cat.x with HDBaseT-Lite, 4K2K, IR, RS-232 & POC provides the most cost effective and advanced HDMI splitter solution on the market, by which the high definition video and high quality audio can be transmitted to 4 different locations without losing quality. SP-5004V2-60 supports all 3D formats and the true 4K 2K video!
With built-in RS-232 firmware update mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed. With the upmost 16 bit deep color video and high definition audio support, SP-5004V is suitable for high quality HDMI broadcasting, digital signage and education applications!
產品規格
Technical
-
HDMI Compliance
-
HDCP Compliance
-
DP compliance
-
USB compliance
-
Max. Data Rate
-
Max. Resolution
-
HDR
-
Latency
-
Audio Support
-
CEC control
-
IR Control
-
IR Frequency
-
EDID Selection
-
RS232 Control
-
ESD protection
-
POC
-
B。SDI Output Formats
-
B。HDMI Input Formats
-
B。SDI Speeds Supported
-
B。Video Sampling
-
B。Audio Sampling
-
B。Auto Switching
-
B。Cable Equalization
-
B。Eye-patten Measurements
-
B。Eye-patten Measurements
-
B。RP-198 pathological patterns
-
C。Cable (Belden 1694A) equalization ／ransmission
-
C。Fiber Extension
-
D。Control Interface
-
D。Included Accessories
Mechanical
-
Housing Design
-
Casing Style
-
Power Connection
-
Power Supply
-
Power Consumption
-
Operating Humidity
-
Operation temperature
-
Product Weight
-
Package Weight
-
Certifications
