- HDMI 2.0a compliant
- Supports 4K2K@60 4:4:4 8bits
- Supports High Dynamic Range (HDR)
- HDCP 2.2 and 1.4 compliant
- Wide frequency range: 25MHz~600MHz
- Video bandwidth: 18Gbps
- Supports default EDID and EDID learning from display
- Supports xvYCC, x.v.

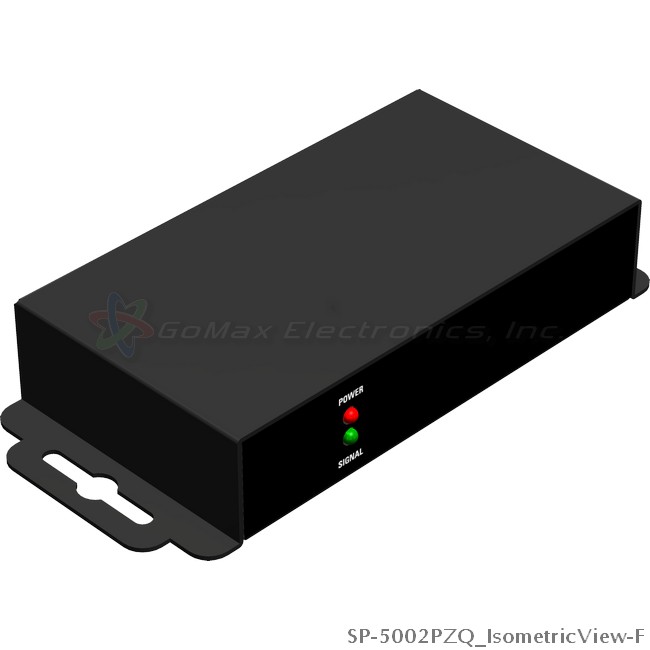

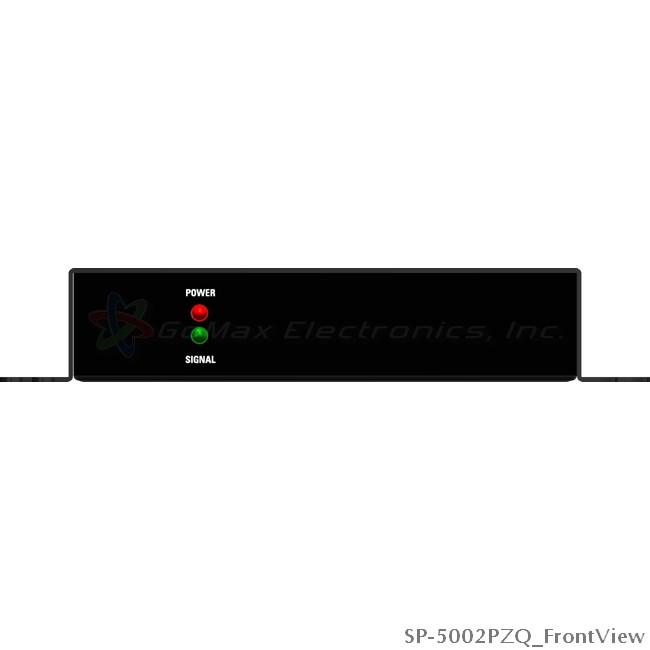

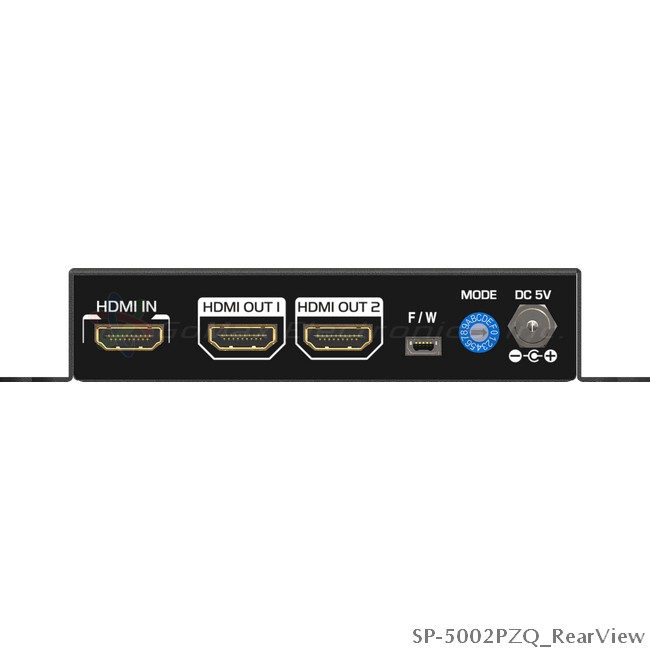

The SP-5002PZQ 1x2 HDMI 2.0a Splitter with Built-in & User Adjustable EDID Management provides the most cost effective and advanced HDMI splitter solution on the market, by which the high definition video and high quality audio can be transmitted to 4 different locations without losing quality. SP-5002PZQ supports all 3D formats and the true 4K2K video!
With built-in USB firmware update mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed. With the upmost HDR/4K2K@60 4:4:4 8bits and high definition audio support, SP-5002PZQ is suitable for high quality HDMI broadcasting, digital signage and education applications!
-
HDMI Compliance
-
2.0
-
HDCP Compliance
-
2.2/1.4
-
Max. Data Rate
-
18 Gbps
-
Max. Resolution
-
4K2K@60 (4:2:0—10bits)
4K2K@60 (4:4:4—8bits)
-
HDR
-
4:2:0|4:2:2|4:4:4—10 or 12bits
HDR10; HDR10+; Dolby Vision; HLG
-
Audio Support
-
Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio
-
CEC control
-
Pass through
-
EDID Selection
-
15 options
-
ESD protection
-
8 KV—Contact Discharge
15KV—Air Discharge
-
Housing Design
-
Metal
-
Casing Style
-
Wall Mountable
-
Power Connection
-
Interlocking Barrel
-
Power Supply
-
5V DC, 2A
-
Power Consumption
-
10 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
463g (0.95 lbs)
-
Package Weight
-
946g (2.08 lbs)
-
Certifications
-
CE, FCC, RoHS
